Modular Welding Table With Side Plates
Lemar Modular Welding Table with Side Plates is an efficient workbench system designed for welding, metal processing and assembly. Its modular structure and scalability are its core features, and it is equipped with side plates to enhance functionality and flexibility.
Whatsapp Phone Number
evasummer@lemarmetal.com
Products parameters
|
Features |
Cast Iron(Take gray cast iron as an example) |
Q355 |
|
Tensile strength |
lower(120-400 MPa) |
higher(≥355 MPa,actually achievable 470-630 MPa) |
|
Tenacity |
High brittleness and almost no plastic deformation capacity |
Good toughness, can withstand impact and dynamic load |
|
Hardness |
High(HB 150-300) |
Medium hardness(HB 130-180) |
|
Weldability |
Bad(Easy to crack) |
Excellent (suitable for welded structures) |
Products specification
our product

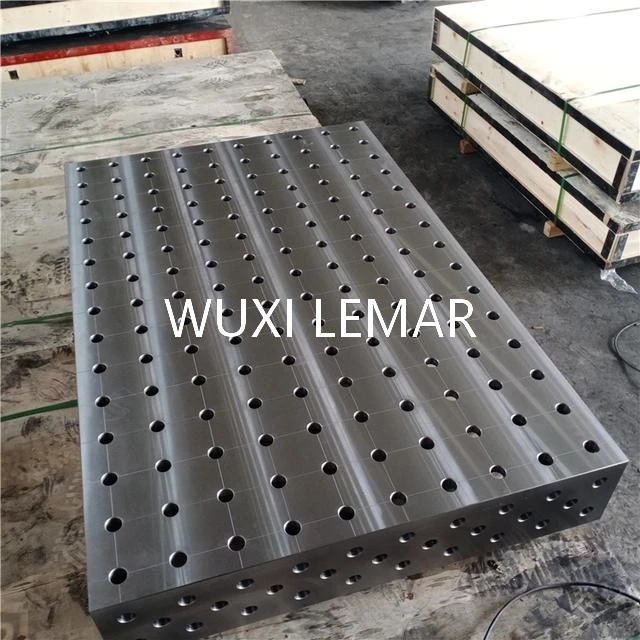

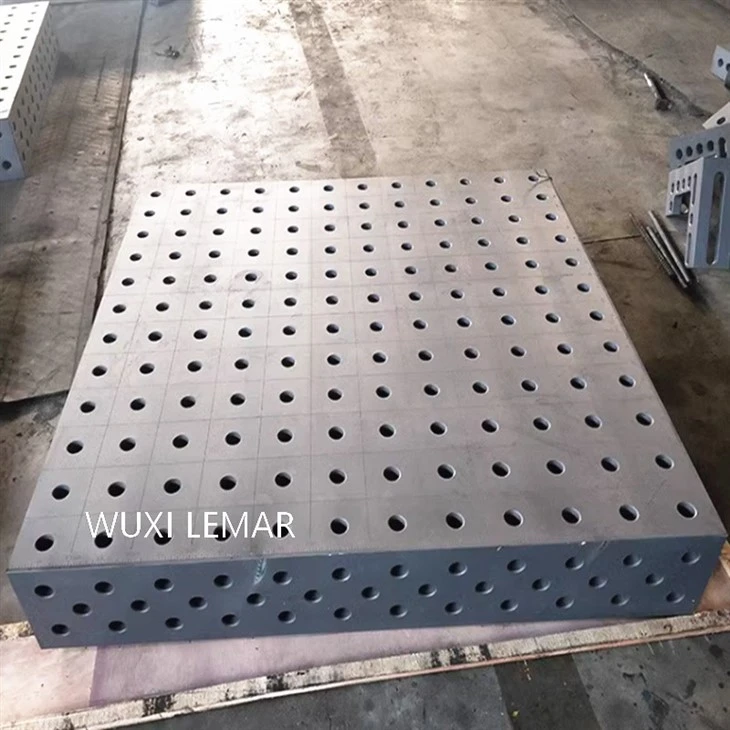

Modular Fixtures Welding Table With Side Plates
Core Features
(1) Modular design

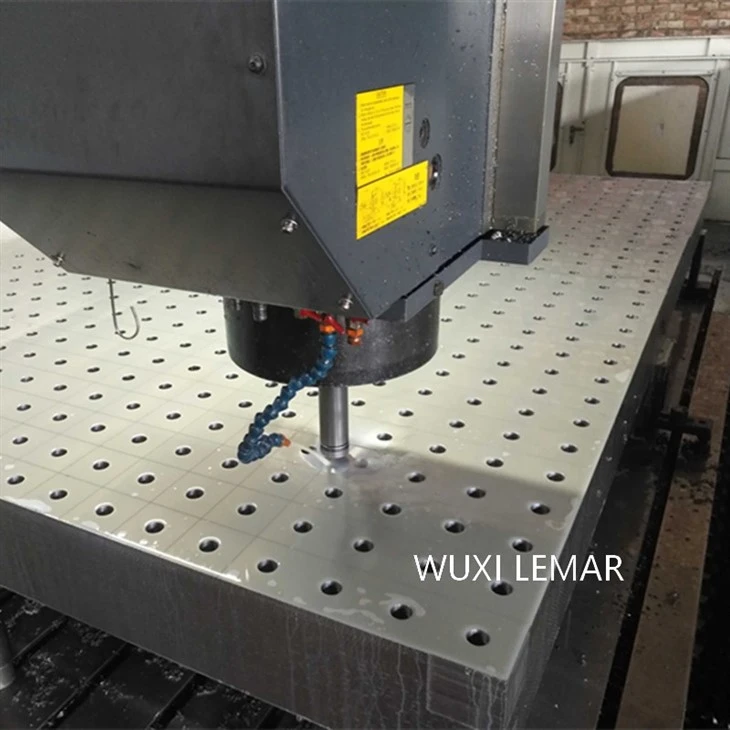

Standard hole array system: The tabletop is covered with positioning holes arranged at standard spacing (such as 28mm, 96mm, etc.), which is compatible with various fixtures, clamps and tools to achieve rapid positioning and fixing of workpieces.
Scalability: The working area can be expanded by splicing multiple tabletops, or accessories (such as brackets, rollers) can be added to meet the needs of different projects.
(2) Material and durability
Tabletop and side panels: Made of high-strength steel (such as S355J2C) or hot-rolled steel, with anti-rust treatment (such as galvanizing, powder coating), resistant to high temperature deformation and welding slag splash.

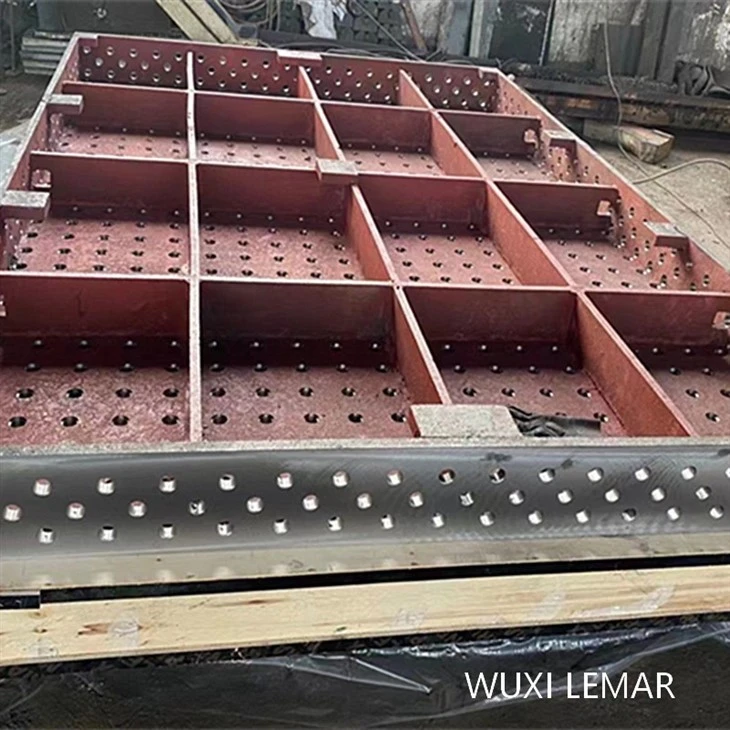

Frame structure: Heavy steel base to ensure stability, some models with adjustable feet to adapt to uneven ground.
Typical application scenarios And Purchasing
Typical application scenarios
Complex welding: When welding frame structures and pipes at multiple angles, the side panels provide additional fixing points.
Teaching and prototype development: The modular design is suitable for rapid configuration adjustment to meet teaching or R&D needs.
Automation integration: The side panels can be installed with a robot arm or wire feeder for semi-automatic welding stations.
Purchase considerations
Size and load: Select the table size according to the workpiece size (commonly 1m×2m), and the side panels need to match the load-bearing requirements.
Hole spacing standard: Ensure compatibility with existing fixtures (such as the 28mm popular in Europe or the 16mm system common in North America).
Modular Welding Table with Side Plates solves the pain point that traditional welding tables cannot be fixed at multiple angles through the combination of modular table tops + side plates.
It is particularly suitable for scenarios that require three-dimensional operations or limited space, and is one of the key equipment for improving efficiency in modern welding workshops.
