3D Modular Steel Welding Table
Product Description
Lemar 3D Modular Fixture Platform Steel Welding Table 800X1000 is a modular 3D welding workbench featuring the D28 heavy-duty hole system. With a standard size of 800mm (length) × 1000mm (width), it is specifically designed for precision welding of medium-sized workpieces, rapid construction of fixture tools, and flexible manufacturing systems. Its outstanding modular characteristics and heavy-duty positioning capabilities make it an ideal tooling solution for the automotive manufacturing, construction machinery, and mold industries.
Products Parameters
| Parameter | D16 Series | D28 Series |
| Application | Small precision parts, electronic assembly | Heavy-duty equipment, large structural parts |
| Load Capacity | Medium (≤2 tons) | Extreme (≥10 tons) |
| Flexibility | Optimal (dense small holes) | Focused on strength |
| Typical Industries | Automotive parts, laboratories | Shipbuilding, energy equipment |
| D28 mm | D16 mm | |||
| 800*1000*200 | 1500*1500*200 | 2000*5000*200 | 800*1000*100 | 1500*1500*100 |
| 800*1200*200 | 1500*2000*200 | 2500*4000*200 | 800*1200*100 | 1500*2000*100 |
| 1000*1000*200 | 1500*2500*200 | 3000*3000*200 | 1000*1000*100 | 1500*2500*100 |
| 1000*1200*200 | 1500*3000*200 | 3000*4000*200 | 1000*1200*100 | 1500*3000*100 |
| 1000*1500*200 | 1500*4000*200 | 1000*1500*100 | ||
| 1000*2000*200 | 2000*2000*200 | 1000*2000*100 | ||
| 1000*3000*200 | 2000*2500*200 | 1000*3000*100 | ||
| 1200*1200*200 | 2000*3000*200 | 1200*1200*100 | ||
| 1200*2400*200 | 2000*4000*200 | 1200*2400*100 | ||
product Specification
that's our Product

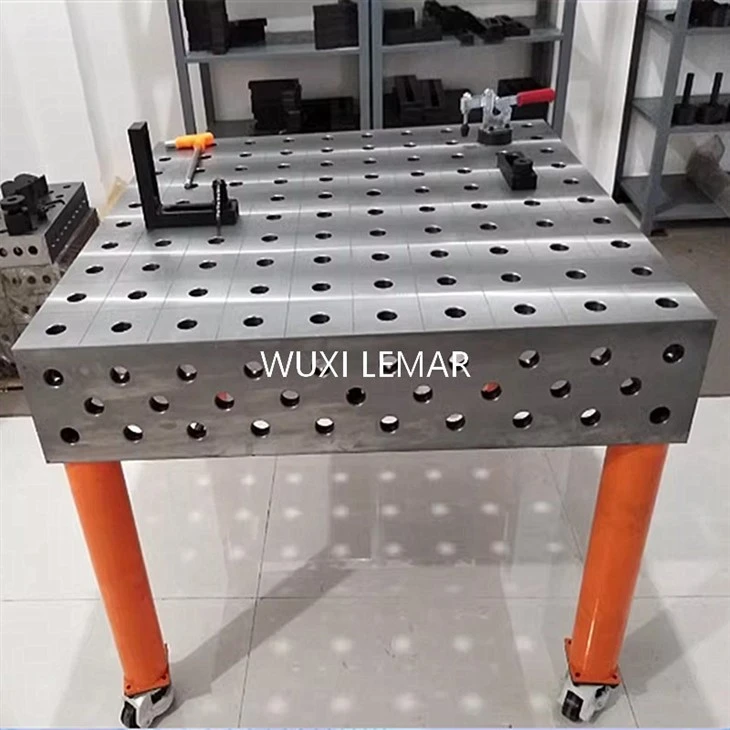

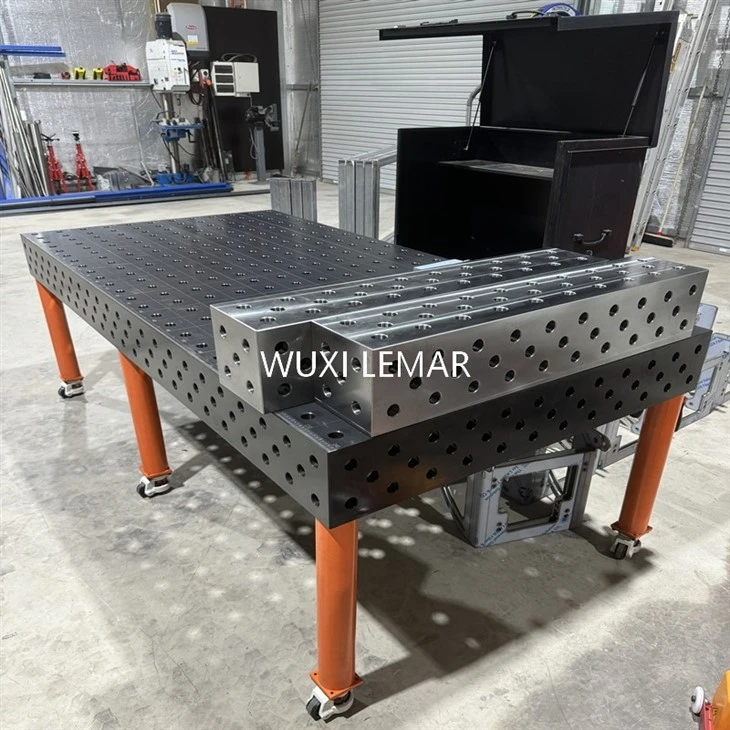

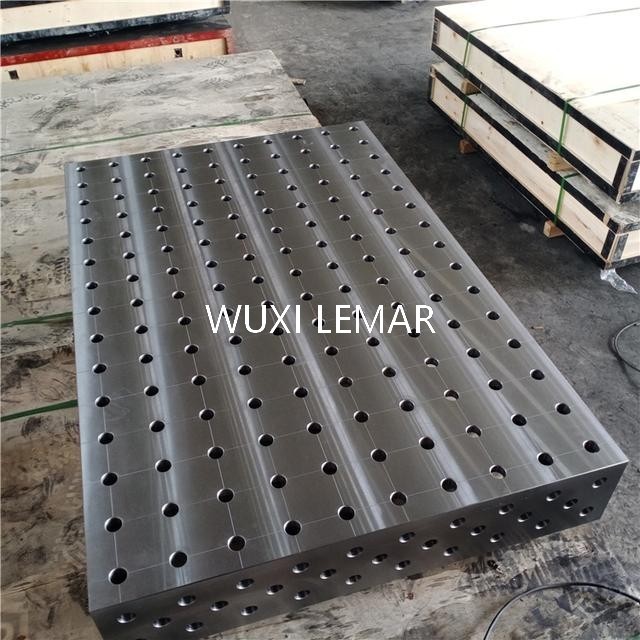

3D Modular Steel Welding Table
Modular design:
The entire platform adopts a standardized modular design, and various welding fixtures can be quickly built through different components.
It is easy to expand and reconfigure to adapt to the production needs of different products.
High-precision hole system (D28):
The surface of the workbench is covered with standard holes with a diameter of 28mm, and the hole pitch is usually 50mm or 100mm.
The hole position accuracy is high (usually within ±0.05mm) to ensure positioning accuracy.
Size specifications:
Tabletop size: 800mm (width) × 1000mm (length)
Thickness: Usually 100 - 150mm (depending on the manufacturer)
Material and structure:
The main body is made of high-strength alloy steel or cast iron.
The surface is heat-treated (quenching or carburizing) to improve wear resistance.
There is a reinforcing rib structure inside to ensure stability.
Purchase Considerations
Select an appropriate workbench size according to the workpiece size.
Confirm whether the hole system specification (D28) is compatible with the existing fixtures.
Consider the load-bearing capacity and accuracy requirements.
Evaluate the expandability and future needs.
3D Modular Fixture Platform Steel Welding Table 800X1000 is particularly suitable for production environments that require high-precision positioning and frequent replacement of tooling fixtures, and it is an important part of modern flexible manufacturing systems.
