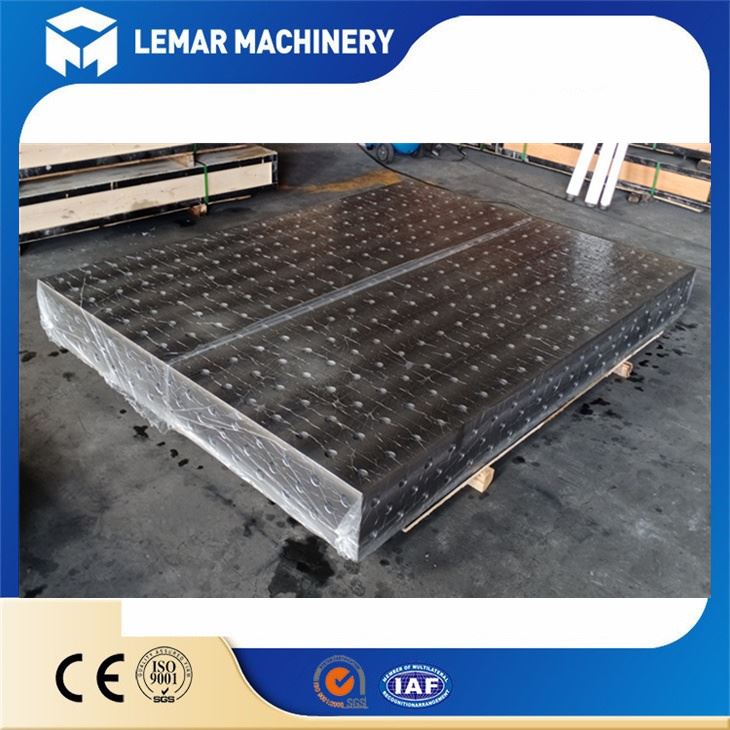

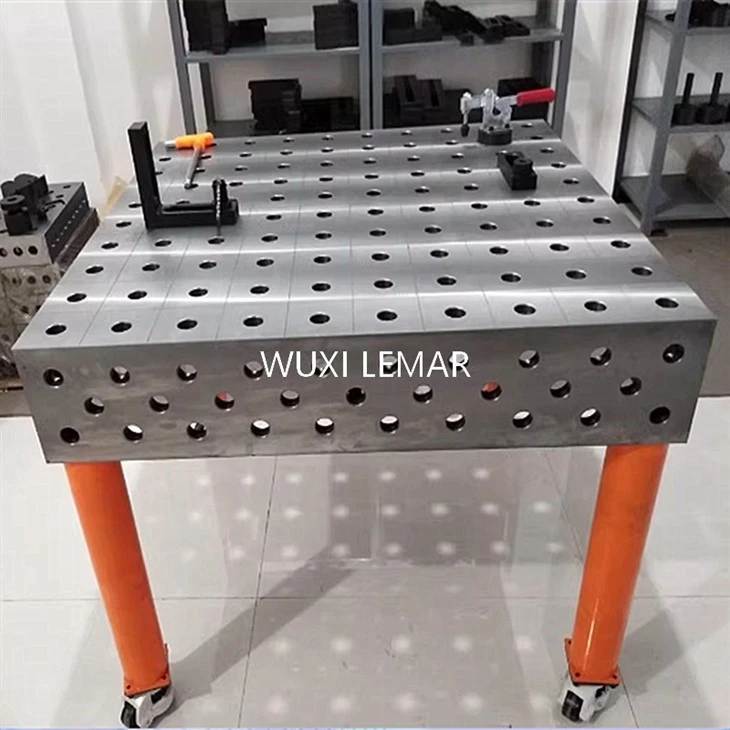

3D Welding Table Steel Platform With Modular Welding Clamps System
Product Description
Lemar 3D Welding Table Steel Platform With Modular Welding Clamps System D28 1000*3000*200 is a modular three - dimensional welding fixture platform adopting the D28 standard hole system. This product is specifically designed for welding large - sized workpieces and precision assembly. It has an extra - long working area (3 - meter length) and excellent structural stability, and is widely used in the welding fields of large - scale structural parts such as rail transit, construction machinery, and shipbuilding.
Products Parameters
product Specification
that's our Product
3D Welding Table Steel Platform With Modular Welding Clamps System
Structural Features
(1) Ultra-long Reinforced Structure
Adopts a box girder frame design to ensure flexural strength at a length of 3 meters.
Transverse stiffeners are added at the bottom to prevent platform deformation.
The 200mm thickened platform body provides ultra-high rigidity.

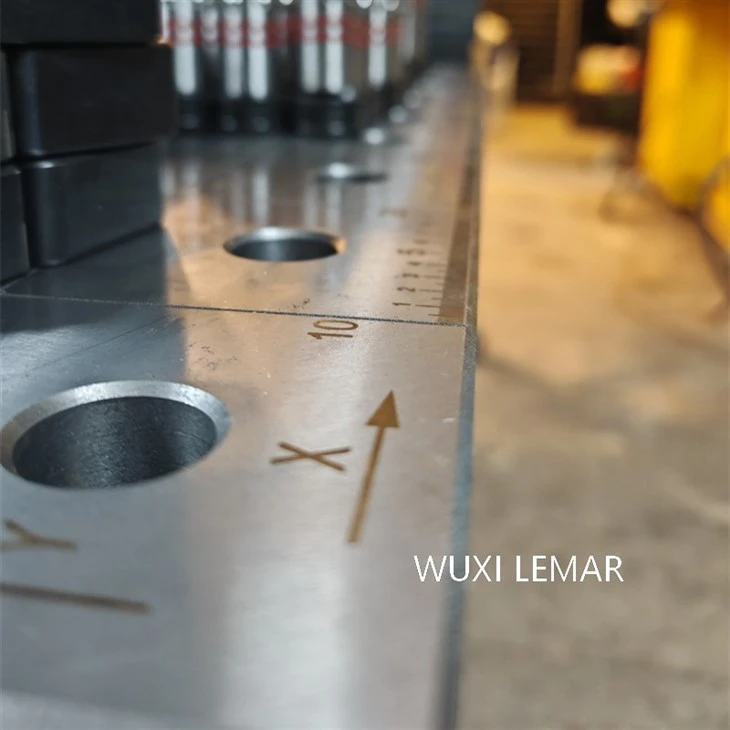

(2) D28 Heavy-duty Hole System
The standard hole diameter is φ28mm, compatible with heavy-duty fixtures.
The holes are arranged at an equal distance of 100mm, supporting large-span positioning.
The hole walls are hardened to extend the service life.

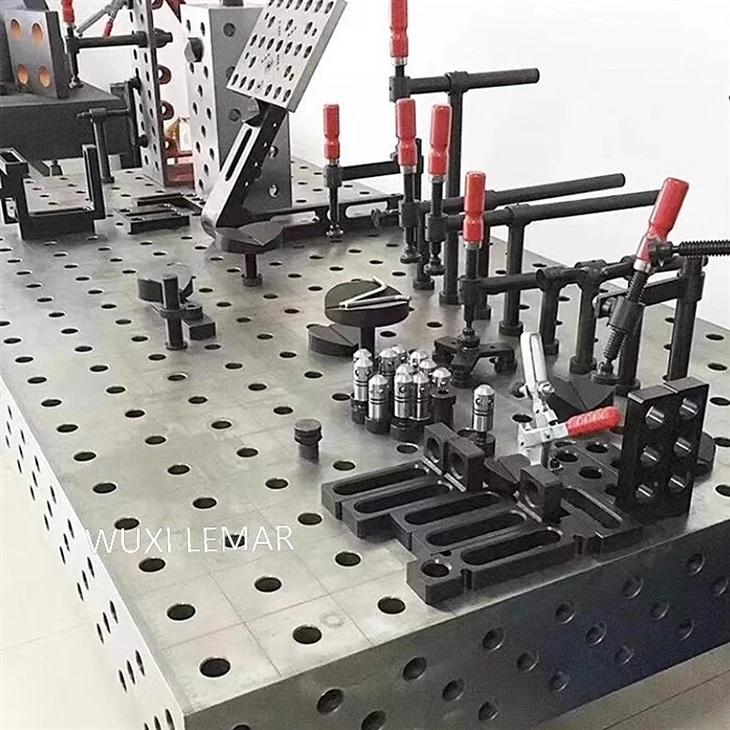

(3) Modular Three-dimensional Expansion
Standard connection interfaces are provided on the sides.
Multiple units can be longitudinally spliced to an infinite length.
Supports the construction of three-dimensional multi-layer tooling.
Selection Suggestions
Recommended Application Scenarios
Welding of large structural parts with a length exceeding 2.5 meters
Precision assembly of heavy workpieces (single piece > 2 tons)
Batch production requiring multi - station collaborative operations
Alternative Suggestions
For workpieces < 2 meters: It is recommended to choose the 1500×2000mm specification.
For ultra - high - precision requirements: It is recommended to select a cast iron platform.
For frequent model changes: It is recommended to add a quick die - change system.
Enhance Your Welding Capabilities With Our 3D Welding Table Steel Platform With Modular Welding Clamps System D28 !
