Product Description

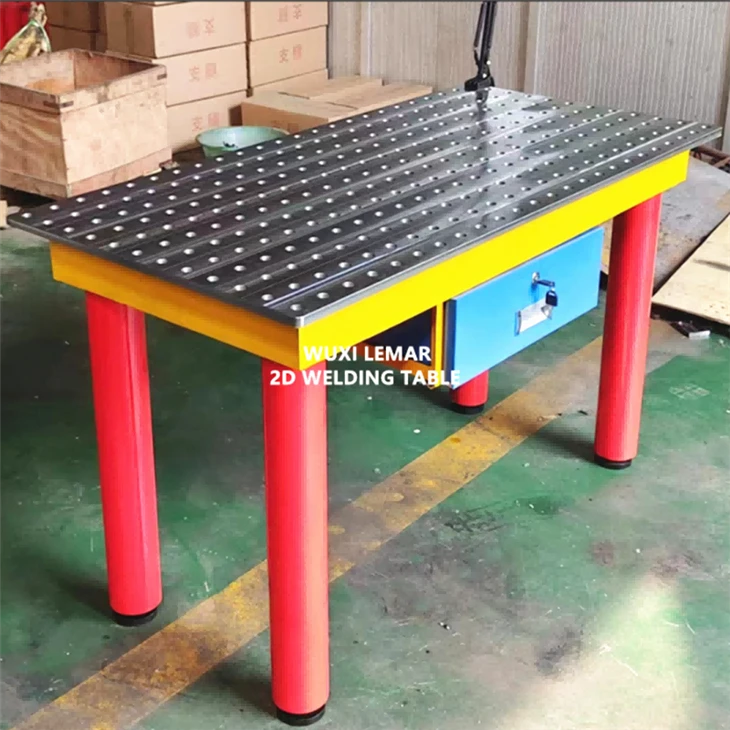

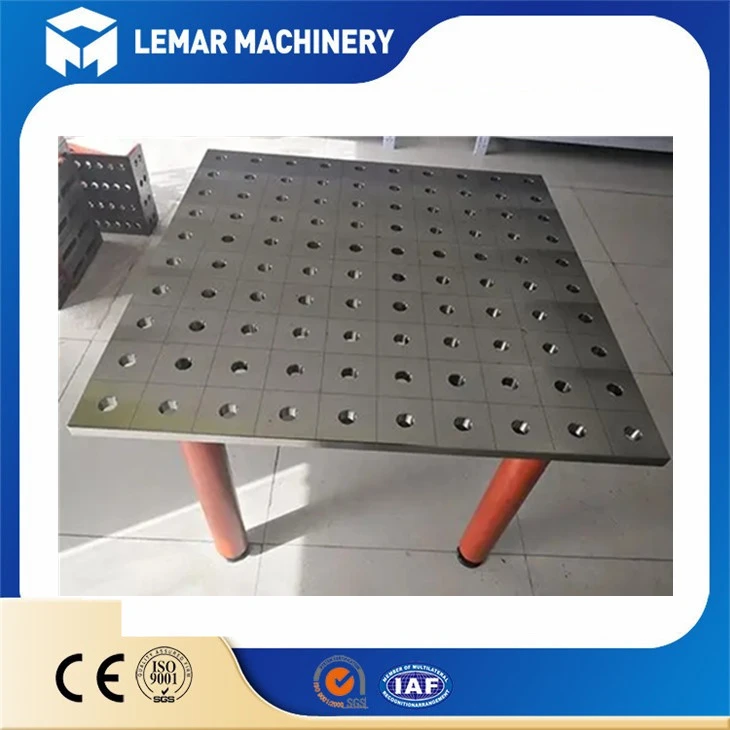

2D 28 Series Welding Workbench is a system platform based on a 28mm reference hole spacing. Its tabletop is covered with positioning holes, each 28mm in diameter, arranged in a standard grid. Through these holes, various standardized and modular fixture components (such as locating pins, clamps, support blocks, angle irons, etc.) can be combined to quickly and accurately construct special fixtures for fixing and positioning welded workpieces.
services we offer
Product repair service
scheduled maintenance service
installation instruction service
programming instruction
Products Advantages
Core Advantages
Extremely high flexibility:
It only requires disassembling the original modular components and then reconfiguring them like "building blocks" according to the 3D digital model of the new workpiece to quickly construct a new fixture. This greatly shortens the production preparation time.
High repeatability and consistency:
Since all positioning is based on a precise grid hole system, the position of the workpiece during each clamping is completely consistent. This ensures that the dimensions of mass-produced products are highly uniform, and the welding quality is stable and reliable.
Significant efficiency improvement:
2D 28 Series Welding Workbench can realize simultaneous clamping and welding of multiple workpieces and multiple stations, optimizing the production rhythm.
Products Parameters
| 28 SERIES | 16 SERIES | ||
| SIZE MM | WEIGHT KG | SIZE MM | WEIGHT KG |
| 1000*1000*200 | 345 | 1000*500*100 | 82 |
| 1200*1200*200 | 455 | 1000*1000*100 | 156 |
| 1500*1000*200 | 480 | 1200*800*100 | 142 |
| 1500*1500*200 | 725 | 1200*1200*100 | 210 |
| 2000*1000*200 | 655 | 1500*1000*100 | 655 |
| 2400*1200*200 | 870 | 1500*1500*100 | 232 |
| 3000*1500*200 | 1365 | 2000*1000*100 | 297 |
| 4000*2000*200 | 2375 | 2400*1200*100 | 453 |
Weight is affected by parts and materials. The data in the table about weight is for reference only!
product Application
1.Automobile manufacturing: Body frames, chassis, suspension systems, exhaust pipes, etc.
2.Construction machinery: Excavator booms, buckets, crane jibs, etc.
3.Rail transit: Car body frames and bogie components of rolling stock.
4.Agricultural machinery: Metal structural parts of harvesters, tractors, etc.
5.Steel structures: Complex trusses, brackets, etc.
6.General equipment manufacturing: Any metal frames and box structures that require welding.
Our Service Processes
Our free service hotline:008615995269947
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receive
5
>>
After-sale Services
6
2D 28 Series Welding Workbench is a typical representative of modern manufacturing moving towards flexibility, lean production, and standardization. It is not just a workbench, but a complete welding tooling solution. Through its modular and standardized design, it helps enterprises produce welding products of higher quality and better consistency at a lower cost and a faster speed.
