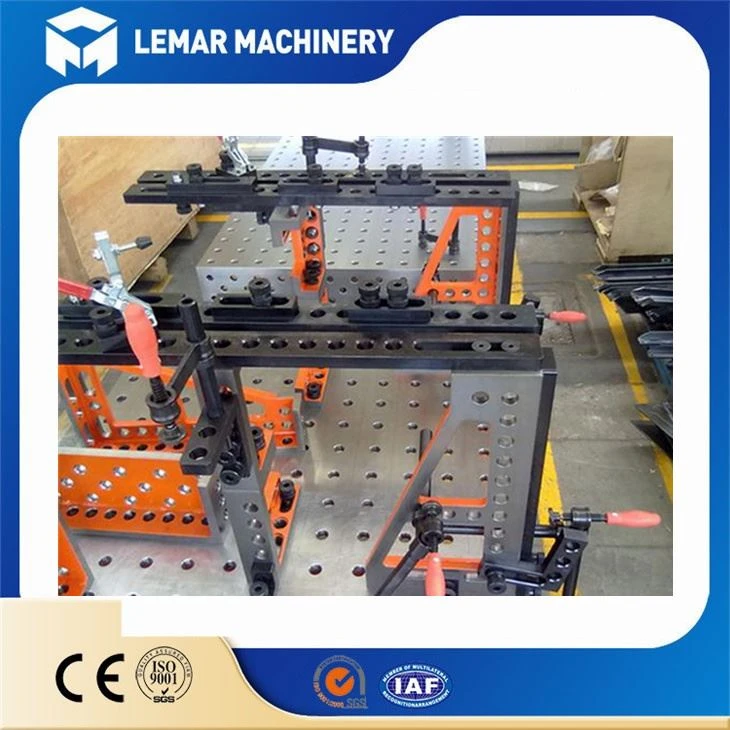

Modular Fixture Welding Tables

Product Description

Lemar modular fixture welding tables is a modular and flexible tooling system designed specifically for manufacturing processes such as welding, assembly, and inspection. Its core components consist of a flat plate with a standard hole array (fixture table) and matching jigs. Through precise positioning and clamping in three - dimensional space, it ensures that workpieces maintain stability and repeatability accuracy during the processing.

Products Parameters

2D welding table

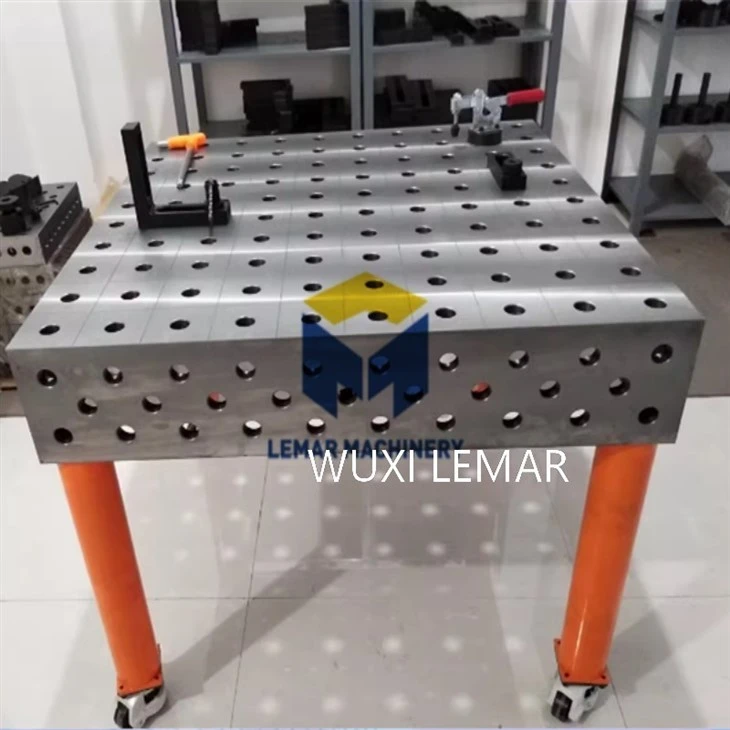

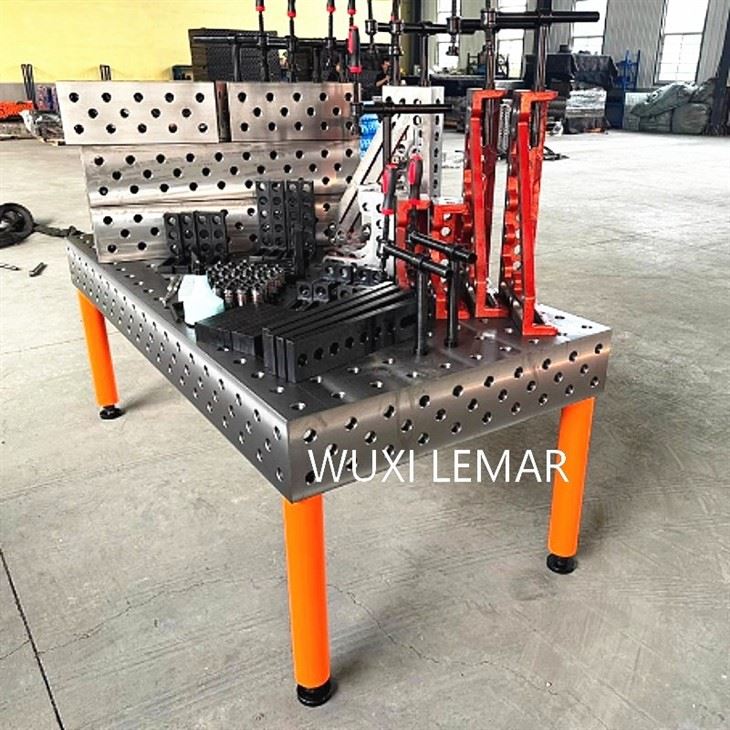

3D welding table

Welding Jig Table

product Specification

that's our Product

Modular Fixture Welding Tables

Core Components
Fixture Table

Material: Modular Fixture Welding Tables usually made of high-strength steel (such as ductile iron or alloy steel), heat-treated to resist deformation and wear.

Hole Array Design: The surface is covered with positioning holes at standardized intervals (such as 28mm, 16mm grids), and threaded bushings or quick-locking mechanisms can be inserted into the holes.

Dimensions: Ranging from small worktops (500×500mm) to large workbenches (2000×4000mm), and multiple units can be spliced and expanded.

Jigs

Locating pins/blocks: Used for positioning the reference surface of the workpiece.

Clamps (mechanical/hydraulic/magnetic): Such as toggle clamps, cylinder clamps.

Angle adjusters: Enabling complex-angle welding.

Profile jigs: Matching the contours of specific workpieces.

Modularity: The jigs can be quickly disassembled, assembled, and reorganized to adapt to different product models.

Through Modular Fixture Welding Tables, manufacturers can significantly improve welding efficiency (according to case statistics, the tooling time can be shortened by 30%), and at the same time reduce their dependence on skilled workers. It is especially suitable for production environments with high mix and high complexity.
