Product Name: Modular Welding Table
Size: 1000mm × 1500mm (Width × Length)
Material: High-Strength Structural Steel
Surface Treatment: Nitrided
Product Overview

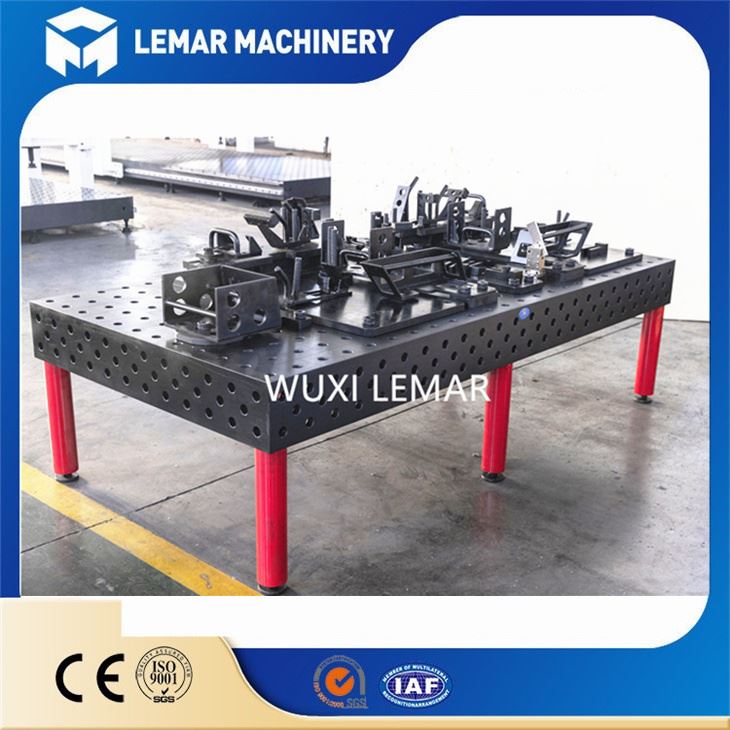

This 3D Welding Table is a professional-grade, modular fixturing platform designed for precision welding, assembly, and inspection applications. Unlike traditional flat welding tables, this 3D system features precision-machined holes on the top surface and all four side faces, enabling true three-dimensional clamping and positioning. The nitrided surface provides exceptional hardness (HV 800–1200), weld spatter resistance, and corrosion protection. With a generous 1000×1500mm working area, this table is the ideal choice for fabrication shops, maintenance departments, vocational schools, and robotic welding cells that require accuracy, durability, and flexibility.
Products Parameters
product Display
Products Application
Application Range
General Metal Fabrication: Welding and assembly of gates, railings, frames, brackets, cabinets, and structural supports. The 1000×1500mm size is ideal for most common fabrication projects.
Heavy-Duty Fabrication (D28 System): Construction equipment components, machinery frames, agricultural implements, and industrial structures requiring high clamping forces.
Precision & Light Fabrication (D16 System): Small to medium parts, exhaust systems, motorcycle frames, furniture, and components requiring fine positioning.
Robotic Welding Cells: The precision flatness (≤0.10mm/m²) and hole accuracy (±0.05mm) make this table suitable for automated welding systems. The 3D design allows for complex fixturing required by robots.
Maintenance & Repair Shops: Fixturing for equipment repair, part straightening, rework operations, and one-off custom parts.
Assembly & Inspection Stations: Use as a precision assembly table for mechanical or electrical components, or as a CMM inspection base for quality control.
Vocational Education & Training: Welding schools and technical colleges benefit from the modular fixturing system, which teaches proper workholding techniques.
Prototype Development: Rapid fixturing for new product designs where setups change frequently. No need for expensive dedicated jigs.
Shipbuilding & Offshore (D28 System): Fabrication of marine components, pipe spools, and smaller structural assemblies.
Automotive & Truck Manufacturing (D28 System): Heavy truck frame sub-assemblies, trailer components, and specialized vehicle parts.
Products Details
Company Certification
Customer Feedback
our casey
Let us once again express our gratitude to our customers for their support.
Products Packaging
Our Packaging
FAQ
tIPS FOR REFERENCE
Answering the following questions can roughly help you understand our products.
Q:1.What makes this a "3D" welding table?
A:A 3D welding table features precision holes on the top surface and all four side faces. This allows you to clamp workpieces vertically, horizontally, or at angles directly to the sides of the table, not just the top. This five-side access enables true three-dimensional fixturing for complex parts like frames, roll cages, and structural assemblies.
Q:2.What is the difference between D16 and D28 systems?
A: D16 and D28 are two separate, non-interchangeable systems. D16 uses Φ16mm holes on a 50mm grid - ideal for general fabrication and precision work. D28 uses Φ28mm holes on a 100mm grid - designed for heavy-duty applications. You choose one system when ordering. They cannot be mixed on the same table.
Q:3.Can I weld directly on the table surface?
A: Yes, you can weld on the table, but always weld on the workpiece itself, not directly on the table surface. Striking an arc directly on the table will damage the nitrided layer. The table is a fixturing platform - it holds your workpiece while you weld the workpiece. Use a magnetic ground clamp on the table edge for grounding.
Q:4.Is the 1000×1500mm size large enough for my projects?
A: 1000×1500mm (1.5 square meters) is the most popular size for general fabrication. It comfortably accommodates gates, railings, frames, machinery components, and automotive parts. For larger workpieces, multiple tables of the same system can be joined using alignment pins. For smaller workshops, this size offers a good balance between working area and footprint.
