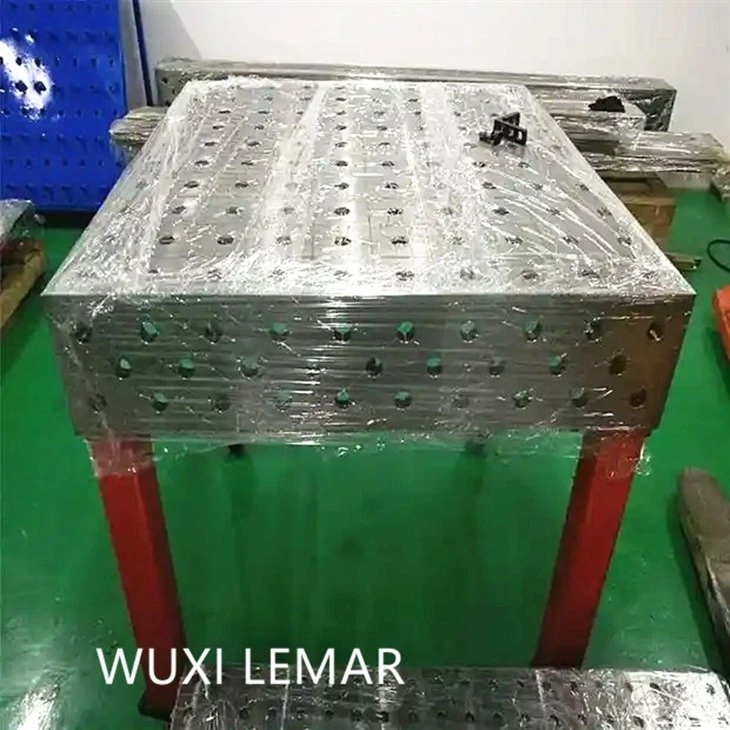

3D Welding Fixture Work Platform
3D Welding Fixture Work Platform is a modular, reconfigurable tooling system designed for manufacturing processes such as welding, assembly, and inspection. It uses standardized components (such as hole systems, positioning blocks, and clamping mechanisms) to rapidly construct three-dimensional fixture structures, significantly improving tooling design flexibility and production efficiency.
Whatsapp Phone Number
Evasummer@lemarmetal.com
Products parameters
Products Specification
product key technologies
Core Features
Modular Design:
All components can be freely disassembled and reassembled to accommodate workpieces of varying shapes and sizes, reducing the cost of specialized fixtures.
High Precision:
Hole positioning accuracy reaches ±0.05mm, ensuring consistent weld assembly (e.g., automotive chassis, aerospace components).
Quick Changeover:
When switching between products, only component positioning is required, eliminating the need to remanufacture the entire fixture.
Stable Rigidity:
The material resists thermal deformation and can withstand the high temperatures and mechanical stresses of welding, minimizing machining errors.
Application Scenarios
Small-batch production of multiple products:
E.g., prototype development and customized welding (e.g., construction machinery, rail transportation).
Complex Structural Welding:
Workpieces requiring multi-angle positioning (e.g., pipe frames, special-shaped metal parts).
Automated Welding Integration:
Combined with robotic welding cells, it functions as a flexible fixture system.
3D Welding Fixture Work Platform, through its modular design, addresses the pain point of poor tooling adaptability in the manufacturing industry, making it particularly well-suited for the demands of modern flexible manufacturing. Its core value lies in shortening tooling setup time, reducing fixture inventory, and improving weld quality consistency.
