Product Description

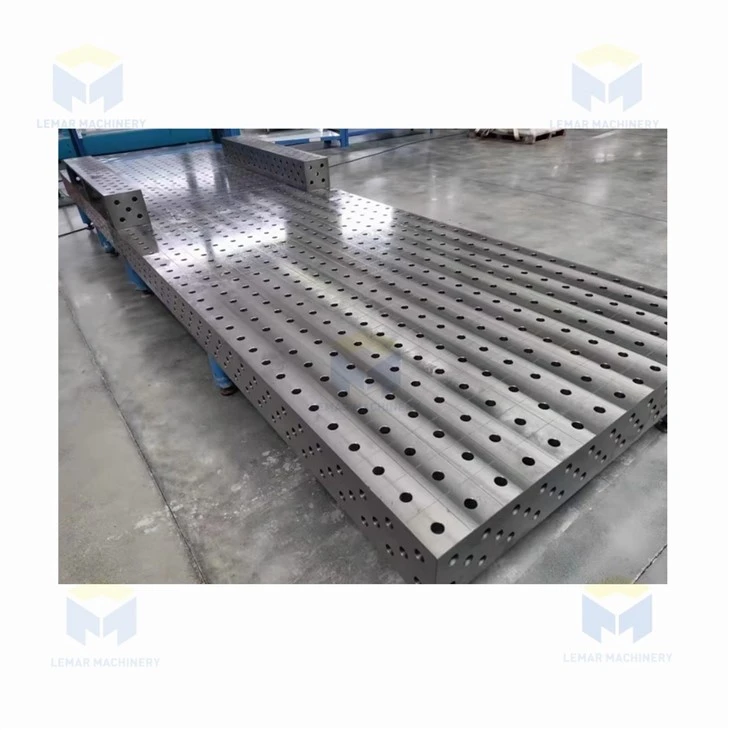

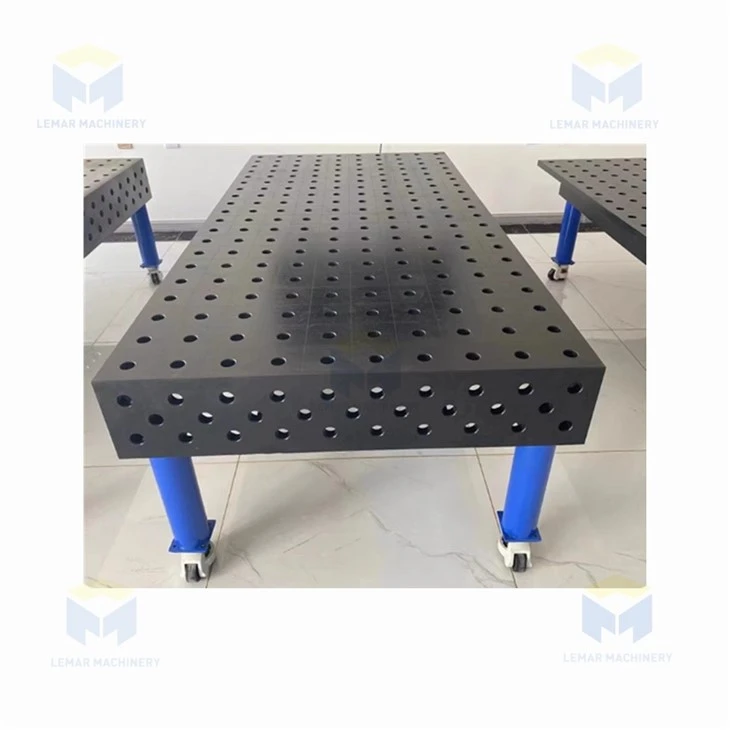

Cast iron welding fixture table's unique porous design allows users to freely install various fixtures, positioners and tooling according to their needs, so as to achieve rapid positioning and clamping of the workpiece, greatly improving welding efficiency and accuracy.
Products Parameters
| 28 SERIES | 16 SERIES | ||
| SIZE MM | WEIGHT KG | SIZE MM | WEIGHT KG |
| 1000*1000*200 | 345 | 1000*500*100 | 82 |
| 1200*1200*200 | 455 | 1000*1000*100 | 156 |
| 1500*1000*200 | 480 | 1200*800*100 | 142 |
| 1500*1500*200 | 725 | 1200*1200*100 | 210 |
| 2000*1000*200 | 655 | 1500*1000*100 | 655 |
| 2400*1200*200 | 870 | 1500*1500*100 | 232 |
| 3000*1500*200 | 1365 | 2000*1000*100 | 297 |
| 4000*2000*200 | 2375 | 2400*1200*100 | 453 |
Weight is affected by parts and materials. The data in the table about weight is for reference only!
Production line
Products Features
First of all, cast iron welding fixture table adopts a modular design and is composed of multiple standard modules. These modules can be quickly and easily combined and adjusted according to actual production needs. This design makes the platform highly adaptable to different products and production needs, to meet the welding needs of various sizes, shapes and complexity of products .
Secondly, the workbench of cast iron welding fixture table is usually in the form of a perforated grid plate, the aperture has D28 and D16 specifications, and these holes are used for installing various fixtures, positioners and tooling. The precise measuring system allows the operator to position and adjust the welding parts in multi-dimensional space, ensuring the accuracy and stability of the welding .
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
One-stop Welding machine Factory in China
Send your inquiry about welding machine to us and experience the transformative power it can have on your business or brand. With our solutions, you can elevate your products, captivate your customers, and unlock new opportunities for growth and success in the indsty.
Hot Tags: cast iron welding fixture table, China, manufacturers, factory, customized
