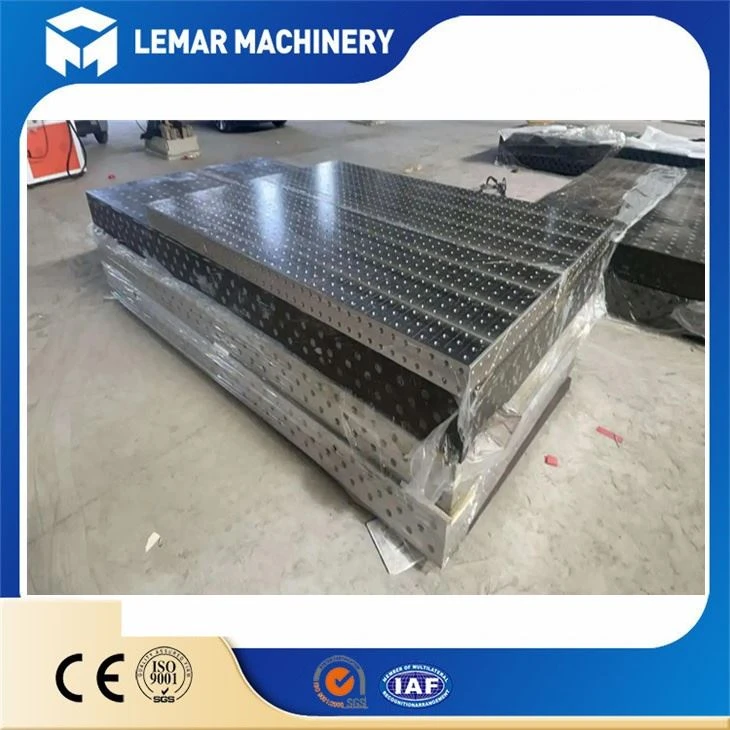

Fabrication Welding Fixture Table 3D

Platform Base

Material: Usually high-strength cast iron or high-quality steel. Cast iron platforms have better shock absorption and stability, which can effectively reduce welding stress deformation.

Structure: There are reinforcing ribs inside to ensure that the platform can maintain a very high flatness after bearing weight.

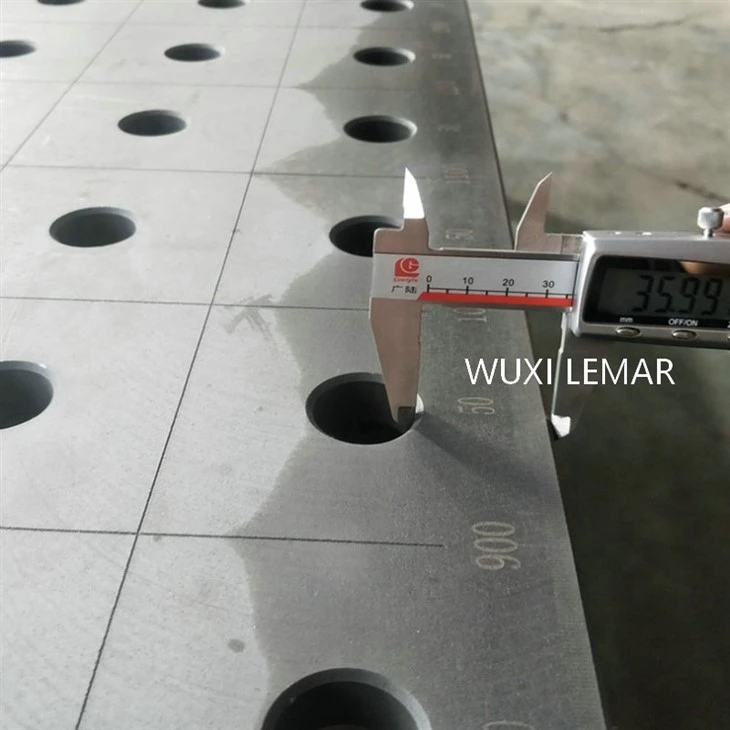

Hole System: The working surface and four sides of Fabrication Welding Fixture Table 3D are covered with grid holes arranged at standard intervals (such as 100mm x 100mm, or more precise 50mm x 50mm). These holes are countersunk holes for installing fixing elements.

Modular Functional Components (Core)

Positioning Elements: Such as positioning pins, positioning stoppers, V-blocks, angle rulers, etc. They are used to determine the accurate position of the workpiece in space.

Clamping Elements: Such as quick clamps, spiral compactors, toggle clamps, etc. They are used to firmly fix the workpiece in the positioned position.

Supporting Elements: Such as support blocks of various heights, gaskets, U-shaped square boxes, etc. They are used to support the workpiece from the bottom or side to prevent it from sinking or deforming due to gravity or welding thermal stress.

Connecting Elements: Special hexagon socket bolts, step blocks, T-nuts, etc., which are used to firmly lock all functional elements on the grid holes of the platform.
