Source Production 3D Welding Table

A complete Source Production 3D Welding Table system usually includes:
1. Welding table body:

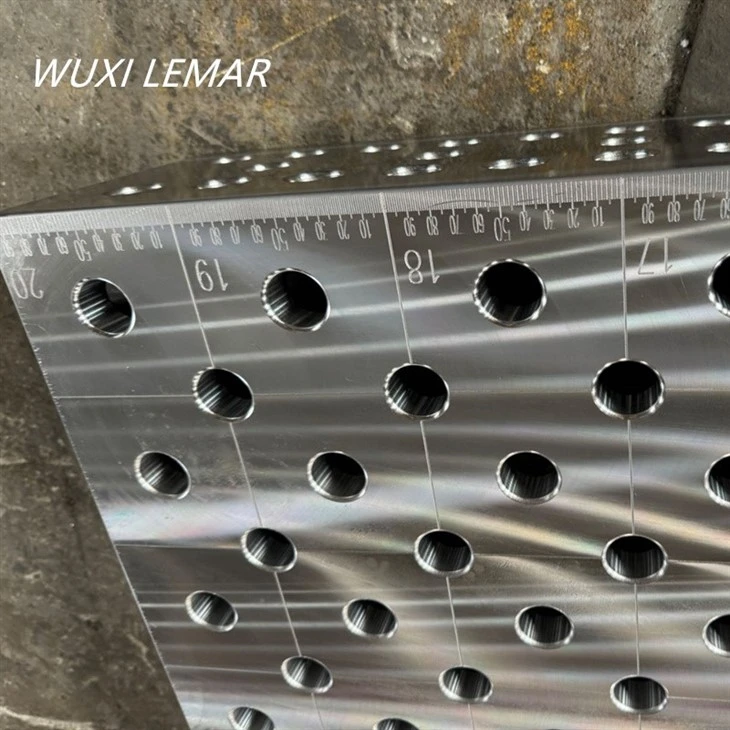

◦ Tabletop: Made of high-strength steel, undergo precision machining and heat treatment to ensure extremely high flatness, straightness and dimensional stability, and can resist welding stress and thermal deformation.

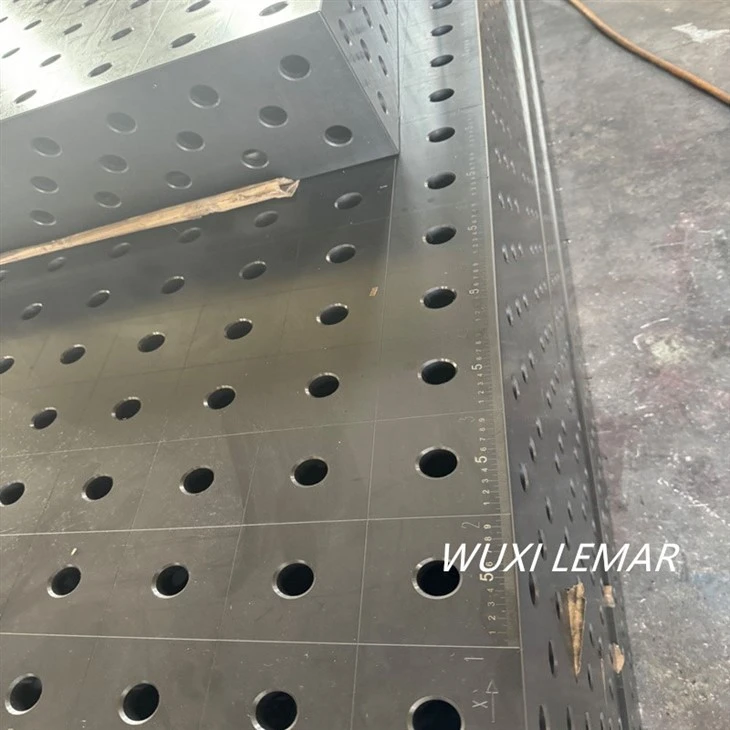

◦ Grid holes: The standard hole array has a spacing of 28mm x 28mm or 100mm x 100mm, with very small aperture tolerance, which is the precision foundation of the entire system.
◦ Structure: Usually a solid box-type structure with a workbench frame or base, and sometimes a dust suction or smoke exhaust system can be integrated inside.
2. Modular fixture components: This is the soul of the system.
◦ Locating pins/blocks: Used to determine the reference position of the workpiece.
◦ Supports: Available in various heights and types, used to support workpieces, some with fine-tuning functions.
◦ Clamps: Firmly clamp the workpiece on the tabletop or support from different angles manually, pneumatically or hydraulically.
◦ Angle devices: Used to quickly set common angles such as 45° and 90°.
◦ The bases of all these components are designed to be accurately inserted into the grid holes of the tabletop and quickly locked with a simple wedge pin or locking pin.
