3D Adjustable Welding Flexible Workstation
3D Adjustable Welding Flexible Workstation integrates a precision 3D welding platform and a quickly reconfigurable positioning and clamping system, and is often combined with other auxiliary equipment (such as welding power sources, positioners, dust removal systems, etc.) to form a complete and highly flexible welding work cell. Its core idea is to provide a "universal" clamping solution that can quickly adapt to the welding needs of different workpieces by adjusting standardized components, thereby achieving high-precision and high-efficiency production of multi-variety, small-batch products.
Products parameters
Products Description

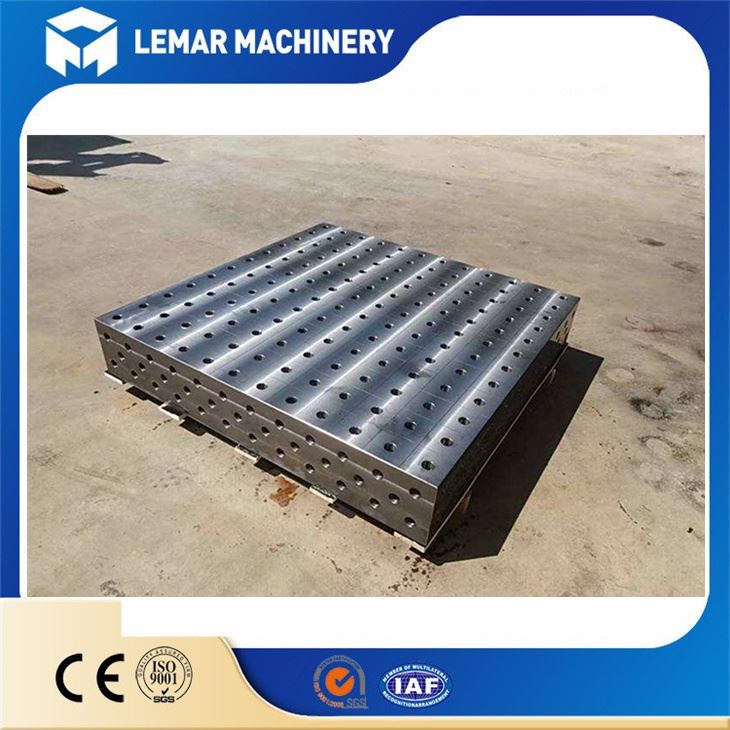

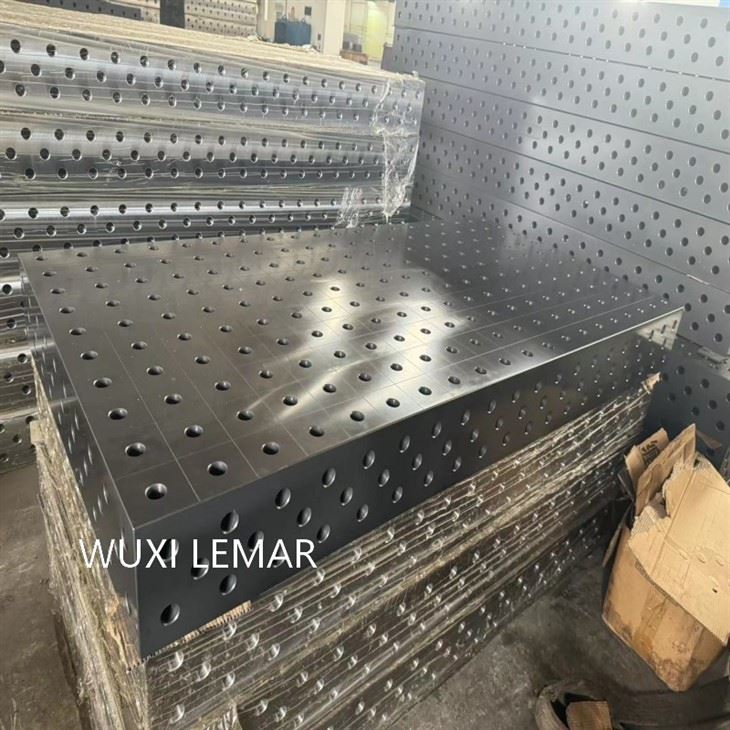

1. Main frame and precision platform:
◦ A platform base with extremely high flatness, rigidity, and strength.
◦ The platform surface is covered with standard grid holes (such as Φ28mm hole system) precisely arranged in an orthogonal or diagonal manner.

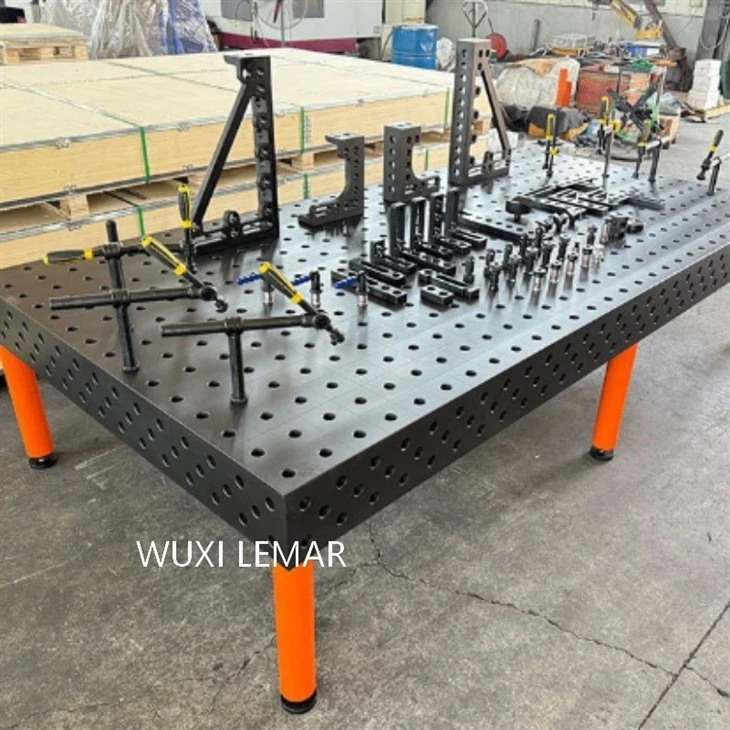

2. 3D flexible tooling system:
◦ This is the heart of 3D Adjustable Welding Flexible Workstation. It includes a complete set of standardized accessories, such as:
■ Positioning elements: positioning pins, positioning stoppers, V-shaped blocks, etc.
■ Clamping elements: quick clamps, spiral pressers, lever-type clamps, etc.
■ Supporting and extending elements: universal columns, supporting angle bars, angle modules, L-shaped plates, etc. (These are the key to achieving "3D" adjustment).
3. Auxiliary systems (optional, but can greatly improve efficiency):
◦ Welding positioner: Install the platform on one or two positioners to realize 360° rotation of the workpiece in space, so that the weld seam is always in the most ideal "ship position" for welding, which greatly improves quality and efficiency.
◦ Welding robot: The workstation serves as the working benchmark for the robot, and the robot program can be linked with the tooling settings to realize automated welding.
◦ Dust removal system: Integrate smoke capture devices to ensure the working environment.
◦ Tool storage system: Cabinets or shelves specially used for storing and managing a large number of flexible tooling accessories.
• It is a strategic investment, not a simple tool purchase. Its initial input will yield substantial returns through long-term savings in tooling costs, improved efficiency, and guaranteed quality.
• It is the core equipment for enterprises to build flexible manufacturing capabilities. It can help enterprises quickly respond to customer needs in the fierce market competition and achieve efficient, high-quality, and diversified production.
• Choosing such a workstation means choosing an advanced, sustainable, and future-oriented production model.
