Flexible Welding Fixture System

Product preview

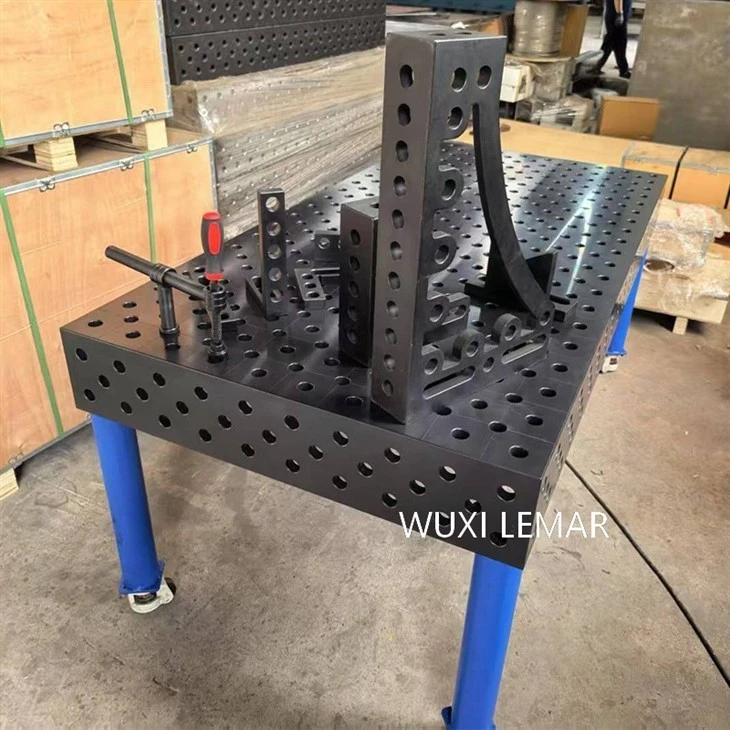

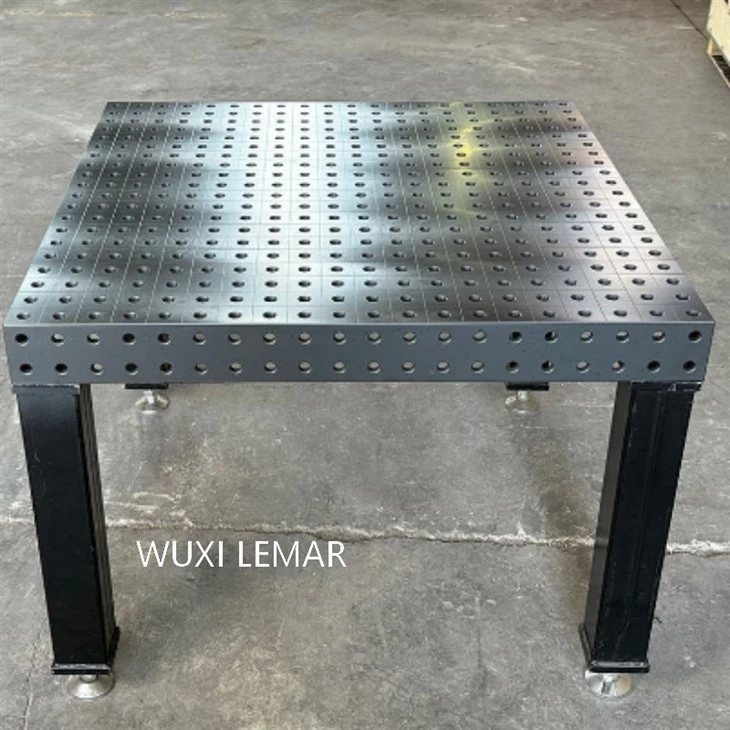

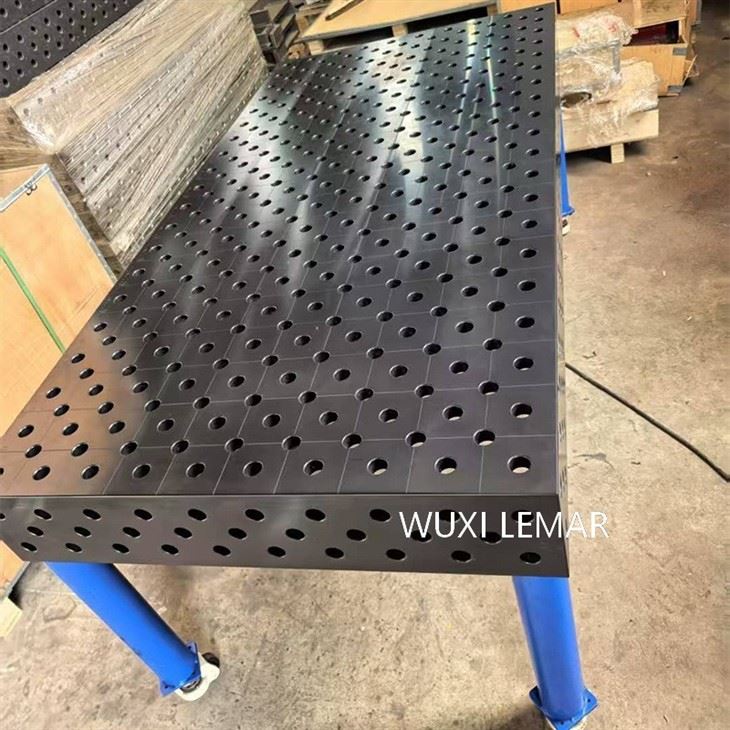

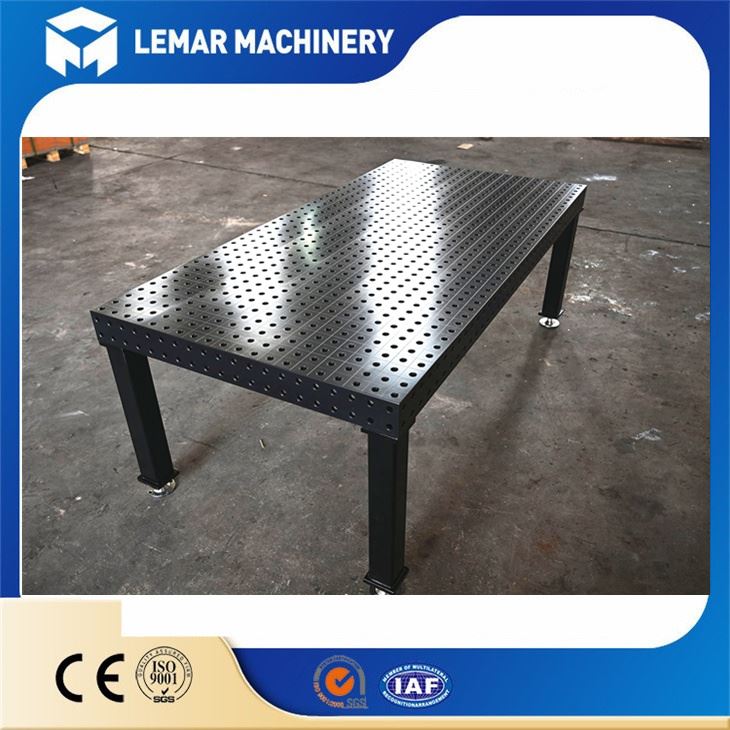

Flexible welding fixture system is a type of fixture device that can be quickly adjusted or reconfigured to accommodate welding of workpieces of different sizes and shapes. Unlike traditional dedicated fixtures that follow a "one-to-one" principle (one fixture for one type of workpiece), it is a "one-to-many" system.

Its core goal is: on the premise of ensuring welding accuracy and quality, to minimize the fixture adjustment and preparation time when changing products, thereby improving production efficiency and the ability to respond to market changes.

Products parameters

table details

Products Description

Typical application scenarios

Construction machinery: structural components such as excavator booms and dippers, with many varieties and small batches.

Automobile manufacturing: body-in-white sub-assemblies, sub-frames, seat frames, etc.

Rail transit: internal metal structural components of subway and high-speed rail car bodies.

Aerospace: complex components such as aircraft doors and brackets.

Heavy equipment: large frames, boxes, etc.

Household appliances and furniture: metal frames, brackets, etc.

Flexible welding fixture system is a key tooling technology for the transformation of modern manufacturing towards intelligence and flexibility. Through the design concepts of standardization, modularization, and combination, it addresses the pain point of traditional welding fixtures being too rigid and unable to adapt to rapidly changing production needs.
