D28 Steel 3D Welding Table

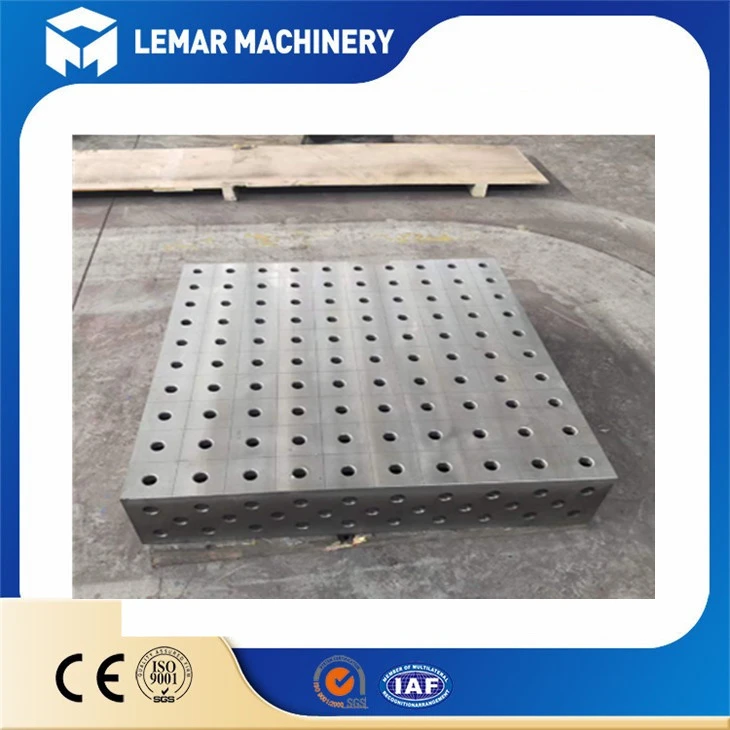

D28 Steel 3D Welding Table is a platform made of high-quality steel (usually Q235 or low-carbon steel with higher strength). Its working surface is covered with standardized holes arranged at fixed intervals (typically φ28mm holes, which is where the name "D28" comes from). By using a series of clamps, modules, and accessories specifically designed for this hole system, users can quickly and accurately position and clamp workpieces in three-dimensional space for welding, assembly, measurement, or other machining operations.
Whatsapp Phone Number
Evasummer@lemarmetal.com
Products parameters
2D WELDING TABLE
3D WELDING TABLE
Products Specification
Main Components
A complete D28 system usually includes the following parts:
Table Body:

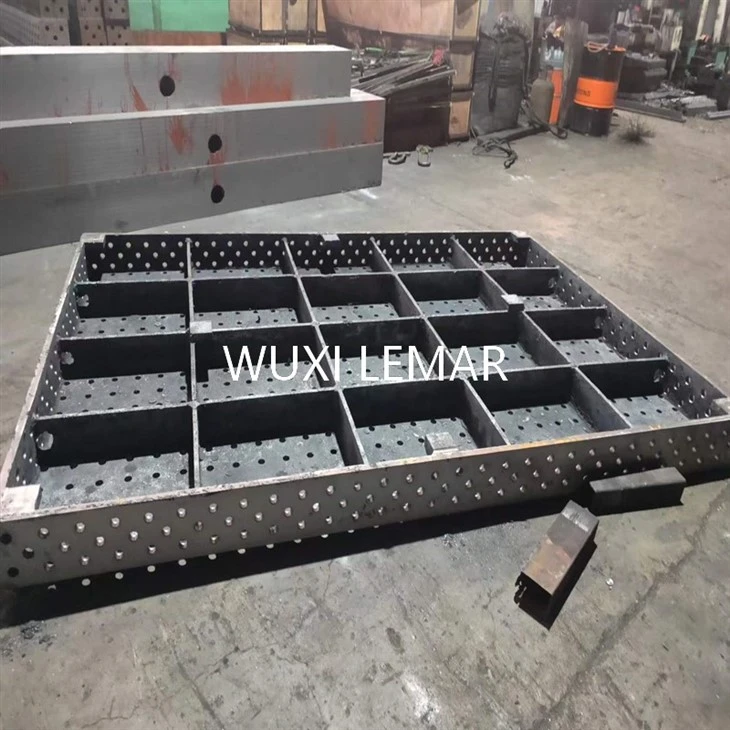

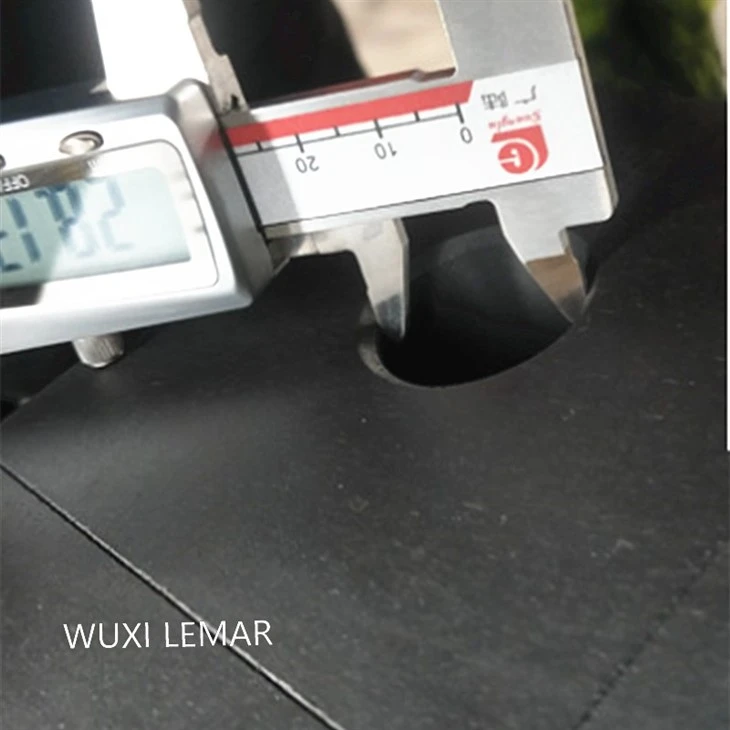

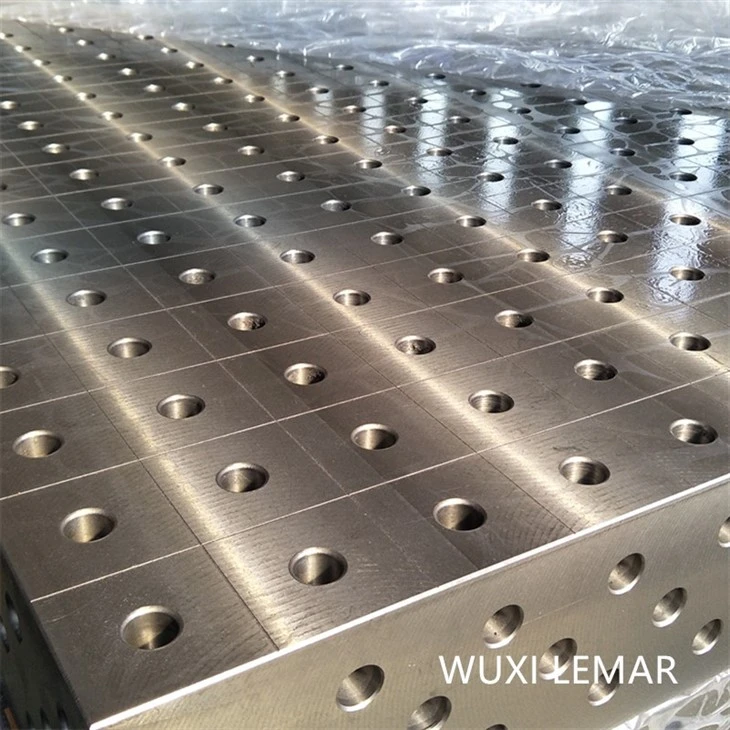

Table Surface: The core part, made of thick steel plates (usually 50mm or more), with extremely high flatness (usually ±0.05mm/m²), straightness and hardness. It is covered with uniformly spaced D28mm holes (common hole center distances are 100mm and 50mm).
Support Legs: Sturdy steel brackets that ensure the workbench remains stable and undeformed under heavy loads. Some high-end models come with adjustable feet for leveling the tabletop on uneven ground.

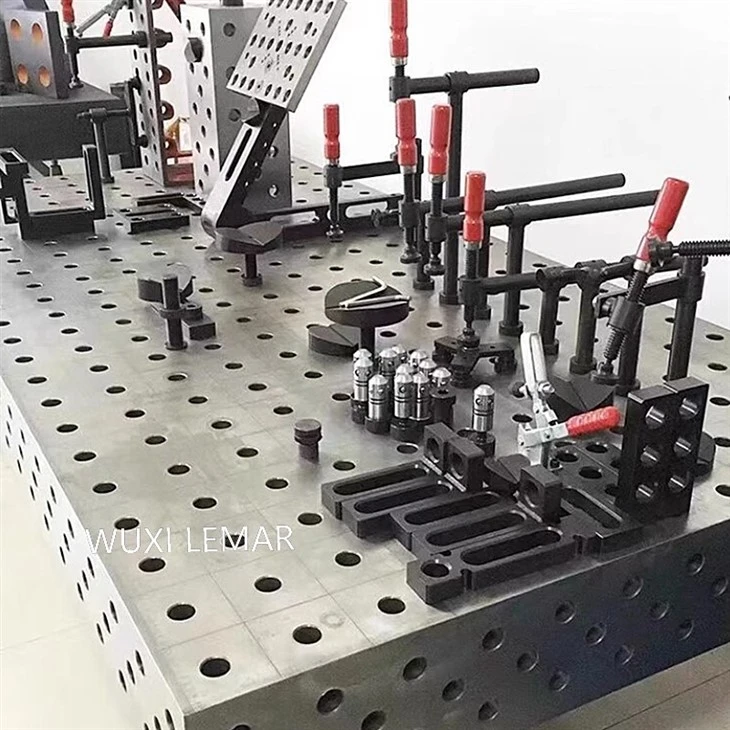

Accessory System: This is the soul of the 3D workbench.
Locating Pins: Used for precise positioning of workpieces or other accessories.
Clamps: Various forms of quick clamps, spiral clamps, etc., used to clamp workpieces from different directions.
Support Blocks: Support blocks of various heights and angles, used to support and lift workpieces.
Angle Elements: Used to quickly set 90 degrees, 45 degrees or other specific angles to ensure the perpendicularity or angle requirements between workpieces.
V-Blocks: Used for clamping cylindrical workpieces.
Threaded Inserts and Bolts: Used to be embedded in the holes of the tabletop to connect with other accessories.
Special Accessories: Such as scribers, tool racks, etc.
All accessories are designed with a shaft diameter (usually φ26mm) that perfectly matches the D28 hole, enabling quick positioning and extremely high repeat positioning accuracy.
D28 Steel 3D Welding Table is more than just a table; it represents an advanced, efficient, and precise manufacturing philosophy. Through its modular design, it transforms traditional welding and assembly work that relies on the experience of senior craftsmen into a standardized, replicable, and highly efficient modern manufacturing process.
