High Precision Welding Table

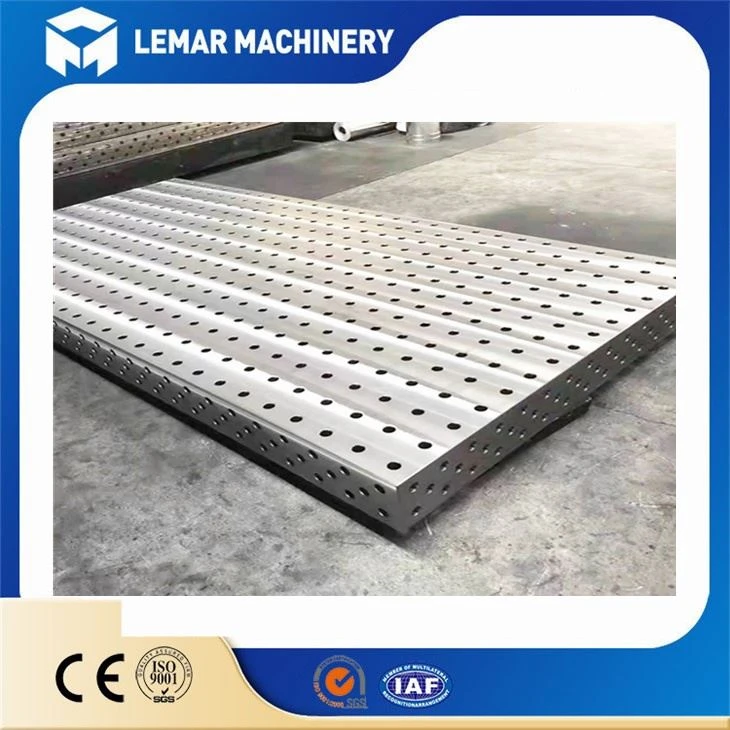

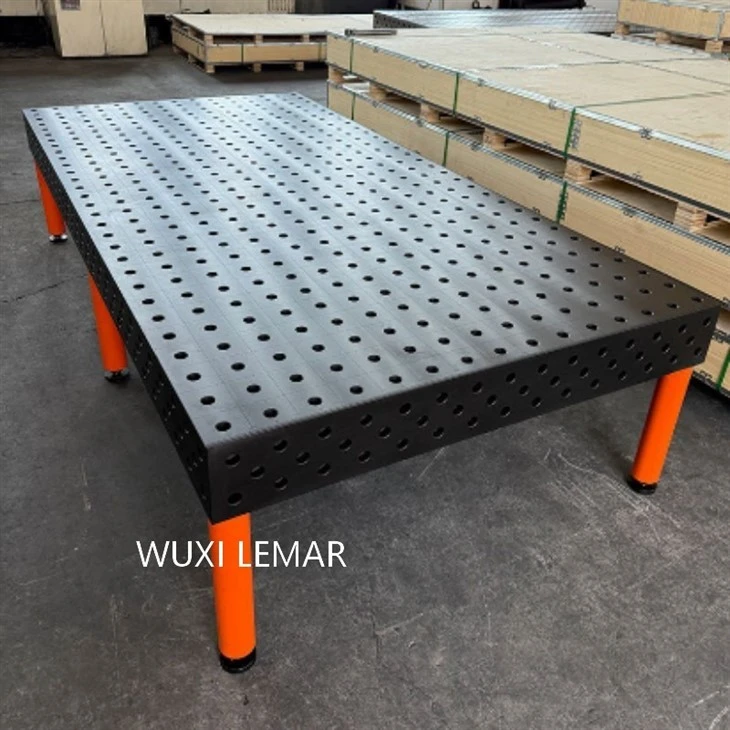

High-precision welding platform is usually also called a "welding platform", "3D flexible welding platform" or "modular welding system". Essentially, it is a thick and heavy platform made of high-quality steel (usually low-carbon steel or stainless steel), which is covered with precisely machined grid through-holes arranged at fixed intervals (commonly 100mm x 100mm or 50mm x 50mm arrays).
Whatsapp Phone Number
Evasummer@lemarmetal.com
Products parameters
2D WELDING TABLE
3D WELDING TABLE
Products Specification
Core Features and Advantages
Of 3D Modular Fixture Welding Table
Extreme Precision:
Flatness: The tabletop is stress-relieved and precision-ground, resulting in extremely low flatness tolerances (typically within 0.05mm/m²), ensuring the accuracy of the workpiece reference surface.
Hole Position Accuracy: The position, perpendicularity, and dimensional tolerances of each grid hole are strictly controlled, ensuring precise and repeatable fixture installation in any position.
Modularity and Flexibility:
This is its greatest advantage. Users no longer need to design and manufacture expensive, specialized fixtures for each new workpiece.

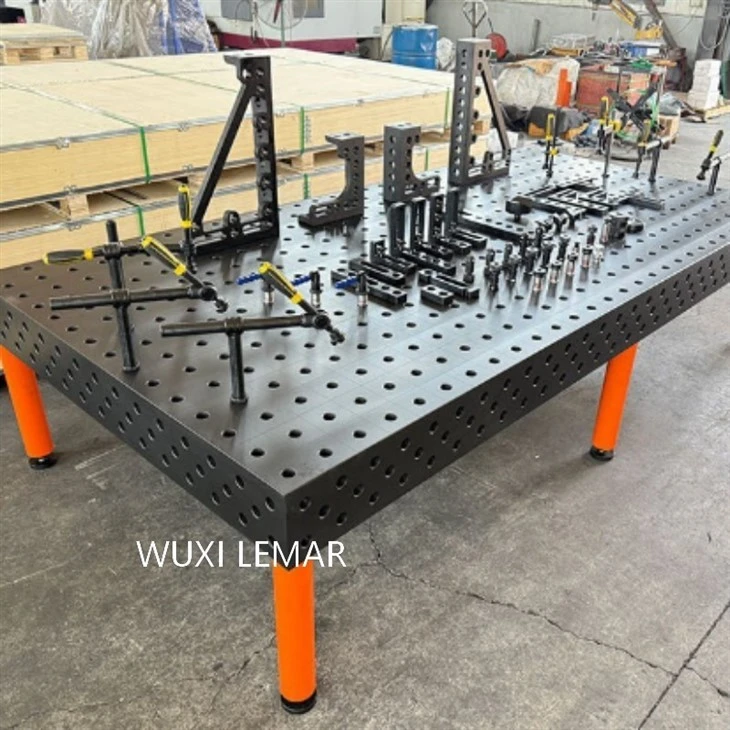

By combining standardized modular components, clamping and positioning solutions for different products can be quickly constructed, like building blocks. Product changeovers require only repositioning components, significantly reducing setup time and making it suitable for high-mix, low-volume production.
Versatility:
Welding: A fundamental function, providing stable and precise workpiece fixturing and reducing welding distortion.
Gauging: Due to its high precision, the table itself serves as an ideal measurement reference surface for post-assembly dimensional verification.
Assembly: Suitable for precision mechanical assembly, ensuring the accurate relative positioning of components.
Fixed Work: Can be used as a platform for marking, drilling, and other tasks.
Improving Quality and Efficiency:
Reducing Deformation: A sturdy tabletop and a well-defined clamping point distribution effectively suppress deformation caused by welding thermal stress.
Ensuring Consistency: Precise positioning ensures consistent dimensions for each workpiece, ensuring consistent product quality.
Saving Time: Quick clamping significantly reduces workpiece adjustment and alignment time, improving production efficiency.
High Durability:
Usually made of high-quality steel, heat-treated for wear and corrosion resistance, ensuring a long service life. The tabletop's generous thickness (typically over 28mm) provides exceptional rigidity, allowing it to withstand heavy loads and constant impact.
A high-precision welding platform is more than just a "table"; it is a complete "workpiece positioning and clamping system". By providing an impeccable geometric reference and standardizing and modularizing fixtures, it has completely transformed traditional welding and assembly modes, serving as the cornerstone for achieving high-quality, high-flexibility, and high-efficiency modern manufacturing.
