Standard 3D Welding Tables

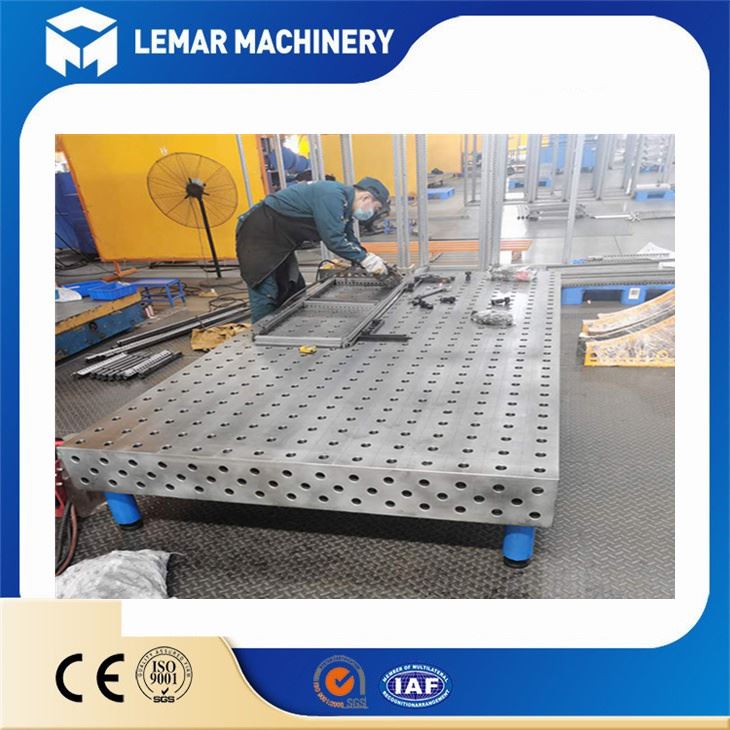

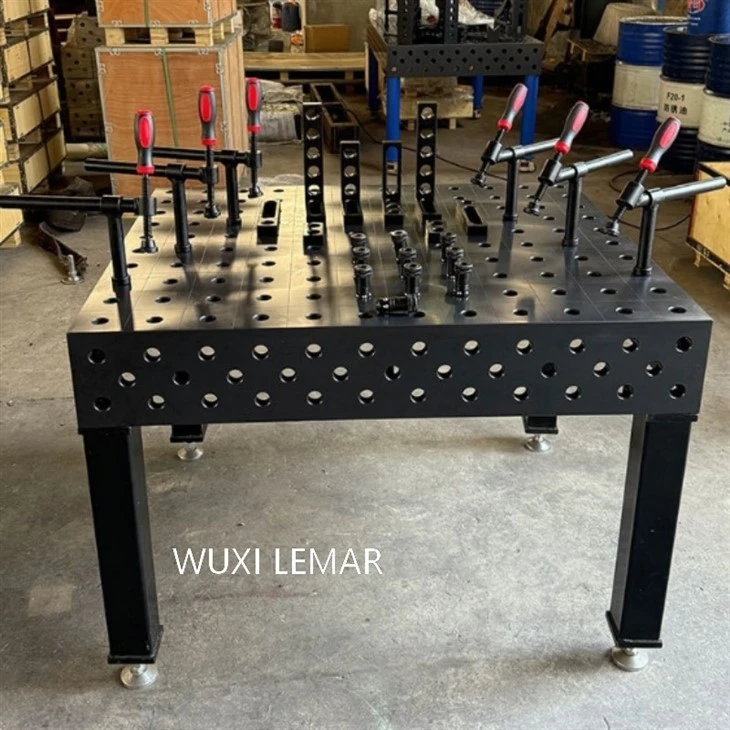

Standard 3D Welding Tables are modular, high-precision tooling platforms. Their core function is to quickly and accurately position, clamp, and weld workpieces in three-dimensional space (X, Y, Z directions) through a grid tabletop full of standard positioning holes, along with various supporting fixtures, pins, and supports.
They represent a concept of "flexible tooling," replacing traditional, custom-made, non-reusable special welding fixtures designed for a single product.
Whatsapp Phone Number
Evasummer@lemarmetal.com
Products parameters
2D WELDING TABLE
3D WELDING TABLE
Products Specification
Core Features and Advantages
(1) Exceptional Flexibility and Versatility
One machine replaces a hundred: By changing the combination of tooling, a single workbench can be used for welding countless different products, completely eliminating the wasteful "one tooling for one product" model.
Rapid production changeover: When switching products, it only requires loosening the clamping parts and replacing or adjusting the positioning modules, which can reduce the changeover time by more than 80%.
(2) Guaranteed Precision and Quality

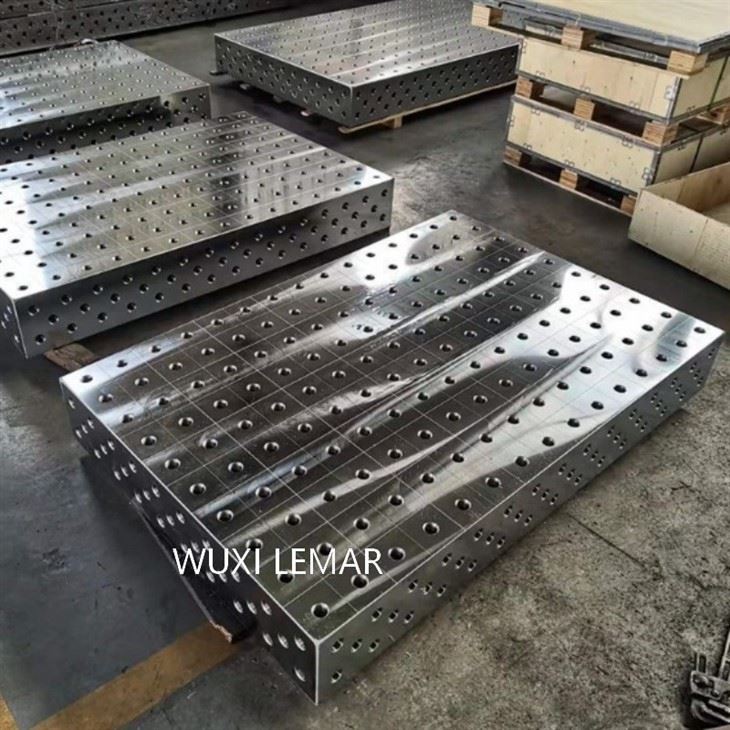

Precision manufacturing: The workbench surface is precision-machined by a large CNC milling machine, with extremely high flatness (up to ±0.05mm/m²) and hole position accuracy within ±0.02mm.
High repeat positioning accuracy: Based on a precision grid hole system, all positioning can be quantified, ensuring the consistency of products in different batches and significantly reducing the rework rate.
(3) Improved Production Efficiency
Reduced auxiliary time: There is no need for traditional steps such as marking, measuring, and repeated adjustments; the workpiece can be quickly positioned and clamped once placed.
Facilitated division of labor and collaboration: Complex workpieces can be decomposed into multiple components, welded in parallel on multiple workbenches, and finally assembled.
Standard 3D Welding Tables are an outstanding representative of the concepts of flexible, precise, and efficient production in modern manufacturing. They are not just a "table" but a complete set of tooling system solutions. By combining high-precision mechanical platforms with modular functional components, they have completely transformed the traditional mode of welding fixtures. They are revolutionary in shortening production preparation cycles, improving product quality, and reducing overall costs, and are indispensable basic process equipment in the field of high-end equipment manufacturing.
