Welding Table with Jigs Clampings
Welding Table with Jigs Clampings is a modular welding work system, whose core is a workbench surface covered with precision grid holes, equipped with a series of specially designed clamps, positioners and clamping components that can be used in conjunction with the holes on the bench.
Its design concept is: to establish each welding project on a precise and repeatable reference system, thereby replacing the inefficient methods in traditional welding that rely on manual marking, temporary spot welding fixation, and the production of one-time fixtures.
Products parameters
Products Description
Components of the System
Welding Table with Jigs Clampings mainly consists of three major parts:
1. Workbench Surface
Features: The surface is equipped with counterbores arranged in a matrix pattern. The two most common systems are:
Material: Usually made of high-strength alloy steel (such as Q355),stress relief and precision machining to ensure long-term flatness and accuracy.
2. Fixtures and Clamping Components
This is the "executing mechanism" of the entire system, with a wide variety of types, mainly including:

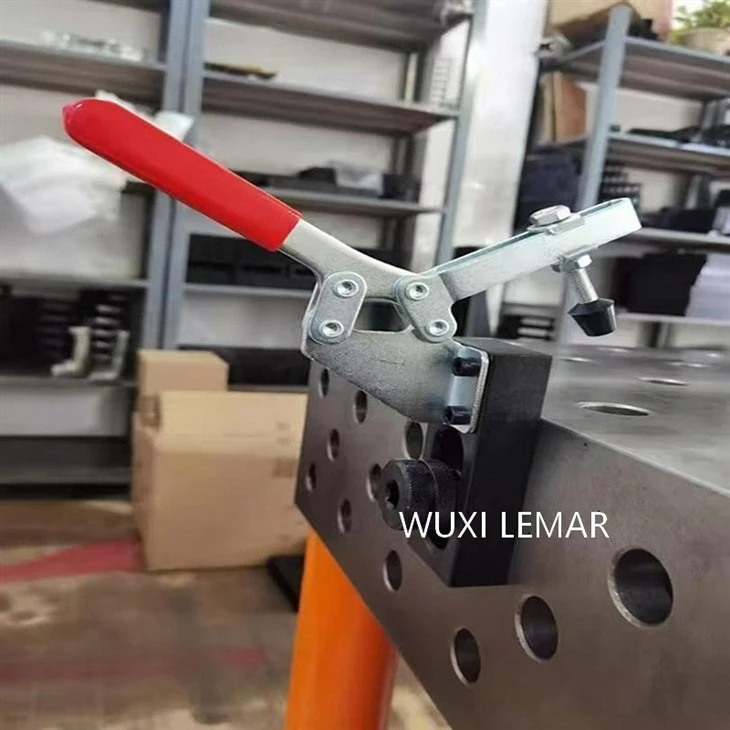

Quick clamps: Provide lateral or vertical clamping force and can be operated quickly.
Positioning blocks and angle irons: Used to quickly and accurately set 90-degree or other angles, which are key to ensuring the perpendicularity of workpieces.
Support columns/bushings: Available in various heights, used to support workpieces in the Z-axis direction, lifting them a certain distance off the table surface for easy welding or positioning.
Bolts, nuts, and pressure plates: Connected through the holes on the table surface to provide strong clamping force.
Specialized modules: Such as spiral thimbles, V-blocks (for clamping round pipes), telescopic positioning pins, etc.
3. Table Body and Accessories
Sturdy table legs/base: Usually made of steel to ensure the stability of the entire platform, and sometimes integrated with storage drawers.
Extension accessories: Such as table surface extension plates, universal wheels, etc.
Welding Table With Jigs Clampings (a modular welding table with clamps) is more than just a "table"; it is a complete "welding solution" and "precision assurance system". Through standardized interfaces and modular components, it elevates welding from a "craft" to a controllable, repeatable, and highly efficient "manufacturing process". For any workshop looking to improve welding quality, efficiency, and flexibility, investing in such a system is transformative.
