3D Welding Table – CNC Drilling Machine Made | Precision, Rigidity & Factory-Direct Quality
Introduction

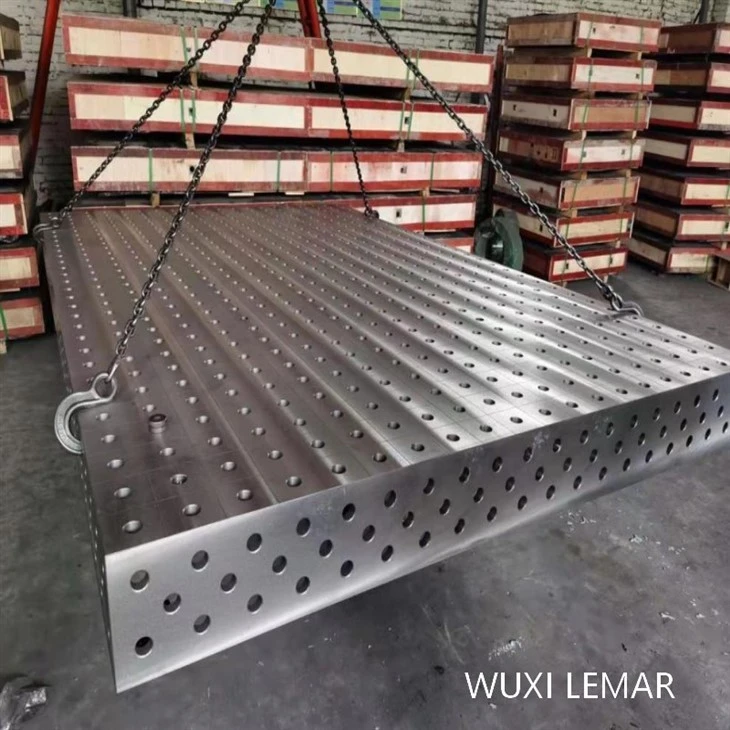

The 3D Welding Table (CNC Drilling Machine Made) is a high-precision workbench manufactured using CNC drilling technology. Unlike traditional cast tables with manual drilling or cast-in holes, this table features CNC-drilled hole grids on both the top and side surfaces (3D design), ensuring exact hole positioning, consistent diameter (e.g., D28 or D16), and perfect perpendicularity.
The table is made from high-grade cast iron (HT300 or equivalent) , stress-relieved and precision-ground after CNC drilling. The result is a flat, rigid, and repeatable fixturing platform designed for arc welding (MIG/TIG/Stick) , assembly, and heavy-duty fabrication.
Key manufacturing highlight:

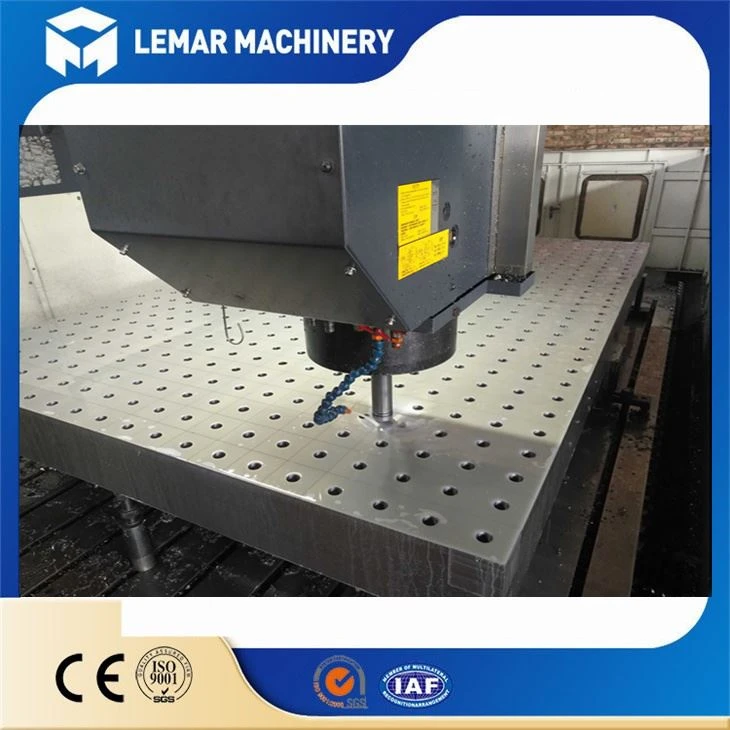

All holes are drilled by CNC drilling machines – not cast, not manual – guaranteeing ±0.05mm hole position accuracy and a perfect fit for modular clamping accessories.
Products Parameters
Products features
1.CNC drilling machine made
Every hole position accurate to ±0.05mm – perfect for modular tooling.
2.3D hole grid (top + sides)
Allows vertical, horizontal, and angled clamping – build complex jigs easily.
3.High-grade cast iron (HT300)
Excellent vibration damping – reduces weld distortion and improves accuracy.
4.Precision-ground surface
Flatness ≤ 0.1mm per meter – repeatable setups every time.
5.D28 / D16 / custom hole sizes
Compatible with standard European-style clamps, pins, and stops.
6.Ribbed underside design
Maximum rigidity with optimized weight – easy to level and move.

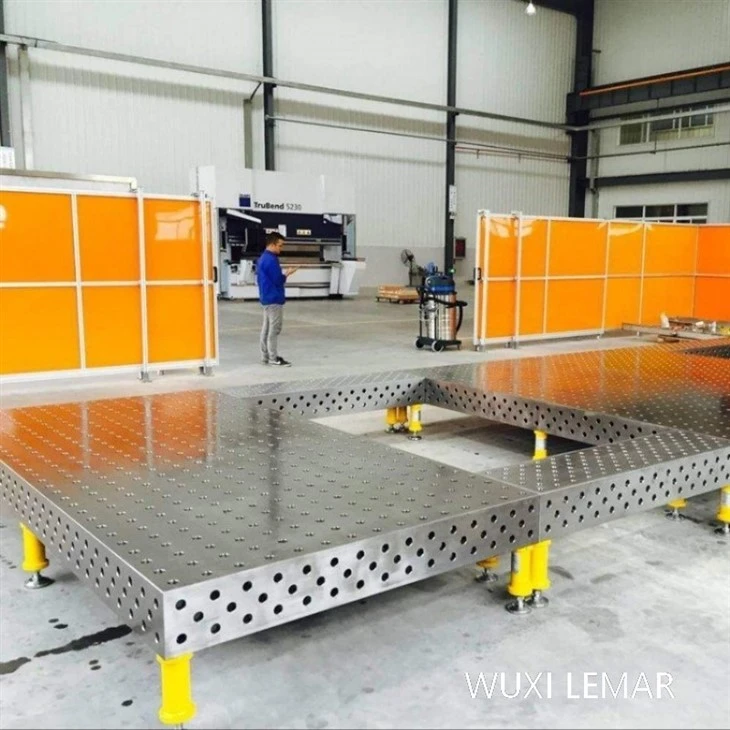

7.Modular & expandable
Multiple tables can be bolted together for larger work cells.
8.Factory-direct quality control
Every table inspected before shipping – no middleman markup.
Application Area
This CNC-drilled 3D welding table is ideal for:
| Industry | Typical Applications |
|---|---|
| Heavy equipment manufacturing | Excavator brackets, truck frames, bulldozer components |
| Automotive & racing | Chassis jigs, roll cages, suspension fixtures, EV battery frames |
| Structural steel fabrication | Beams, columns, railings, stair stringers |
| Pipe & tube welding | Pipe supports, saddles, flanged joints, handrails |
| Metal furniture | Tables, chairs, industrial shelving, gates |
| Tool & die shops | Precision layout, assembly fixtures, inspection stations |
| Vocational training | Teaching proper fixturing and 3D positioning |
| Prototyping & R&D | One-off parts, new product development |
Company Certification
Customer Feedback
our casey
Let us once again express our gratitude to our customers for their support.

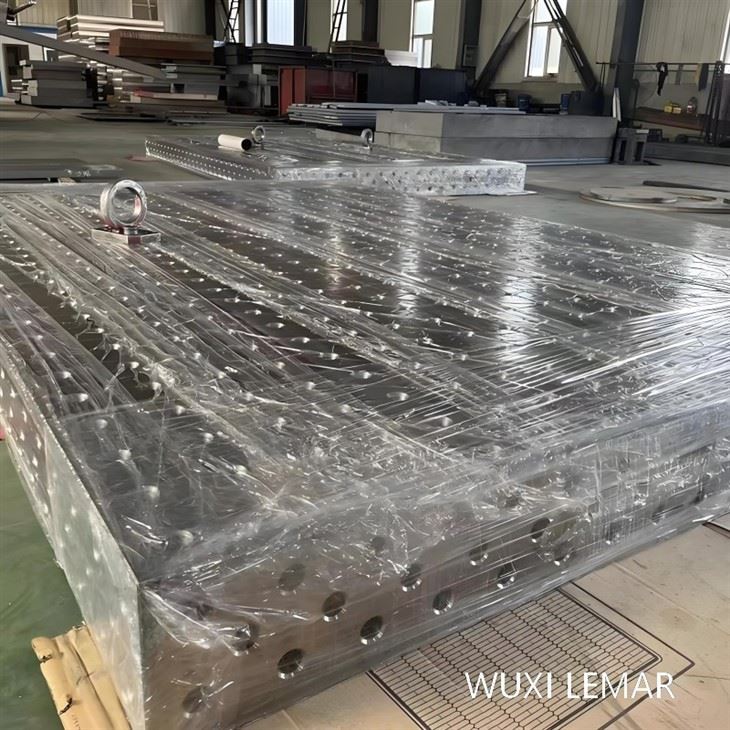

Products Packaging
Our Packaging
FAQ
tIPS FOR REFERENCE
Answering the following questions can roughly help you understand our products.
Q:1.What hole size and spacing do you offer?
A:
Standard options:
Hole diameter: D28 (28mm) or D16 (16mm) – European standard
Hole spacing: 100mm × 100mm or 125mm × 125mm
Custom sizes: Available on request (MOQ applies)
Q:2.What material is the table made of?
A: High-grade cast iron (HT300 or equivalent) – chosen for its vibration damping, wear resistance, and stability under heat.
Q:3.How flat is the table surface?
A: Flatness ≤ 0.1mm per meter – precision-ground after CNC drilling.
Q:4.Can I connect multiple tables together?
A: Yes. The table has pre-drilled side mounting holes. You can bolt two or more tables side by side, at 90°, or in an L-shape. Connection plates are available.
Q:5.What welding processes is this table designed for?
A:Designed for arc welding (MIG, TIG, Stick) and resistance welding.
Do not use for direct plasma cutting or oxy-fuel cutting without a protective steel plate or slatted top.
Q:6.Do you sell a clamping kit with the table?
A:Yes – we offer D28/D16 clamping kits (vertical clamps, horizontal clamps, locating pins, stop blocks, bolts). Add to your order for a complete ready-to-weld setup.
