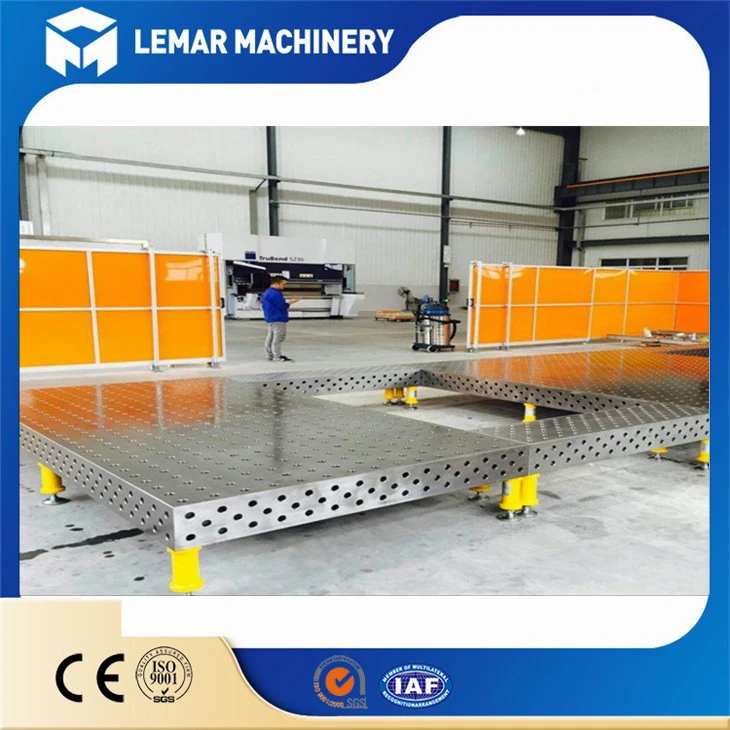

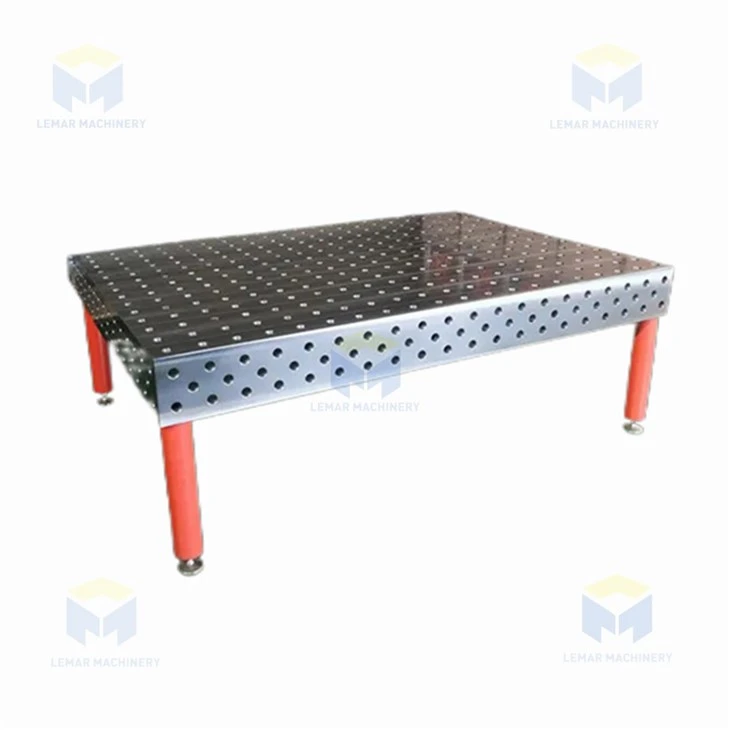

98"*78" Welding Table
Introduction
Typical design and materials
Frame structure
Material: square steel, channel steel or I-beam (recommended wall thickness ≥ 3mm).
Reinforcement design: diagonal bracing or beam reinforcement to prevent deformation.
Countertop
Material: low carbon steel plate (thickness ≥ 6mm, anti-deformation).
Hole position design:
Standard aperture: Ø16mm or Ø28mm, spacing 50-100mm.
Purpose: Install fixtures, quick clamps or locating pins.
Size application scenarios
Advantages: Suitable for large workpieces (such as steel structures, car chassis, mechanical parts).
Disadvantages: Large space occupation and inconvenient movement (heavy-duty universal wheels need to be installed).
Products Parameters
Products Details
Usage and maintenance
Fire prevention measures:
Avoid stacking flammable materials on the workbench. Equip with fire extinguishers or fire blankets.
Cleaning and maintenance:
Regularly clean up welding slag (with a chisel or wire brush).
Apply anti-rust oil or high-temperature paint on the workbench (to prevent oxidation).
If more specific drawings or customization suggestions are required, provide detailed requirements (such as bearing requirements, usage scenarios) for further analysis!
Products Description
