Introduction

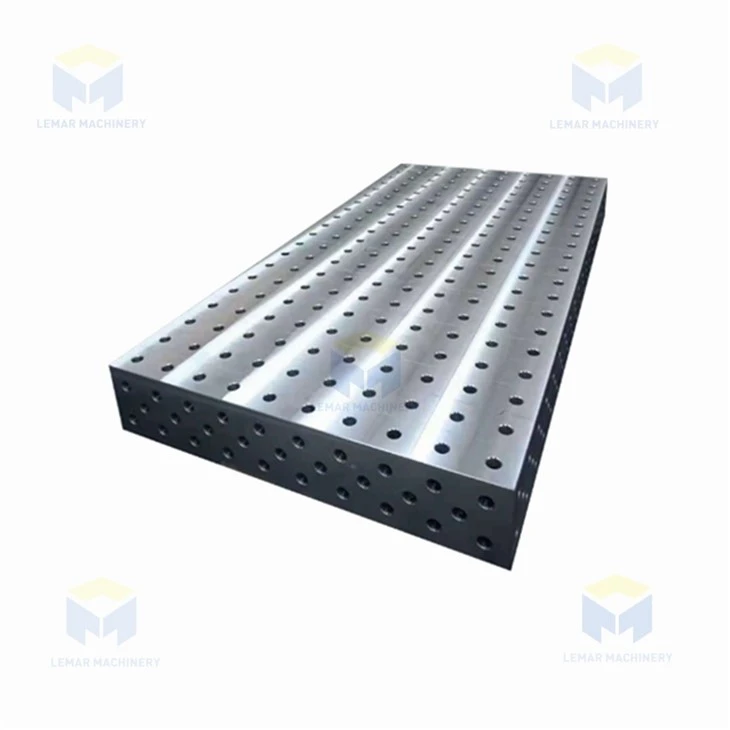

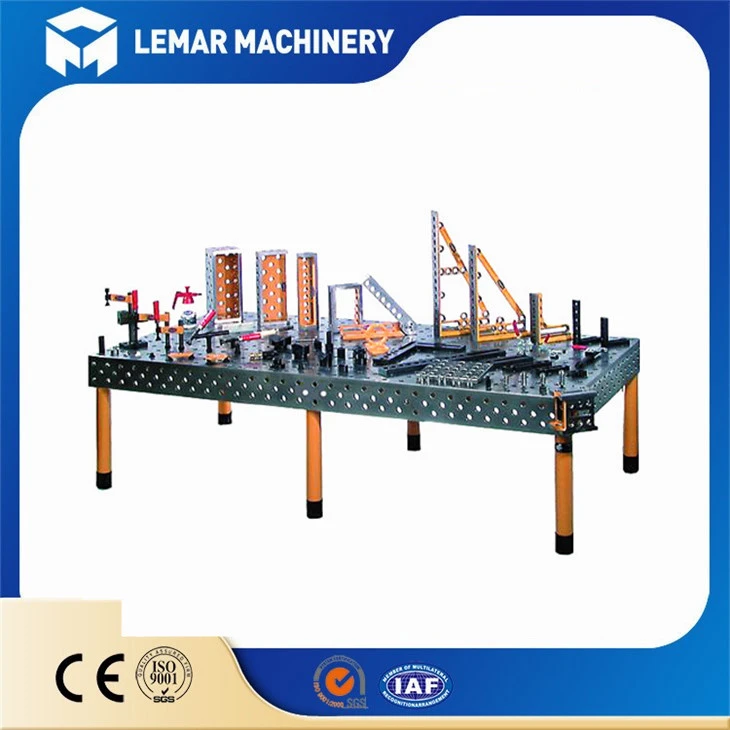

The D16 3D Welding Table Standard is the industry's most popular modular fixturing platform. It features Φ16mm precision holes on a 50mm x 50mm grid, with holes machined into the top surface and all four side faces for true three-dimensional clamping. The D16 system is the standard choice for general fabrication, precision welding, and assembly work because it offers the best balance of strength, accuracy, and accessory availability. Table sizes range from 1000 x 1000mm to 1500 x 3000mm, with a precision ground steel surface (nitrided optional). Hundreds of compatible clamps, pins, angle blocks, and stops are available from multiple brands. Whether you are a job shop, maintenance department, or vocational school, the D16 3D table delivers proven, reliable fixturing at a reasonable cost.
Products Parameters
Technical parameters(16 series) |
| Material:A.HT300 casting, B.Q355 steel plate welding, C.High hardness steel plate welding,D.Welding of stainless steel plates |
| Aperture: A=φ16.065--φ16.149mm |
| Hole spacing:L1=50+-0.05mm |
| Engraving line: engraving line spacing W1=50±0.05mm |
| Flatness:0.1/1000mm |
| Verticaltity:0.05/200mm |
| Surface roughness:RA3.2 |
| Load bearing:standard 2t,frame type 5t |
Products display
| Spec.(L x W x H) | |
| 1000×1000×100mm | Special size can be customized |
| 1200×1200×100mm | |
| 1500×1500×100mm | |
| 2000×1000×100mm | |
| 2400×1200×100mm | |
Products Video
Products application
Application Range
◆General Metal Fabrication – Weld gates, railings, frames, brackets, and machinery guards. The D16 system provides fine positioning for accurate assemblies. The 50mm grid lets you place clamps exactly where needed. Perfect for job shops that see a wide variety of work.
◆Automotive & Motorsports – Fabricate roll cages, exhaust systems, suspension components, and chassis brackets. The 50mm grid positions small brackets precisely. V-blocks and angle blocks handle tubes and compound angles. The 3D side holes hold vertical assemblies steady.
◆Maintenance & Repair – Fixture broken equipment for straightening, weld replacement sections, assemble pump and motor components. The D16 table is large enough for most repairs but not oversized. Quick setup means less downtime for emergency jobs.
◆Robotic Welding Cells – The ≤0.10mm/m² flatness and ±0.05mm hole accuracy provide repeatable fixturing for automation. The 50mm grid allows fine positioning of small parts. Quick locking pins enable fast changeovers between part families.
◆Vocational Education – Teach proper fixturing techniques on the industry standard system. Students learn on D16 – the system they will encounter in professional shops. The table is durable, easy to maintain, and accessories are affordable to replace.
Company Certification
Customer Feedback
our casey
Let us once again express our gratitude to our customers for their support.
Products Packaging
Our Packaging
FAQ
tIPS FOR REFERENCE
Answering the following questions can roughly help you understand our products.
Q:1.Why choose D16 over D28?
A:D16 (16mm holes, 50mm grid) offers finer positioning for smaller parts and is more affordable. D28 (28mm holes, 100mm grid) is for heavy-duty work. D16 is the standard for most shops.
Q:2.What sizes are available?
A: Standard sizes: 1000x1000, 1000x1500, 1200x2400, and 1500x3000mm. Custom sizes available on request.
Q:3.Does the table include clamps and accessories?
A: The table includes only the precision ground surface. We offer D16 starter kits (clamps, pins, stop blocks, angle blocks) as add-ons.
Q:4.Should I get the nitrided surface?
A: Yes for most shops. Nitriding prevents spatter sticking, resists rust, and extends table life to 5–8 years. The cost is minimal compared to replacing an untreated table.
Q:5.Can I use accessories from other brands?
A: Yes. D16 is an industry standard. Any D16 accessory (16mm shank, 50mm grid) from any major brand will fit.
Q:6.What is the lead time?
A:15–25 business days for standard sizes. Nitriding adds about 5 days. Rush orders available.
