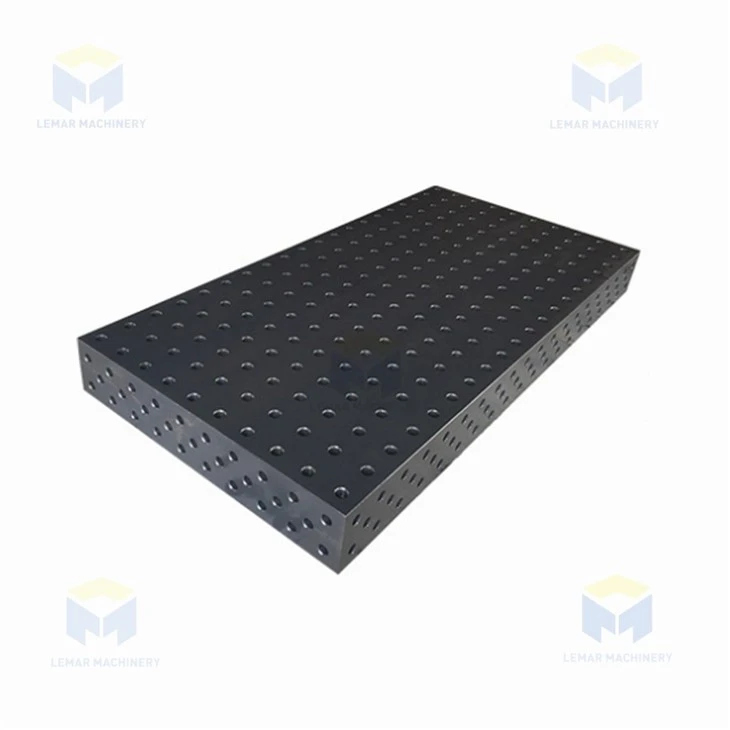

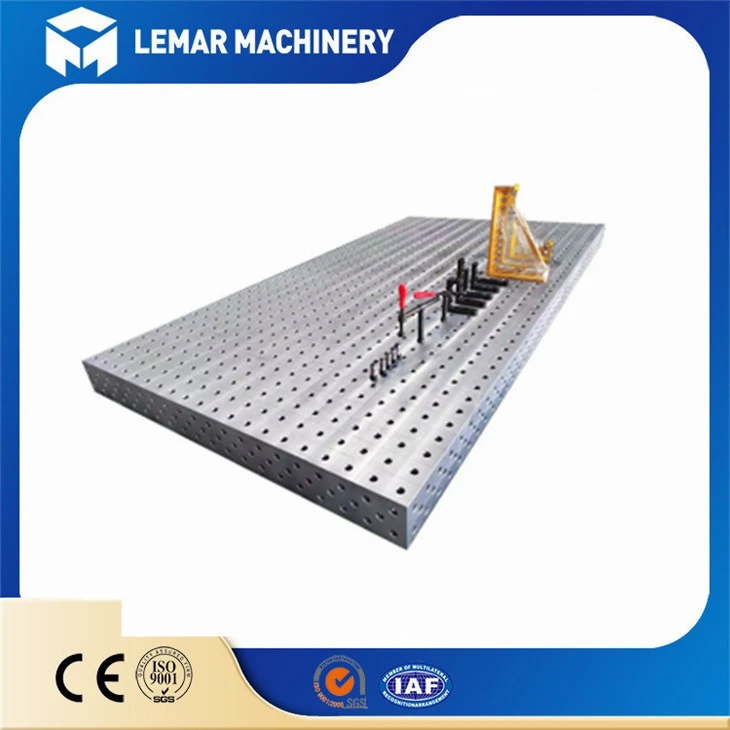

D28 Welding Table 4000*2000

Introduction

D28 represents the hole position system specification (such as hole diameter of 28mm).

Typical applications:

high-precision welding tooling, parallel assembly of multiple workpieces, and base platform for robotic welding workstations.

Tabletop structure:

28mm standard aperture: Compatible with international universal fixtures, supporting rapid positioning and expansion.

Reinforced grid: Adopting laser cutting technology to reduce thermal deformation (thickness may reach 15-25mm).

Material upgrade:

Q355 high-strength steel: The yield strength is ≥355 MPa, and the deformation resistance is increased by more than 20%.

Load-bearing capacity and stability:

Static load: ≥8 tons (uniformly distributed), local concentrated load ≥3 tons (based on table thickness and support structure). Dynamic seismic resistance: Support high-frequency vibration welding (such as robotic MIG welding), amplitude control ≤0.1mm/m.

Products Parameters

Products application

D28 Welding Table 4000×2000mm, with its characteristics of high precision, modularization and intelligence, covers a wide range of fields from heavy industry to cutting-edge technology. Its design deeply meets the needs of modern manufacturing for flexibility, digitalization and greening. It is especially suitable for the following users:

Factories that need to handle orders of multiple varieties and small batches.

High-end equipment manufacturers that pursue zero-defect welding.

Medium and large enterprises that layout automated upgrades.
