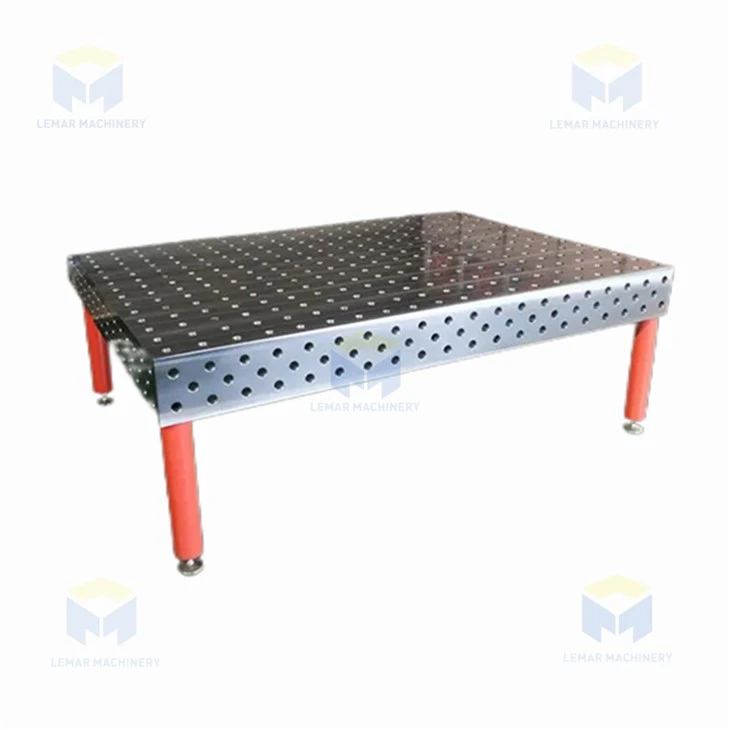

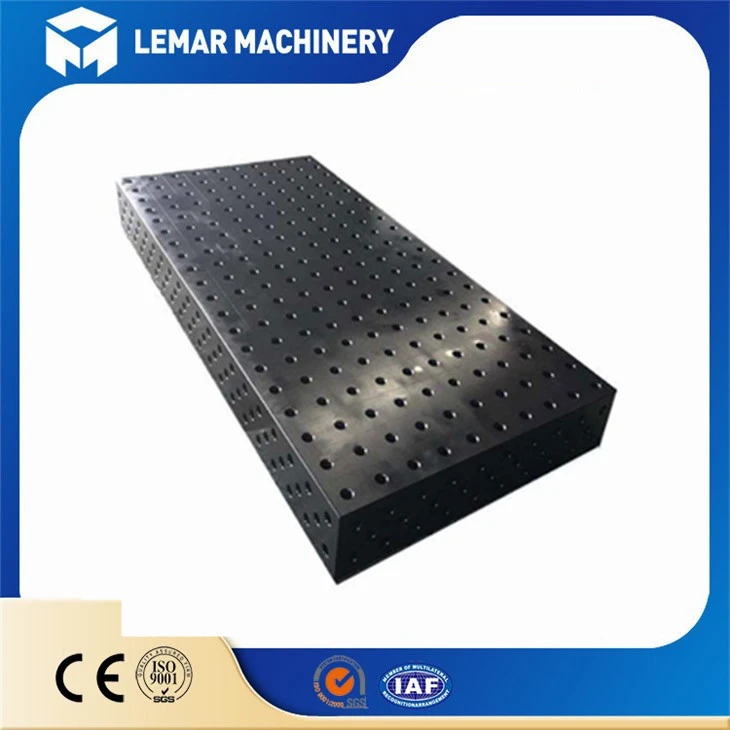

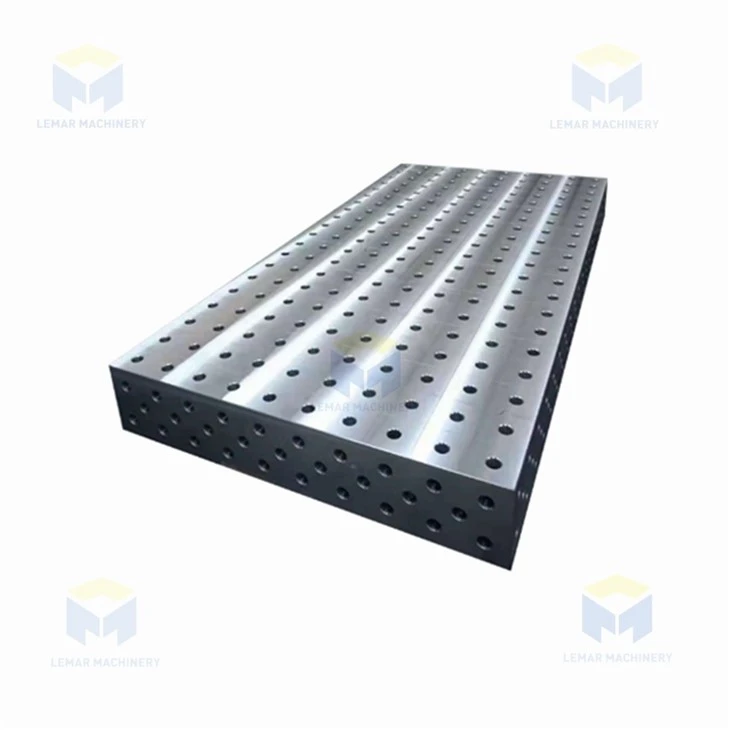

Welding Table 4000*2000mm
Introduction
1.Basic parameters
尺Size: 4000mm (length) × 2000mm (width) × height (usually 800-900mm, customizable).
Load-bearing capacity: about 2-5 tons (depending on materials and structural design).
Weight: about 500-1000kg (affected by steel thickness and structure).
2. Core design
Countertop material:
Q355 carbon steel: Economical and practical. Surface rust prevention treatment (such as plastic spraying and galvanizing) is required. Stainless steel (304/316): Corrosion resistant, suitable for humid/corrosive environments, but with high cost.
Cast iron: High rigidity and resistance to deformation, but heavy and with high cost.
Countertop strengthening design:
Weld cross-shaped stiffeners at the bottom to prevent deformation due to high temperature.
The thickness is usually 8-20mm (the thicker the stronger the load-bearing capacity, but the cost increases).
Modular design: Some high-end welding tables support extended splicing to adapt to oversized workpieces.
Standard hole location:
T-slot: Compatible with sliding fixation of fixtures and locating pins.
Threaded holes: Specifications such as M16/M28, evenly distributed (e.g., in a 100×100mm grid).
Customization options: Customized special-shaped holes or special arrangements according to workpiece requirements.
Products Parameters
Products Features
Fixture system: quick clamp, magnetic locator, angle adjustment module.
Integrated design
Power interface: built-in welding machine power socket, gas path interface (inert gas/compressed air).
Tool storage: side-mounted tool rack, universal hook, cable management groove.
Mobility solution
Heavy-duty casters: with braking function, load-bearing wheels (such as nylon + cast iron core).
Hydraulic lifting: adjustable height to meet different operation needs (high-end model).
Products package
Maintenance points:
Daily cleaning: Use a wire brush to remove welding slag and apply antirust oil regularly.
Deformation monitoring: Check the flatness of welding table 4000*2000mm surface with a level and correct it in time.
