4000*2000 Welding Table
Introduction
Size and load-bearing capacity.
Countertop specifications: 4000mm (length) × 2000mm (width). The height is usually 800-1200mm (customizable).
Load-bearing capacity: The oversized countertop requires stronger support. The standard load-bearing capacity is 8-15 tons (some industrial-grade models can reach more than 20 tons).
Material upgrade:
Countertop: Thickened ductile iron (25-40mm) or high-strength alloy steel, with stronger thermal deformation resistance.
Base: Box-type steel structure welded frame. Some models are equipped with a built-in hydraulic leveling system.
Precision level:
Larger sizes have higher requirements for flatness. The flatness of industrial-grade countertops is ≤0.1mm/m, and precision-grade ones can reach ±0.03mm/m.
Segmented scraping technology or laser calibration is required to ensure stability under long spans.
Products Parameters
Products advantages
Super-long workpiece compatibility:
It can fix multiple sets of large structural parts (such as ship sections and bridge components) at the same time, reducing the number of hoisting operations.
It supports multi-station collaborative operations and improves production line efficiency.
Enhanced extensibility:
Modular splicing: Some brands support splicing multiple units (such as 4000×2000 + 2000×2000) to form an extremely long workbench.

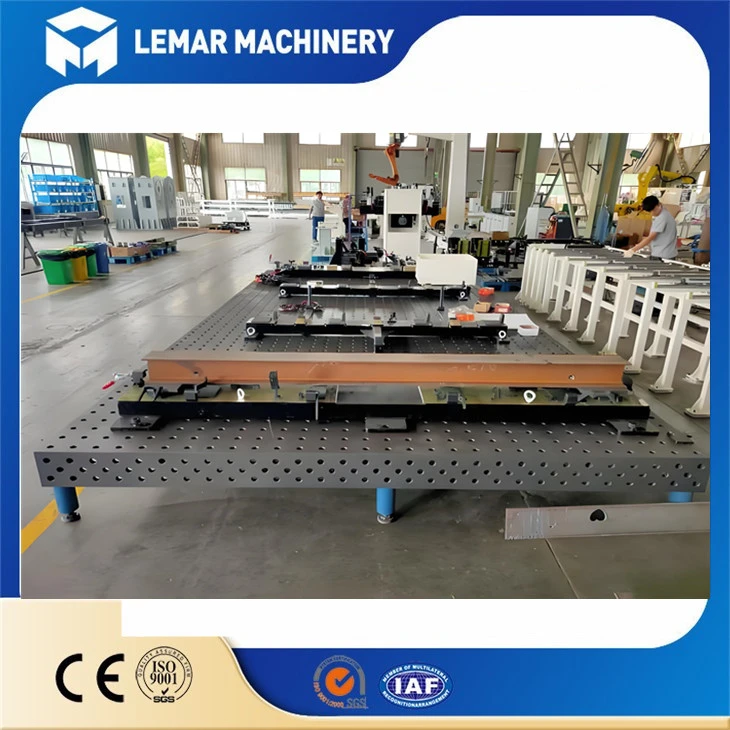

Products Display
The 4000×2000mm welding table is the core equipment in heavy manufacturing. Its procurement needs to comprehensively evaluate production capacity requirements, plant conditions and long-term maintenance costs.
