Fixtures Welding Table With Positoning Holes

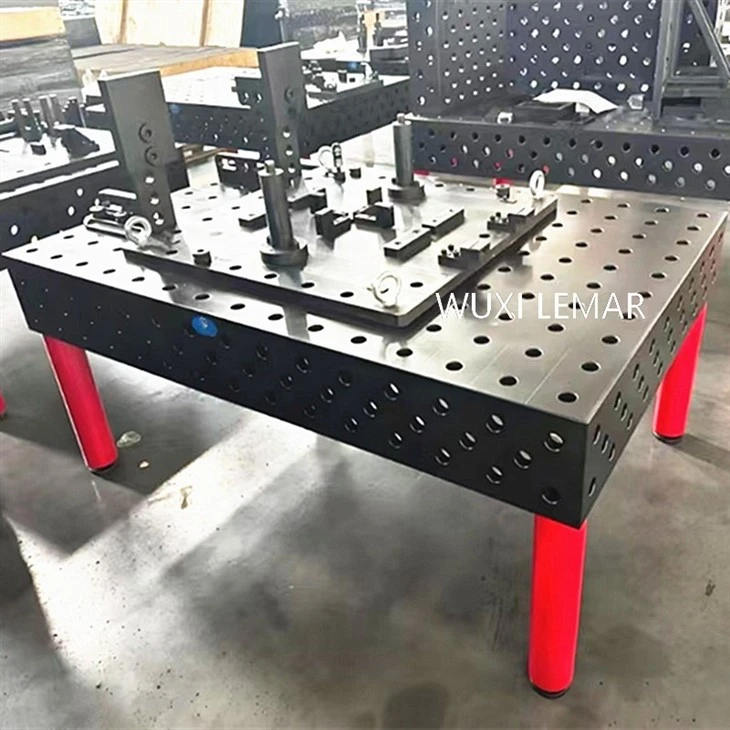

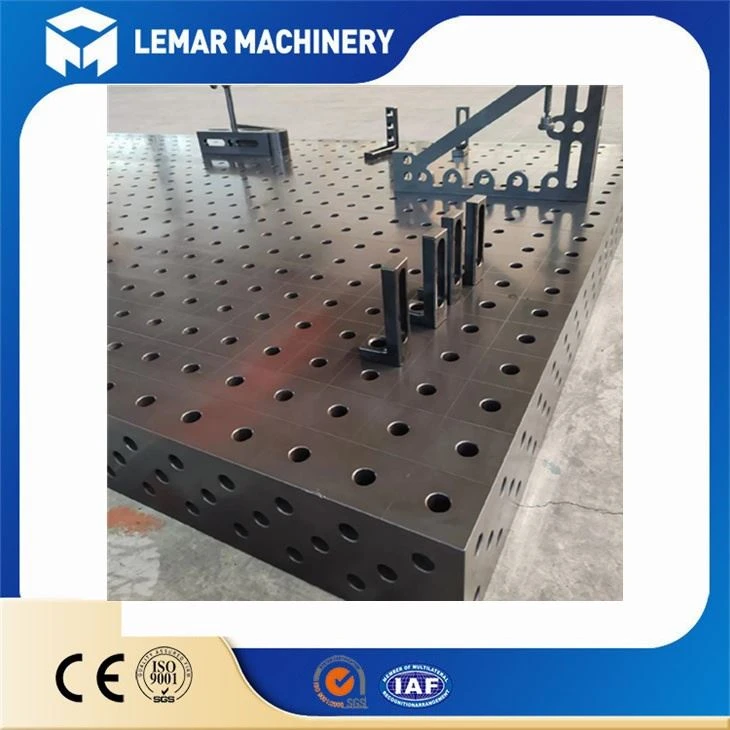

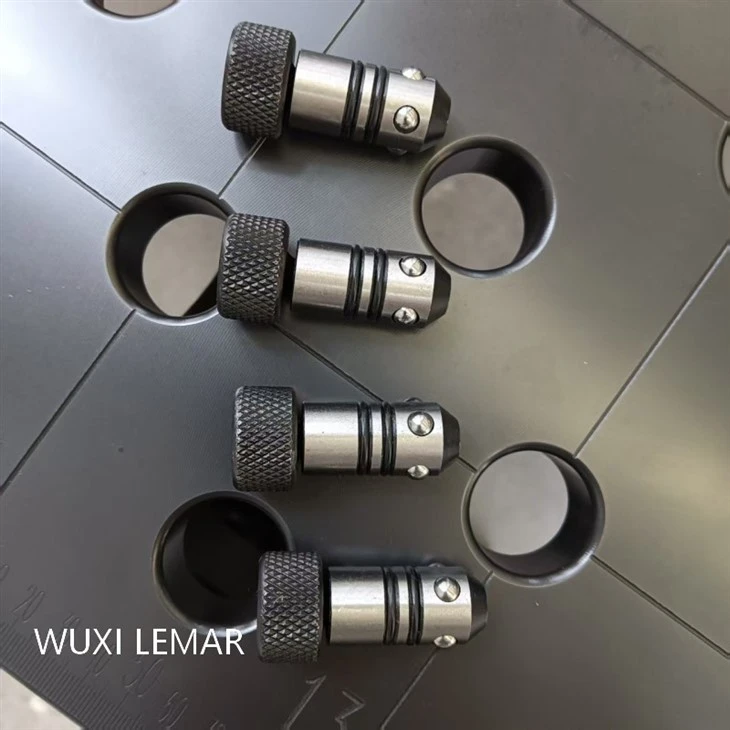

Fixtures Welding Table With Positoning Holes is essentially a workbench surface with positioning holes arranged in a standardized matrix. Through these holes, combined with a series of standardized, high-precision tooling fixtures (such as stoppers, angle gauges, clamps, support blocks, etc.), various shapes and sizes of workpieces can be quickly and accurately positioned and clamped.
DM Eva directly for quotation and more details↓↓↓
Products Types
Products Size
◆. Modularity and Flexibility:
◦ Core Advantage: One modular welding table can be used for welding or assembling countless different products, requiring only rearrangement and combination of fixtures. It is particularly suitable for production modes with multiple varieties, small batches, and rapid product replacement.
◦ Expandability: The worktops can be spliced in a plane or three-dimensional space like building blocks to form large-scale assembly tooling.
◆. High Precision:
◦ The positioning holes on the worktop are machined by high-precision CNC equipment, with extremely high hole spacing accuracy (usually within a tolerance of ±0.05mm), and the relative positions of the holes are consistent.
◦ All fixture components are positioned based on these holes, ensuring high repeat positioning accuracy of the entire tooling system.
◆. Quick Clamping and Repeatability:
◦ There is no need to specially design and manufacture complex dedicated fixtures for each part like traditional tooling. It saves more than 90% of the time and cost for tooling design and manufacturing.
◦ Once the workpiece position is determined, the coordinate position of the fixture can be quickly recorded, and it can be quickly restored for next use, ensuring product consistency.
◆. Versatility:
◦ Fixture welding table is not only used for welding but also for component assembly, assembly inspection, fitter marking, offline programming verification of robot welding, etc.
Products Application
Application Industries
• Automotive manufacturing: welding of subframes, suspensions, and body structural parts.
• Construction machinery: welding of excavator booms and frames.
• Rail transit: assembly of carriage components and bogies.
• Aerospace: welding of precision frames.
• General equipment manufacturing: welding and assembly of racks, boxes, valves, and pipe fittings.
Why choose us?
Related Certification
Customer Review
After service
We are always here for you
★Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
★Extended Warranty: Optional coverage up to 36 months.
★Global Support: 24/7 technical assistance and spare parts supply.
★Training: On-site or remote operation/maintenance training.
Contact us
Fixtures Welding Table With Positioning Holes is a fundamental process equipment for the upgrading of modern manufacturing towards flexibility and intelligence. Through the design concept of standardization and modularization, it transforms the fixture from a "consumable" into a reusable "Lego brick", which greatly improves production efficiency, process flexibility and product quality consistency, and is an important tool to enhance the core competitiveness of enterprises.
If you are looking for a reliable Fixtures Welding Table With Positoning Holes supplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
Hot Tags: fixtures welding table with positoning holes, China, manufacturers, factory, customized
