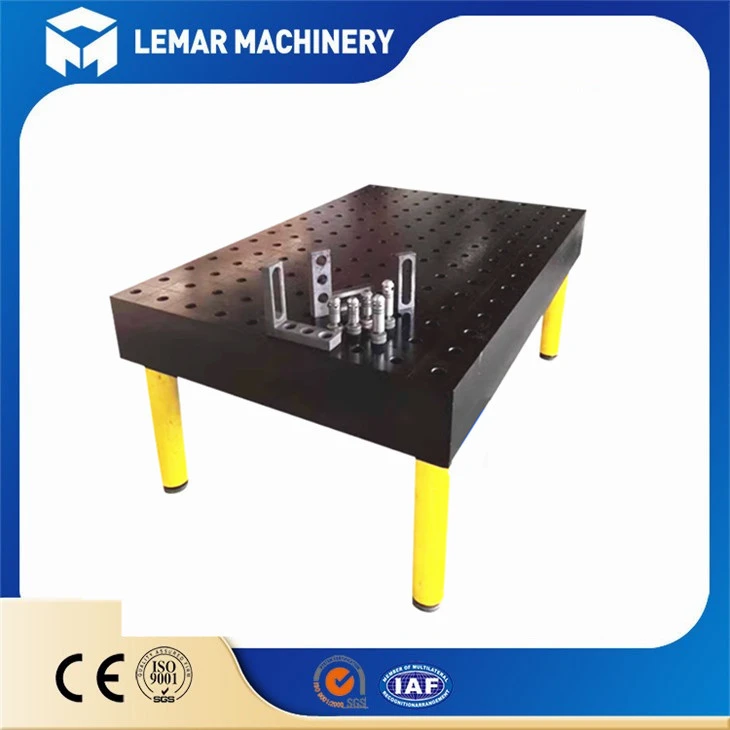

3D Welding Fixture System

Introduction

3D Welding Fixture System is a modular tool designed to securely hold and position workpieces during welding, allowing adjustments in three dimensions (X, Y, Z) for precise alignment. It enhances efficiency, accuracy, and safety in welding operations across various industries.

Key Components

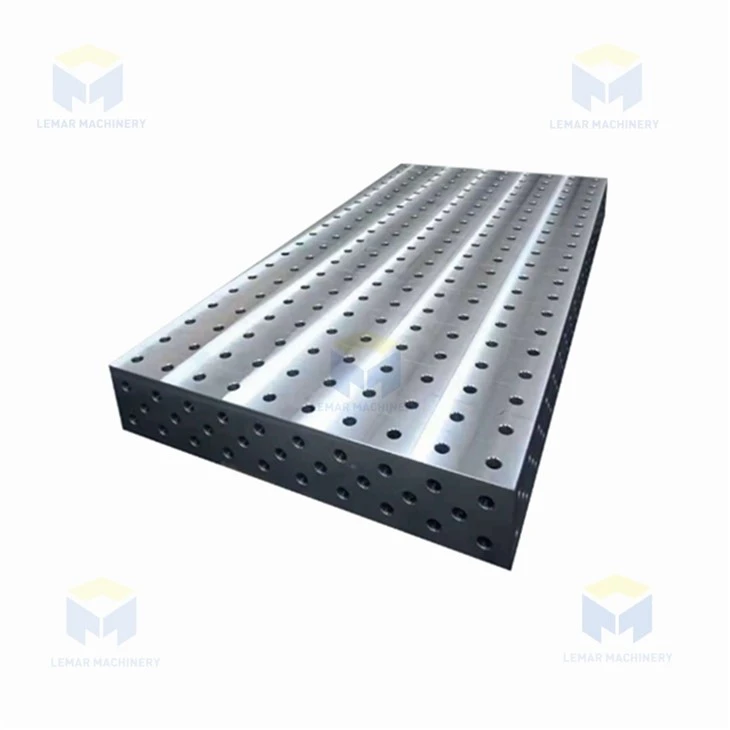

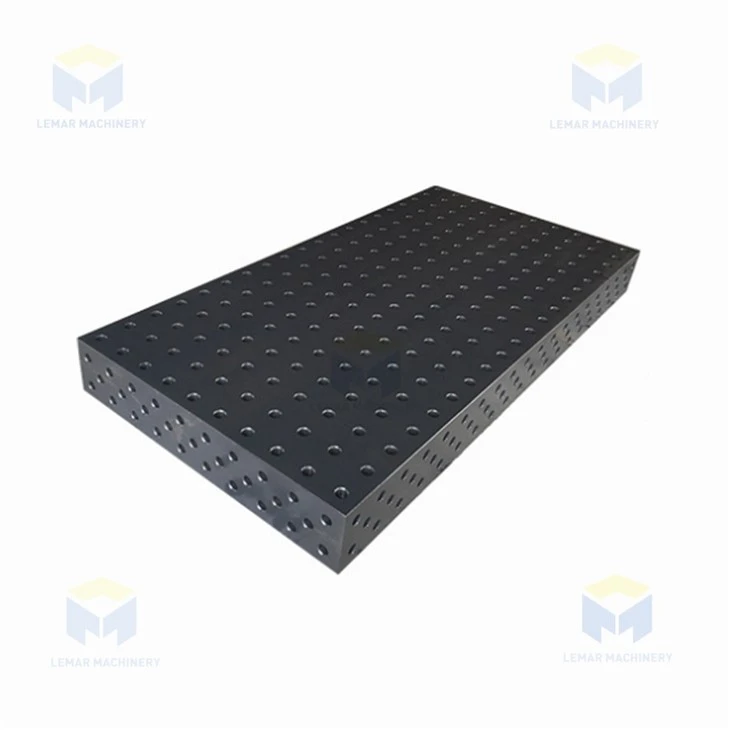

Modular Base: A rigid platform (often steel) with standardized grid holes or T-slots for attaching components.

Adjustable Clamps: Fine-tunable clamps (manual or pneumatic) to grip parts without deformation.

Locators: Pins, blocks, or magnetic units ensuring parts are correctly positioned.

Supports: Adjustable arms or jack stands to stabilize parts at varying heights.

Toggle Clamps: Quick-release mechanisms for rapid securing of workpieces.
