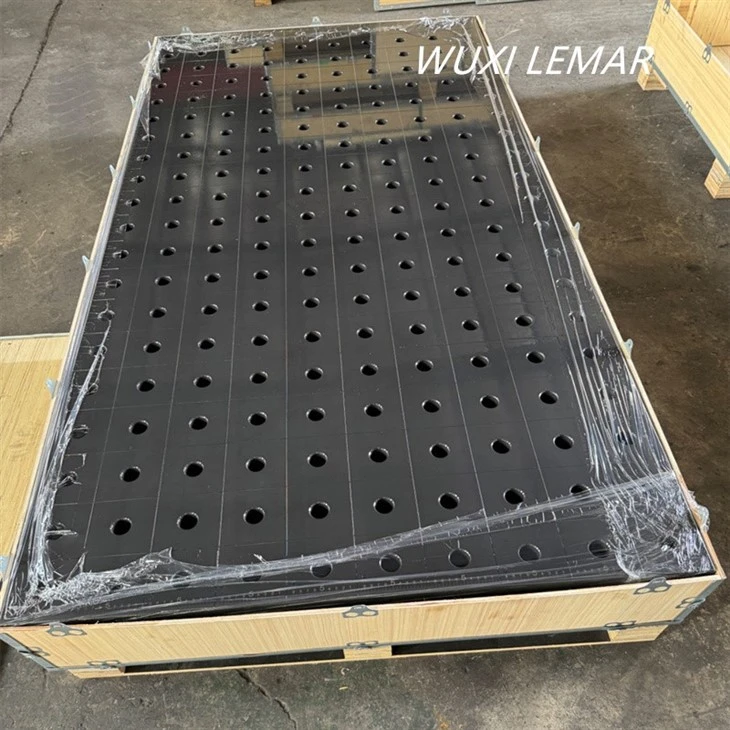

Grid Line Hole Array Welding Table
Grid Line Hole Array Welding Table refers to a cast iron or steel workbench with high-precision, equally spaced, standardized threaded holes or unthreaded holes machined on its tabletop (platform).

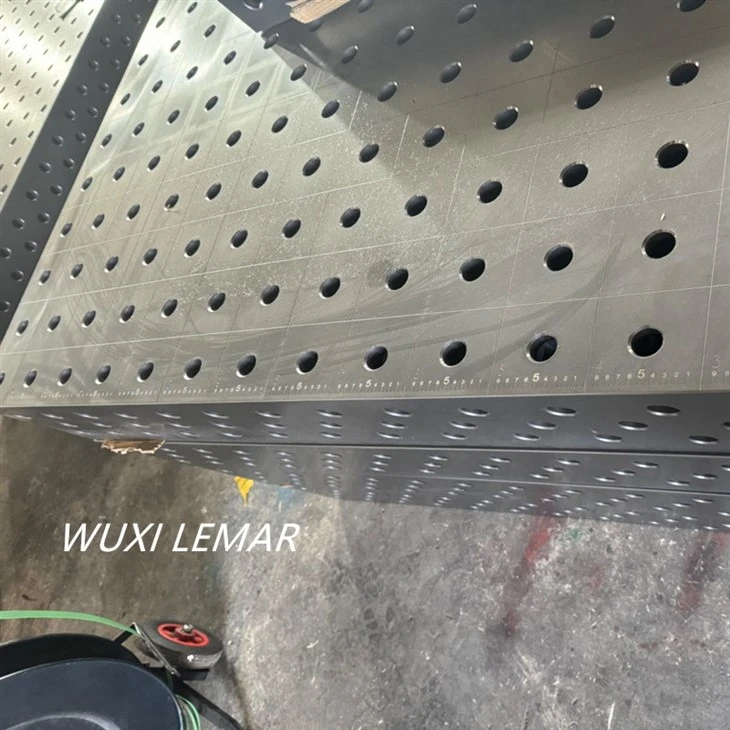

• Grid Line: It means the tabletop has a standardized coordinate grid, providing an accurate reference for positioning.
• Hole Array: It refers to these holes arranged neatly in the X and Y directions at fixed intervals (such as 50mm, 100mm).
DM Eva directly for quotation and more details↓↓↓
Products Types
Products Size
Related Accessories
Different types of Welding table accessories
Feel free to contact Eva Summer for more details.
Screw clamp
Locating bar
Magnetic bolt
Disc horizontal quick clamp
Locking pins
Angle ruler
Products Features
Main Structure and Characteristics
| Component | Features & Specifications |
|---|---|
| Tabletop | Typically made of high-strength cast iron or precision steel to ensure high rigidity, stability, and vibration resistance. Minimizes long-term deformation. |
| Hole System | D28 Series (Most Common Standard): • Hole Spacing: 50mm or 100mm • Hole Diameter: 28mm • Per-hole Features: A precision-machined locating land surrounds each hole, with two threaded holes (M16 or M12) for securing accessories. Other Series: • e.g., D16 Series (16mm hole diameter, 50mm spacing), suitable for smaller workpieces. |

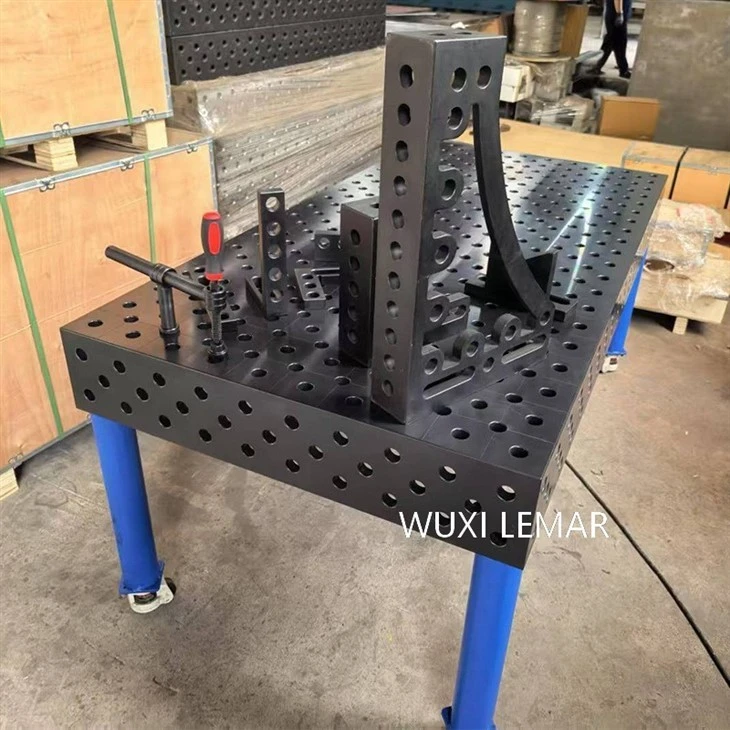

| Standard Accessories | The system includes a wide range of standardized accessories, such as: • Locating Elements: Locating blocks, dowel pins, V-blocks, angle plates. • Clamping Elements: Quick-action clamps, toggle clamps, screw clamps. • Supporting Elements: Support columns, blocks, extension pieces of various heights. • Connecting Elements: Dowel pins and fastening bolts for joining multiple tables into larger work areas. |

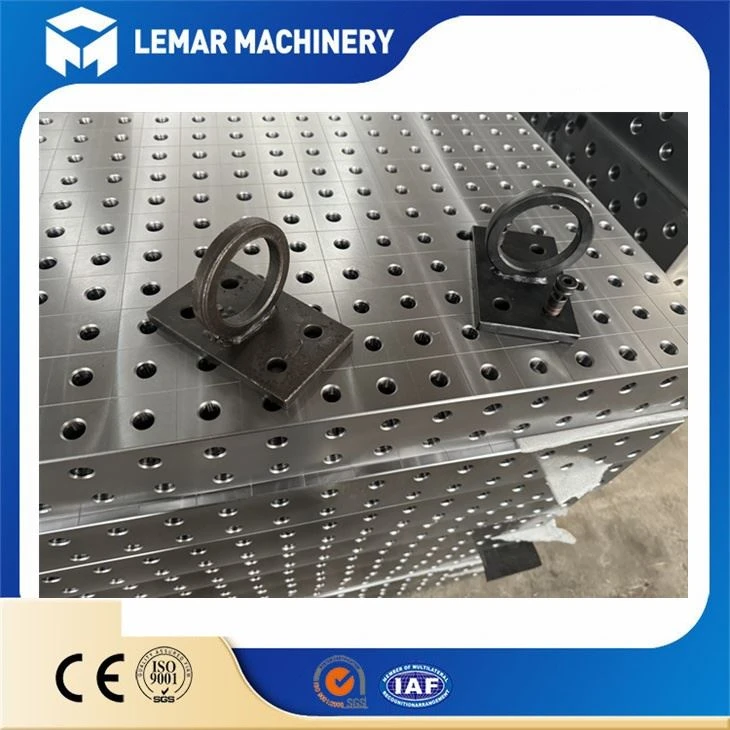

Products display
Why choose us?
Related Certification
Customer Review
Contact us
Grid Line Hole Array Welding Table is more than just a table with holes; it is a complete tooling system that revolutionizes production methods. It transforms the traditional "dedicated rigid tooling" into "flexible and reconfigurable tooling," perfectly adapting to the needs of modern manufacturing for multiple varieties, small batches, high quality, and short delivery times. For any industry involving the manufacturing, welding, and assembly of metal structural parts, it is an important tool to enhance core competitiveness.
If you are looking for a reliable 3D Welding Table supplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
