Product Overview

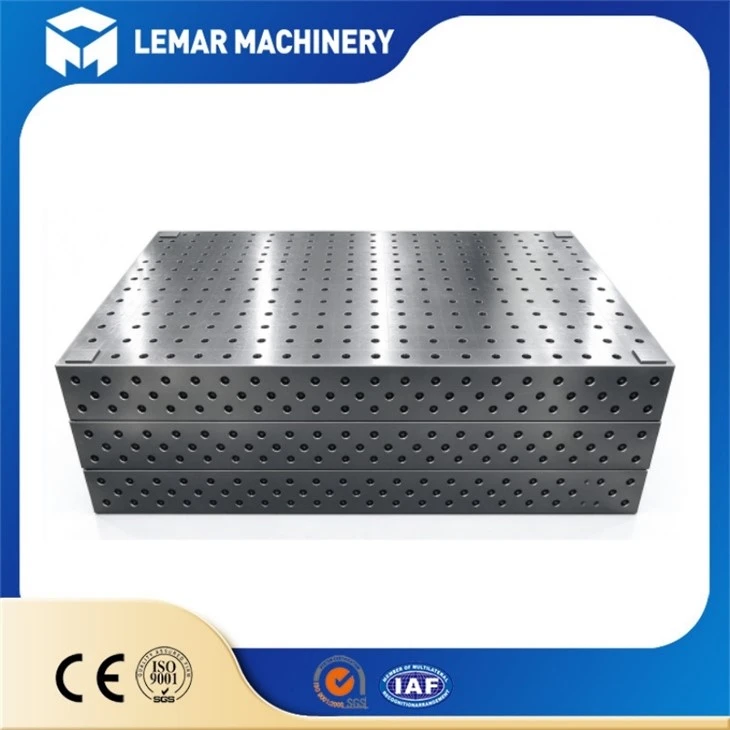

Industrial 3D Welding Tables are universal multi-surface fixturing platforms built to meet the diverse production demands of modern metal fabrication workshops. Featuring standard D28 hole grid layout with 100 by 100 mm spacing on top and four vertical side panels, these tables deliver flexible three-dimensional clamping for mixed batch manufacturing. Each table body undergoes stress relief processing before nitriding treatment to stabilize geometry under cyclic thermal loads from continuous welding work. Reinforced internal rib construction improves overall rigidity to sustain heavy workpieces and strong clamping forces. Operators can combine standard locating accessories freely to set up fixtures quickly without custom machined jigs. This platform adapts seamlessly to manual welding cells and automated robotic stations for long term industrial operation.
Product Parameters
Feel free to contact our sales engineer:Eva(Email:evasummer@lemarmetal.com)
Key Features
1.Multi batch production adaptability. Universal 3D hole grid allows fast fixture reconfiguration when switching between different workpiece models, cutting workshop downtime significantly.
2.Reinforced ribbed internal framework. Optimized under-table rib structure disperses heavy load evenly and minimizes deflection under large clamping pressure.
3.Full five face nitriding protection. All perforated working surfaces receive nitriding treatment to resist welding spatter scratches and pin indentation in busy industrial environments.
4.Scalable table layout design. Multiple separate units can be linked together to build extended working platforms for oversized assemblies in large production workshops.
5.Dual material selection for varied industrial scenarios. Steel plate offers cost effective delivery while cast iron provides stronger vibration suppression for high precision fabrication.
6.Workshop friendly maintenance design. Smooth non stick surface reduces spatter adhesion and simplifies daily cleaning to preserve table accuracy during continuous shifts.
Products Application
These industrial 3D welding tables serve metal fabrication workshops for machine frame assembly railing fabrication conveyor bracket welding energy equipment component production and heavy sheet metal assembly. They fit mixed small batch and medium volume manufacturing. The tables work for manual welding stations and can integrate into robotic welding cells. They are also widely used for trial fixture testing and post weld dimensional inspection.
Welding Table Fit Up Kit
We have full accessories list and set list,contact us for documents download.
To maximize functionality of your D28 welding table, a full range of modular accessories is available. These include D28 locking clamps, positioning angles, support blocks, stop pins, V-blocks, and quick-release handles.
Company Certification
Customer Feedback
Packaging & Shipping
FAQ
Q1:What production types suit industrial 3D welding tables best?
They perform excellently in multi variety small batch workshops where product designs change often, removing the high cost of dedicated one off jigs.
Q2:Can these tables operate continuously across multiple daily production shifts?
Yes. The nitrided surface and stress relieved body are engineered for multi shift workshop use under proper cleaning and load control.
Q3:Are fixtures from different D28 tables fully interchangeable?
All accessories follow unified D28 dimensional standards. Clamps stops and pins can be moved freely between separate 3D tables in your workshop.
Q4:Is custom table dimension available to fit existing workshop space?
We provide customized length width and working height options to match your factory layout and workpiece size requirements.
Welcome to contact us
Share your workshop layout and workpiece batch information with our engineering team. We will provide fixture layout suggestions, full accessory quotation and tailored technical solution for your Industrial 3D Welding Tables project.
