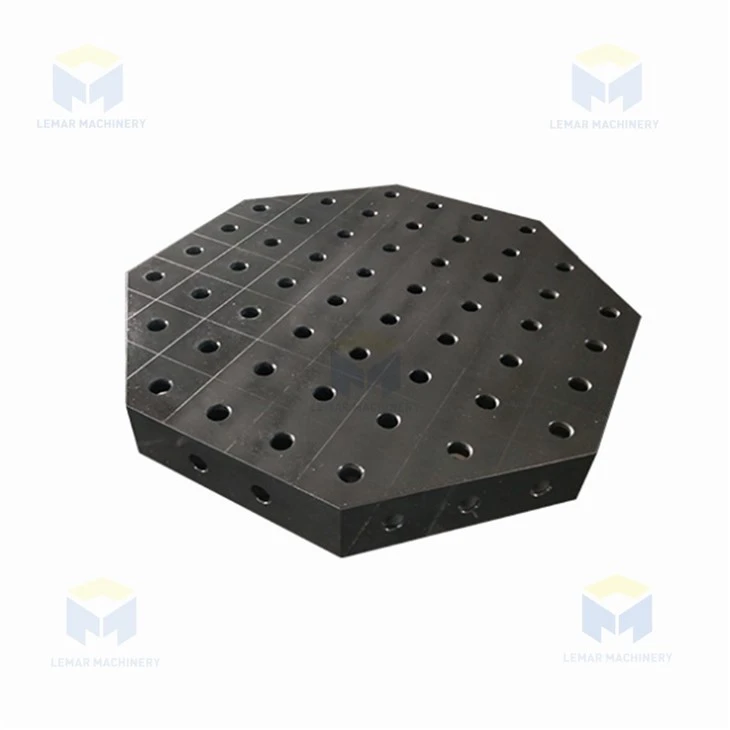

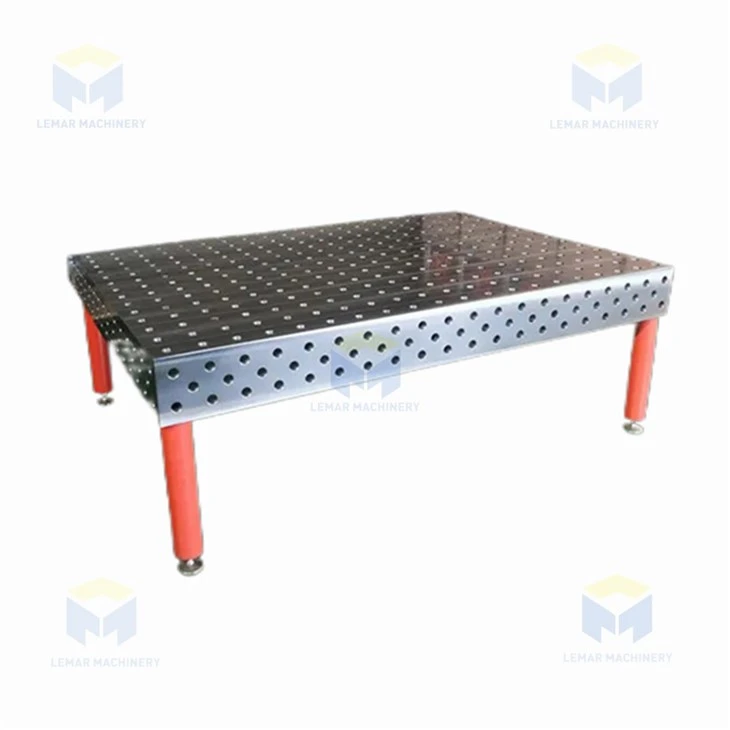

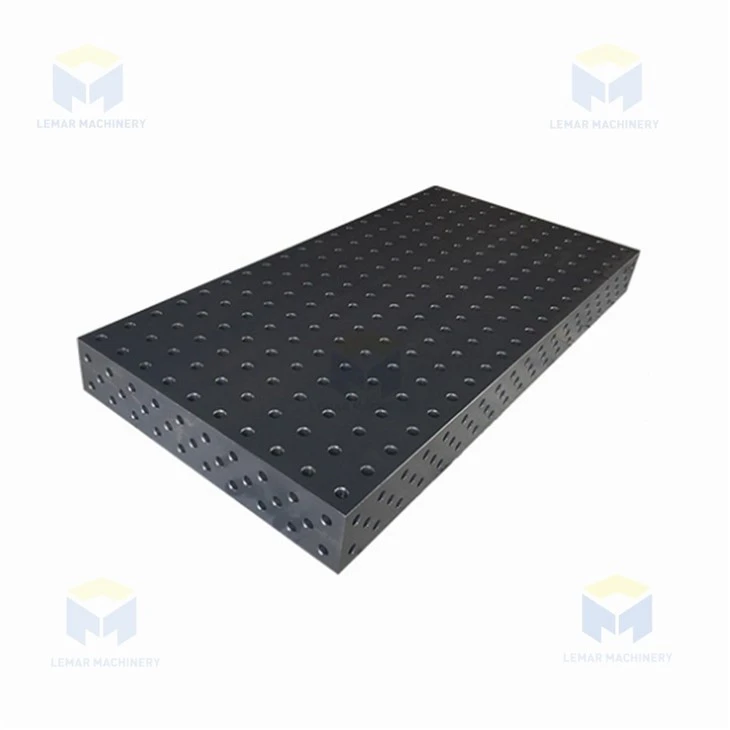

Modular System 3D Welding Table With 100*100mm Grid
Features
1. Modular design
Using standardized components, you can freely expand or adjust structure according to requirements to adapt to different sizes and complexity of the artifacts.
Support quick assembly and disassembly, easy transportation or reconfiguration of workspace.
2. 100*100mm grid system
The table is covered with a precise array of holes (usually φ28mm or φ 16mm), spaced at 100mm, to form a standardized grid.

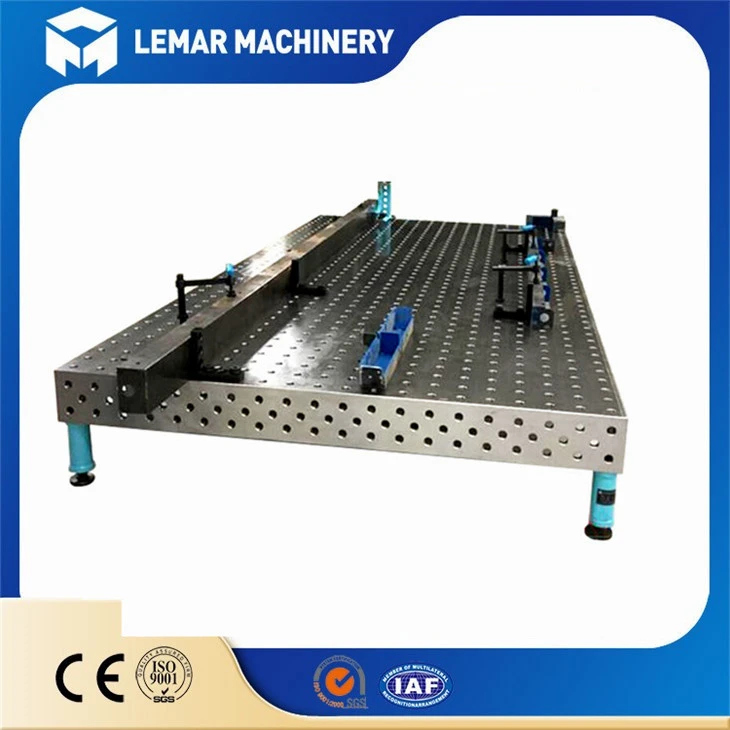

Provide three-dimensional positioning capability, through the clamp, positioning pin, support rod and other accessories, can be fixed workpiece in any direction (X / Y / Z axis), to ensure high precision alignment.
Products Parameters
Products advantages
About us
High accuracy: The grid system ensures repeated positioning accuracy (± 0.1mm level).
Efficiency improvement: Reduce the traditional tooling adjustment time, speed up the production rhythm.
Cost optimization: Modular design reduces long-term tool input to meet multi-project needs.
Modular System 3D Welding Table With 100*100mm Grid is an ideal choice to enhance the flexibility and professionalism of metalworking, especially suitable for the small and medium-sized enterprises or studios pursuing high efficiency and precision.
