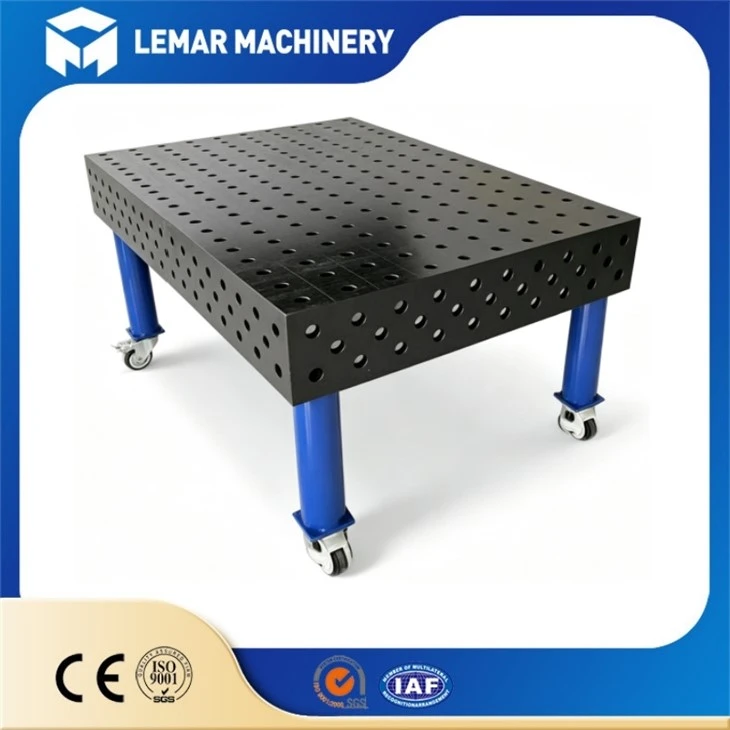

Product Overview
Our Pro Welding Bench is engineered for professional welders and fabricators who demand precision, durability, and versatility in their daily work. Built with a heavy-gauge steel frame and a precision-ground nitrided tabletop, this bench delivers exceptional flatness of ±0.1 mm per meter and surface hardness reaching HV 600–800. It supports up to 1500 kg of evenly distributed load while resisting heat deformation, welding spatter adhesion, and mechanical wear. The modular grid hole system works seamlessly with a full range of clamps, stops, and positioning accessories, allowing quick setup changes for workpieces of various shapes and sizes.

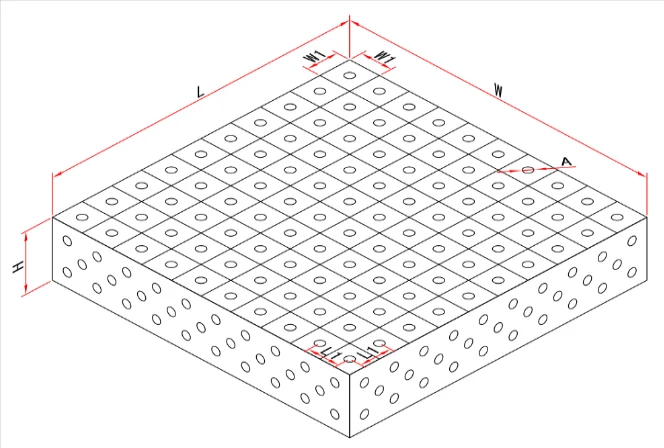

Main Size for choosing
Feel free to contact our sales engineer:Eva(Email:evasummer@lemarmetal.com)
|
System |
Material |
Size(mm) |
Weight(kg) |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1000*1000*200/150 |
300 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1000*2000*200/150 |
520 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1200*1200*200/150 |
400 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1200*2400*200/150 |
800 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1500*1000*200/150 |
420 |
|
D28/D16 |
HT300 cast ironQ355 steel |
1500*1500*200/150 |
600 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1500*2000*200/150 |
800 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1500*3000*200/150 |
1150 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
2000*3000*200/150 |
1500 |
|
D28/D16 |
HT300 cast ironQ355 steel |
2000*4000*200/150 |
2100 |
Product Features and application
Exceptional Surface Durability
The nitrided steel surface reaches HV 600-800 hardness, resisting scratches, welding spatter adhesion, and heat deformation even under continuous high-temperature use.
Precision Flatness Guarantee
Precision machining ensures ±0.1 mm per meter flatness, providing a reliable reference surface for accurate part alignment and consistent weld quality.
Heavy-Duty Load Capacity
The reinforced steel frame supports up to 1500 kg, handling large workpieces and heavy fixtures without flexing or structural compromise.

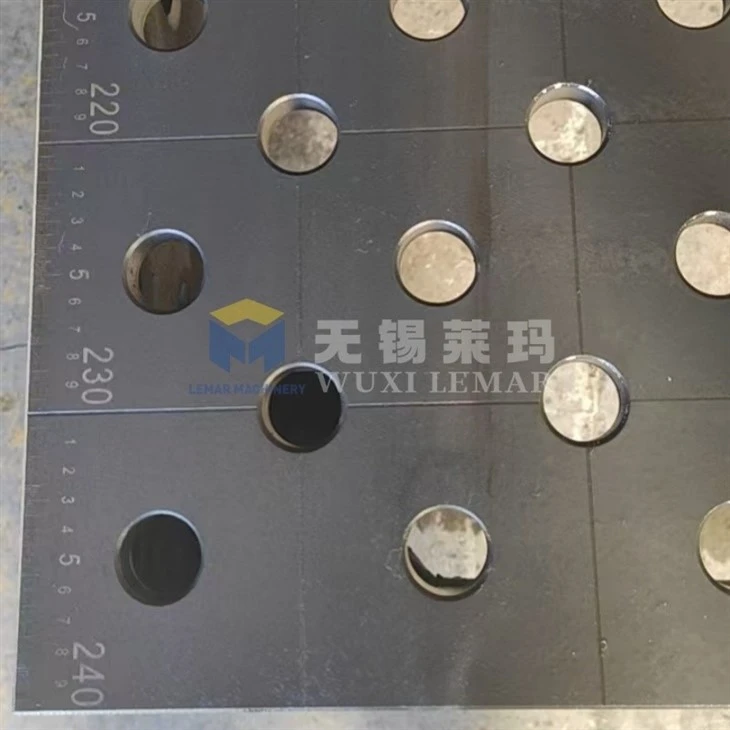

Modular Fixturing System
The grid hole pattern accepts a full range of clamps, stops, and positioning tools, enabling quick setup changes for diverse workpiece shapes and sizes.
Heat and Spatter Resistance
The nitrided surface prevents welding spatter from sticking permanently, allowing easy cleanup and maintaining a clean working surface over long-term use.
The Pro Welding Bench serves a wide range of industrial and workshop settings. It is commonly used in metal fabrication shops for general welding and assembly work, automotive repair facilities for frame straightening and component fabrication, and manufacturing plants for production line assembly and quality inspection. It also supports educational and training environments where students practice welding techniques on a stable, professional-grade surface. Additional applications include aerospace component fabrication, pipefitting workshops, prototype development labs, and custom furniture manufacturing. Wherever precise metal positioning and reliable work support are required, this bench delivers consistent performance.
Welding Table Fit Up Kit
We have full accessories list and set list,contact us for documents download.
To maximize functionality of your D28 welding table, a full range of modular accessories is available. These include D28 locking clamps, positioning angles, support blocks, stop pins, V-blocks, and quick-release handles.
Company Certification
Customer Feedback
Over the years, our welding platforms have received zero negative reviews, and our customers have always been very impressed with their quality.
FAQ
Q1: Is the nitrided surface safe for all types of welding?
A: Yes, the nitrided surface is compatible with MIG, TIG and spot welding. It resists heat damage and spatter adhesion without releasing harmful substances under normal welding temperatures.
Q2: Can I adjust the bench height to match my workflow?

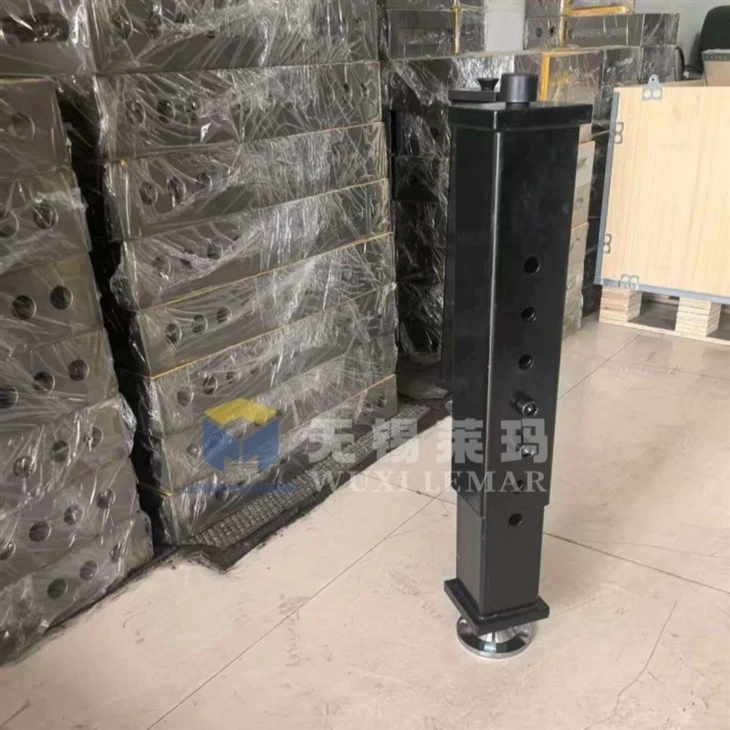

A: We offer both fixed-height and adjustable-height models. The adjustable version supports a height range of 550 mm to 750 mm with secure locking positions for ergonomic working posture.
Q3: How do I clean welding spatter off the tabletop?
A: The nitrided surface prevents spatter from bonding deeply. Most spatter can be removed with a wire brush or light scraping. For heavier buildup, a gentle grinding pad will restore the surface without damaging the nitrided layer.
Q4: What is the maximum weight the bench can support?
A: The standard model supports up to 1500 kg evenly distributed across the tabletop. Custom heavy-duty versions with higher load capacity are available upon request.
Q5: Are the grid holes compatible with standard welding clamps?

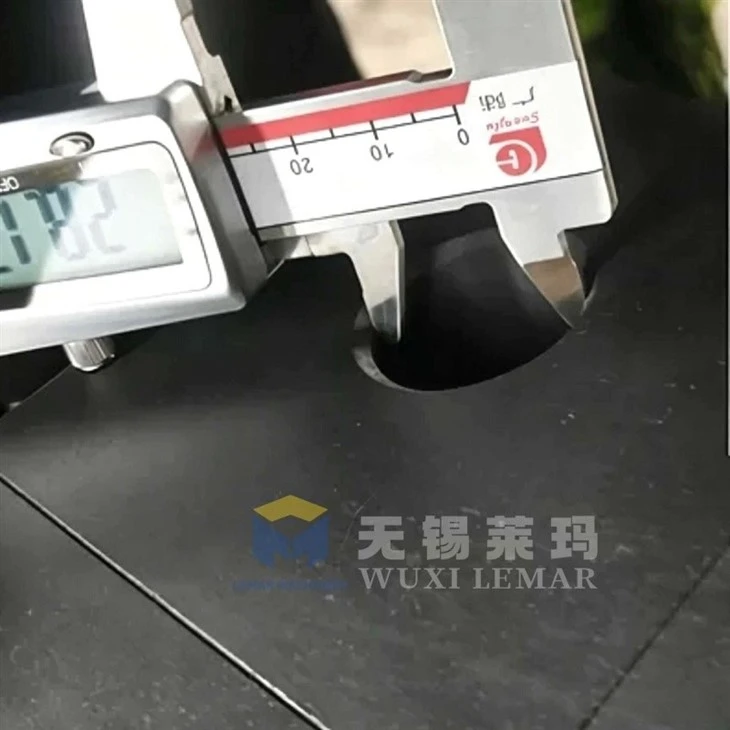

A: Yes, the 28 mm and 16 mm grid hole patterns match industry-standard clamp shank sizes. We also offer a full line of compatible fixturing accessories for purchase.
Q6: Do you offer custom sizes or special configurations?
A: Yes, we provide custom dimensions, thickness upgrades, special hole patterns, and additional accessories such as vise mounts, shelf attachments, and grounding connectors to match specific workflow requirements.
Thank you for considering our Pro Welding Bench for your workshop or production facility. Our team is ready to answer detailed technical questions, provide custom configuration quotes, and help you select the right model for your specific applications. We offer worldwide shipping, professional after-sales support, and flexible MOQ terms for both single-unit and bulk orders. Reach out today with your project details, and our specialists will respond within 24 hours with a tailored solution that meets your welding and fabrication needs.
