Professional 3D Welding Table





Size of Lemar Welding Table

Products Display

Core Features

1. High-precision basic platform:
◦ Material: Professional 3D Welding Table is usually made of high-strength cast iron (good shock absorption, long-lasting precision) or pre-stretched steel plates (lightweight, high strength).
◦ Processing: Stress relief through annealing, and precision machining using large gantry milling machines to ensure the flatness of the working surface and the positional accuracy of the grid holes meet extremely high standards (such as flatness of ±0.05mm/m, hole spacing tolerance of ±0.05mm).
2. Standardized grid hole system:
◦ The table is regularly arranged with grid holes at standard intervals (commonly 100mm or 50mm). The mainstream standard is the D28 system (28mm diameter round holes with conical lock holes) or the square hole system.
◦ These holes are the basis for positioning and locking all tooling accessories.
3. Complete modular tooling system:
◦ Equipped with a set of standardized fixture libraries that are fully compatible with the platform hole system, including: positioning blocks, support blocks, angle devices, pressing arms, quick locking pins, bolts and nuts, hydraulic/pneumatic fixtures, etc.
◦ Accessories can be freely combined like "industrial Lego" to build a variety of special tooling.
4. Excellent repeatability and consistency:
◦ Once the tooling plan is designed for a certain workpiece, the positions of all its clamping points can be accurately recorded and reproduced, ensuring the dimensional consistency of each product in mass production.

Products Workflow

Typical Workflow
→. Scheme Design: Engineers plan positioning, supporting, and clamping schemes on specialized software or platforms based on the 3D digital model of the workpiece.
→. Accessory Selection: Select the required fixtures from the standard library according to the scheme.

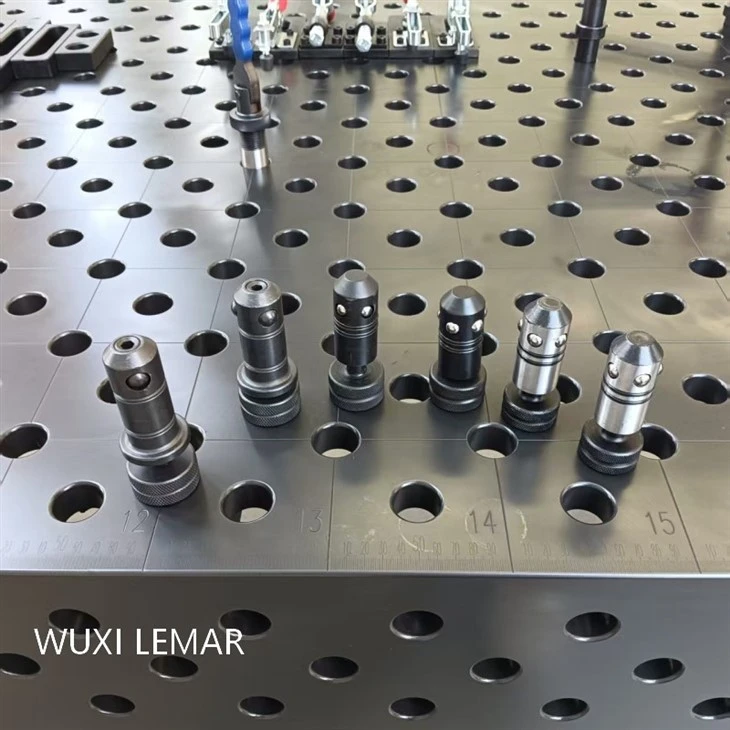

→. Quick Setup: Use quick locking pins (which can be locked with a 1/4 turn) to accurately fix the accessories on the grid holes of the platform, and construct a three-dimensional tooling.
→. Workpiece Clamping: Place the workpiece and easily lock it using various compressors (manual, hydraulic, or pneumatic).
→. Operation Execution: Perform welding or assembly.
→. Conversion and Reset: After the operation is completed, loosen the fixtures, pull out the locking pins, and Professional 3D Welding Table quickly returns to a blank state, ready for the next task.

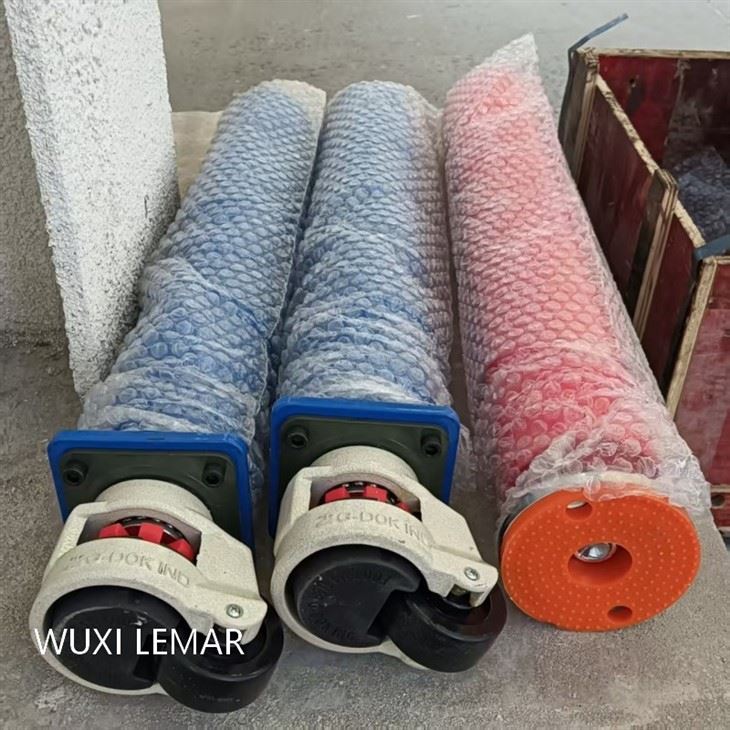

Which transportation method we adopt?

We usually send Professional 3D Welding Table abroad by sea.

At the same time, we will provide you with various documents required for customs clearance at the destination.
We usually use CIF/FOB/EXW trade terms, and if you have special requirements, we will also solve them for you.
