Steel Fixture Table For Welding
"Steel Fixture Table For Welding" is literally translated as "a steel fixture workbench for welding". It refers to work platforms made of steel, used for positioning, supporting, and clamping workpieces during the welding process.
The core function of such workbenches is to serve as the installation base for welding fixtures, ensuring that workpieces maintain the correct position and posture during welding, thereby guaranteeing precision, improving efficiency, and controlling deformation.
Products parameters

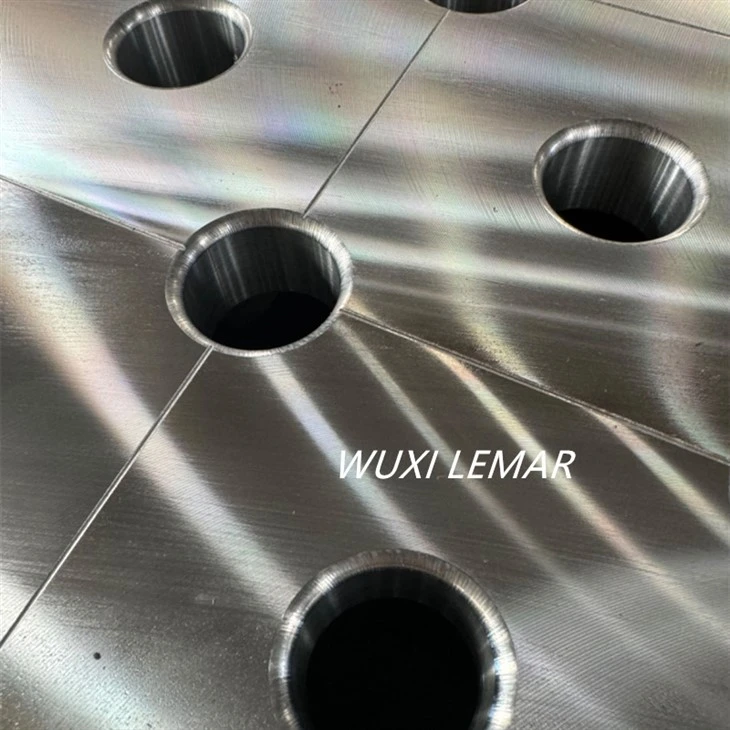

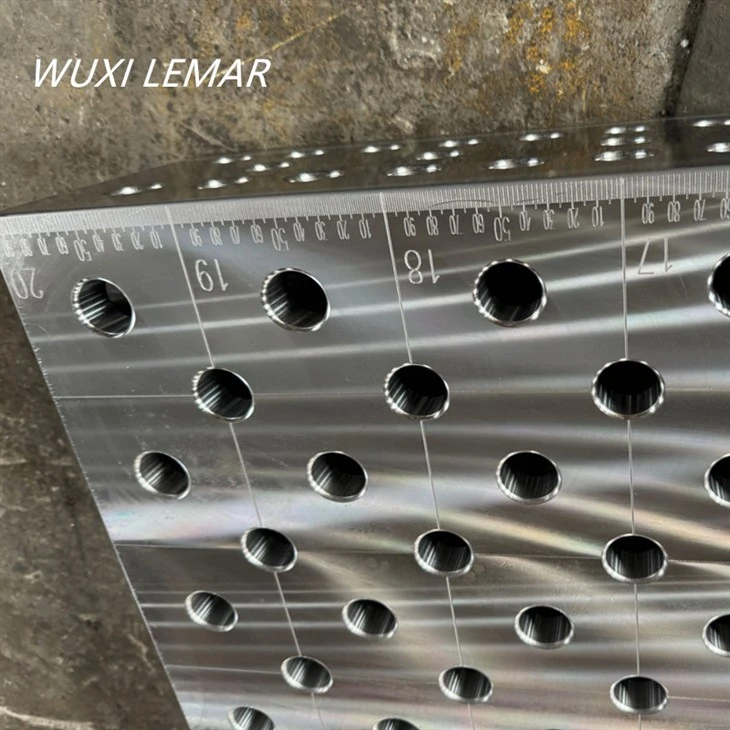

Products Details
| D28 mm | D16 mm | |||
| 800*1000*200 | 1500*1500*200 | 2000*5000*200 | 800*1000*100 | 1500*1500*100 |
| 800*1200*200 | 1500*2000*200 | 2500*4000*200 | 800*1200*100 | 1500*2000*100 |
| 1000*1000*200 | 1500*2500*200 | 3000*3000*200 | 1000*1000*100 | 1500*2500*100 |
| 1000*1200*200 | 1500*3000*200 | 3000*4000*200 | 1000*1200*100 | 1500*3000*100 |
| 1000*1500*200 | 1500*4000*200 | 1000*1500*100 | ||
| 1000*2000*200 | 2000*2000*200 | 1000*2000*100 | ||
| 1000*3000*200 | 2000*2500*200 | 1000*3000*100 | ||
| 1200*1200*200 | 2000*3000*200 | 1200*1200*100 | ||
| 1200*2400*200 | 2000*4000*200 | 1200*2400*100 | ||
Production display
Products Application
Basic workflow
--Steel Fixture Table For Welding
★. Design/select fixture scheme: Determine positioning and clamping points based on the workpiece.
★. Install fixtures: Weld or fix special fixtures on the tabletop (traditional type), or assemble and install modular accessories on the matrix hole system (flexible type).
★. Clamp the workpiece: Place and fix the workpiece.
★. Perform welding.
★. Switch products: For the traditional type, the entire workbench needs to be replaced; for the flexible type, only the accessories need to be rearranged.
Products Advantages
►Summary of Advantages (especially modern flexible types)
1. Cost-effectiveness: One system replaces multiple sets of special fixtures, saving a significant amount of tooling costs in the long run.
2. Production agility: Enables quick line changeovers, shortens the tooling preparation time for new products, and responds to market changes.
3. Quality assurance: High-precision positioning ensures the consistency of welding dimensions, reducing deformation and rework.
4. Promotion of automation: Steel Fixture Table For Welding provides a stable, accurate, and programmable fixture foundation for robotic welding.
5. Optimization of management: Reduces tooling inventory, improves workshop space utilization and standardization levels.
Related Certification
Our Service
After-sales Service
We promise to provide comprehensive and timely technical support and after-sales guarantees:
Warranty period: Usually, a 12-month quality guarantee period is provided (starting from the date of qualified acceptance of the equipment). Free repair or replacement is offered for defects caused by materials or manufacturing processes.
Technical support:
Remote guidance: 7x24-hour technical support via phone, WeChat or email is provided to answer questions during installation and use.
On-site service: For complex installation, commissioning or faults, engineers can be dispatched to provide on-site technical services (travel expenses may be incurred depending on the situation).
Training services: According to needs, training on product use and maintenance can be provided for customers' operating and maintenance personnel.
Accessories supply: All standard accessories (locking pins, support blocks, connecting plates, etc.) and vulnerable parts are supplied for a long time to ensure the sustainable use of the equipment.
Repair and transformation: Provide services such as precision repair of the platform, replacement of worn parts, and function expansion and transformation according to new process requirements.
Customer Review
FAQ
FAQ
01.What's the lead time for orders?
02.How to choose the material for a welding platform
• Emphasis on cost-effectiveness and general heavy loads: Choose structural steel platforms that have undergone sufficient stress relief treatment.
03.Which payment methods are supported?
04.What documents do you provide for export?
05. How do I place an order?
06.Would it be possible for us to visit your factory ?
Steel Fixture Table For Welding is the "cornerstone" of the welding process. Its development has evolved from the traditional mode of being static and specialized to a modern system that is dynamic, modular, and flexible.
For modern manufacturing, choosing a suitable modular flexible welding workbench is not just about purchasing a tool, but also about introducing a manufacturing philosophy of "lean production" and "rapid response". Through standardization and reconfigurability, it partially transforms welding from a skill-dependent "craft" into a precisely plannable and efficiently replicable "manufacturing process", and it is one of the key infrastructures for enterprises to enhance their core competitiveness.
