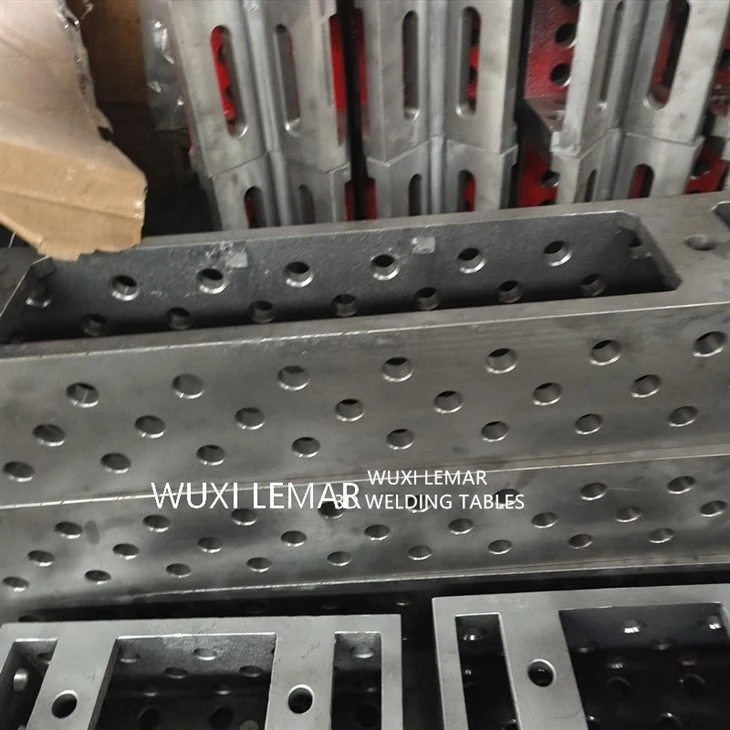

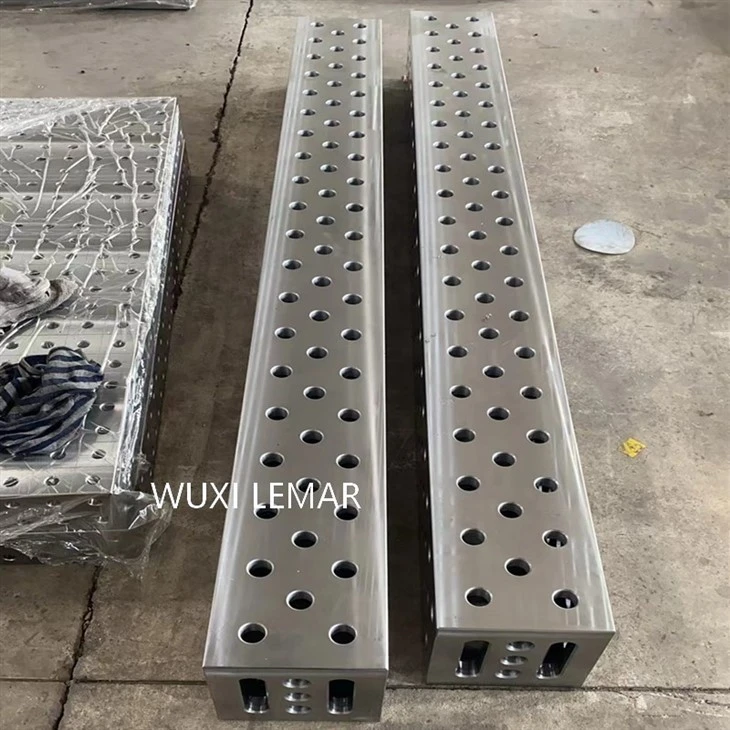

U Shape Square Box 3D Welding Table Expanded Accessories

U Shape Square Box

Introduction

U-Shape Square Box 3D Welding Table Expanded Accessories are a type of extended fixtures and functional accessories specifically designed for modular 3D welding workbenches. They are mainly used to enhance the flexibility, positioning accuracy, and clamping efficiency of the welding table. Their core features are the U-shaped structure and square box design, which can be combined into welding fixtures at various angles, suitable for complex welding, assembly, and inspection tasks.





Core Advantages

Three-dimensional flexibility: Through the combination of U-shaped and square modules, workpieces can be fixed at any angle.
High precision: The repeat positioning accuracy can reach ±0.1mm, suitable for precision welding.
Time-saving: Reduces adjustment time by more than 80% compared to traditional welding fixtures.
Strong compatibility: Compatible with mainstream brand modular welding tables



Name D16	No.	Spec	Weight(kg)
U shape	LM1622105	150*100*100	13
	LM1622106	300*100*100	26
	LM1622107	500*100*100	45
	LM1622108	800*100*100	70



Name D28	Spec	Name D28	Spec
U shape	500x200x200	U shape	2000x200x200
	1000x200x200		2400x200x200
	1200x200x200		3000x200x200
	1500x200x200		4000x200x200

Products Description

Product Application

Where do we use U-shaped square box?



Typical Application Scenarios
• Automotive/Aerospace Welding: Used for the positioning of complex structures such as vehicle body frames and engine mounts.
• Steel Structure Processing: Welding of H-shaped steel, square pipes, metal boxes, etc.
• Robot Automated Welding: Coordinates with robotic arms to achieve highly repeatable welding paths.
• Small-batch Custom Production: Quickly build temporary fixtures to reduce the cost of special fixtures.
