Product Overview

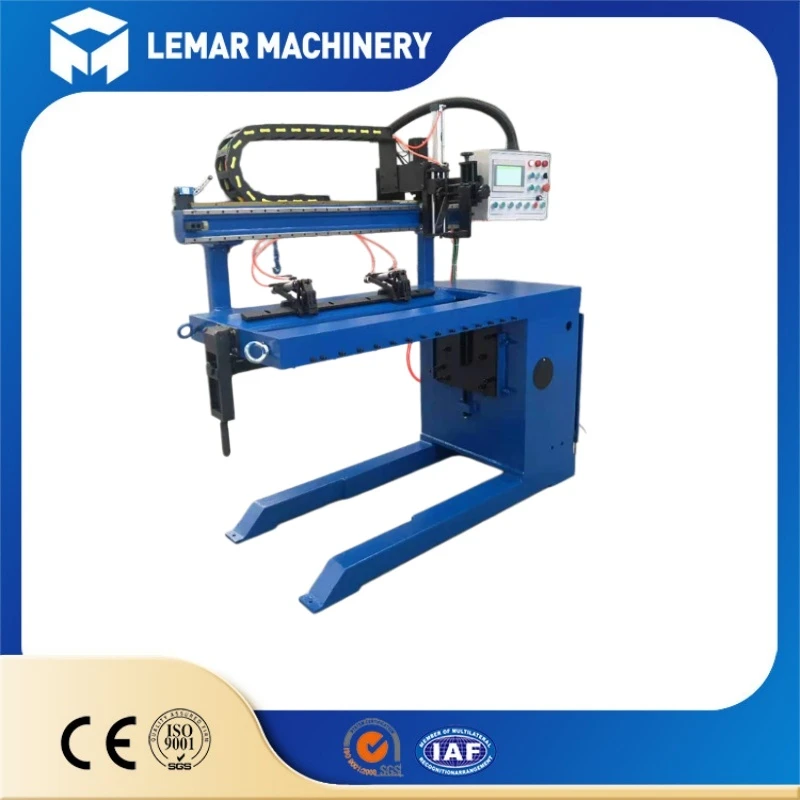

- This 1000mm Sheet Metal Welding Machine is Lemar's automatic longitudinal straight‑seam welder for shells, ducts, tanks and sheet splicing.
- High‑precision servo‑driven guide guarantees stable 1000‑mm welding travel.
- Supports TIG/MIG/MAG/plasma. Back‑argon protection avoids oxidation on stainless steel, aluminum and galvanized sheets.
- Ideal for sheet‑metal, pressure vessel, HVAC, new‑energy and food‑container manufacturing.
Technical Parameters Table
| Item | Specification |
|---|---|
| Model | ZF-1000 |
| Max Welding Length | 1000mm |
| Workpiece Diameter Range | 95mm–750mm |
| Welding Sheet Thickness | 0.3–6.0mm |
| Welding Mode | TIG / MIG / MAG / Plasma Optional |
| Control System | PLC + Touch Screen |
| Welding Speed | 0.2–2.5m/min (Stepless Adjustable) |
| Clamping System | Pneumatic Water-Cooled Copper Clamp |
| Working Air Pressure | 0.6–0.8MPa |
| Input Voltage | 380V / 50Hz / 3 Phase |
| Rated Power | 8.0KW |
| Applicable Materials | Stainless Steel, Carbon Steel, Aluminum, Galvanized Sheet |
| Warranty | 1 Years |
Core Advantages
Optimized for sheet‑metal welding. 1000mm stroke delivers consistent weld quality for long cylinders and ducts.
Anti‑deformation water‑cooled copper mould applies even pressure to lower sheet warpage.
PLC touch‑screen stores multiple workpiece parameters for quick recall. Fault self‑diagnosis cuts downtime.
Fits 0.3‑6.0 mm stainless steel, carbon steel, aluminum and galvanized sheet.
Supports custom fixtures, optional auto wire feeder and seam tracking for higher automation.
Durable build for mass production. International‑brand electric parts, easy‑to‑source spare parts for simple local maintenance.
Application Scenarios
‑ Sheet‑metal made water tanks and pressure vessel shells
‑ HVAC ventilation ducts and exhaust pipes from rolled sheet metal
‑ Solar equipment shells made by sheet metal rolling & welding
‑ Chemical and storage containers assembled from sheet metal
‑ Food‑industry stainless‑steel sheet housings
‑ Thin‑wall aluminum sheet cylindrical components

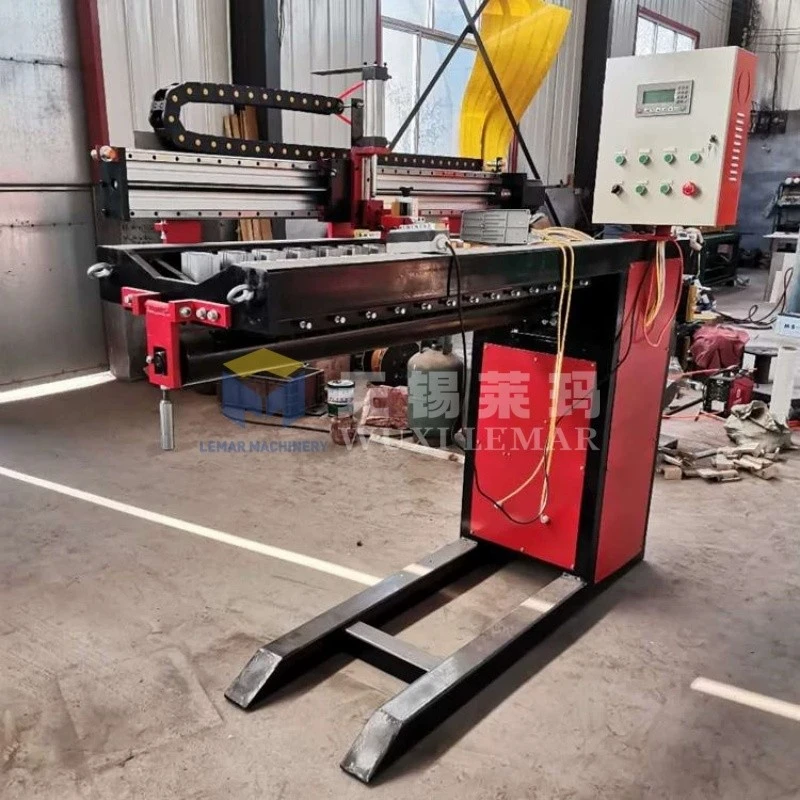

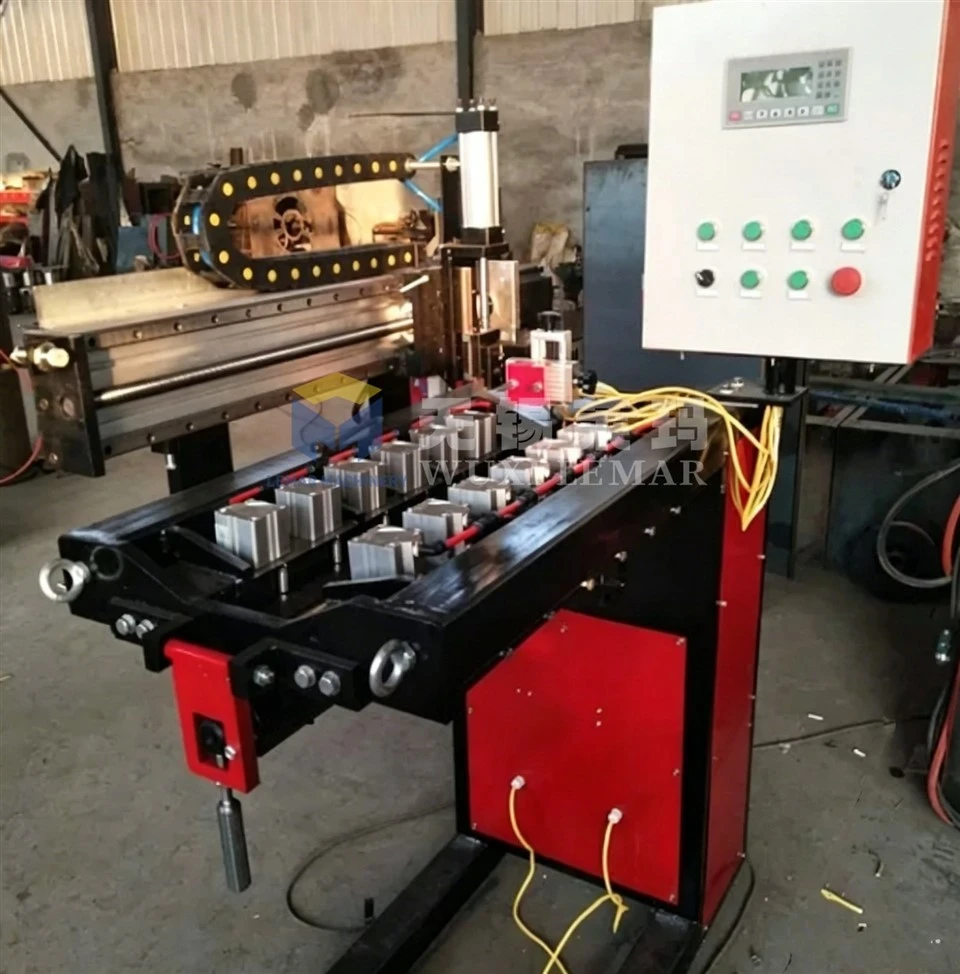

Main Structure
‑ Stress‑relieved anti‑vibration base for stable sheet metal welding
‑ Servo linear travelling assembly with precision linear guide
‑ Pneumatic water‑cooled copper pressing unit for sheet clamping
‑ Multi‑direction fine‑adjust welding torch holder
‑ PLC touch‑screen control cabinet with manual / auto switch ‑ Independent circulating water cooling system
‑ Reserved position for external welding power source
Product packaging
Product Certificate
Frequently Asked Questions
Q1: What welding sources work with this 1000mm sheet metal welding machine?
+
-
A1: It supports TIG, MIG, MAG and plasma welders.
Q2: Can it weld thin sheet below 0.5mm?
+
-
A2: Yes, back‑argon protection ensures oxidation‑free thin‑sheet welding.
Q3: Do you support custom fixtures for special workpieces?
+
-
A3: Custom fixtures are available, auto wire feeder and seam tracking are optional.
Q4: What is your delivery time?
+
-
A4: 7‑10 working days for standard model; 15‑20 working days for customized version after deposit.
Q5: What after‑sales support do you provide?
+
-
A5: 2‑year warranty, 24‑hour online technical support and spare‑parts supply.
