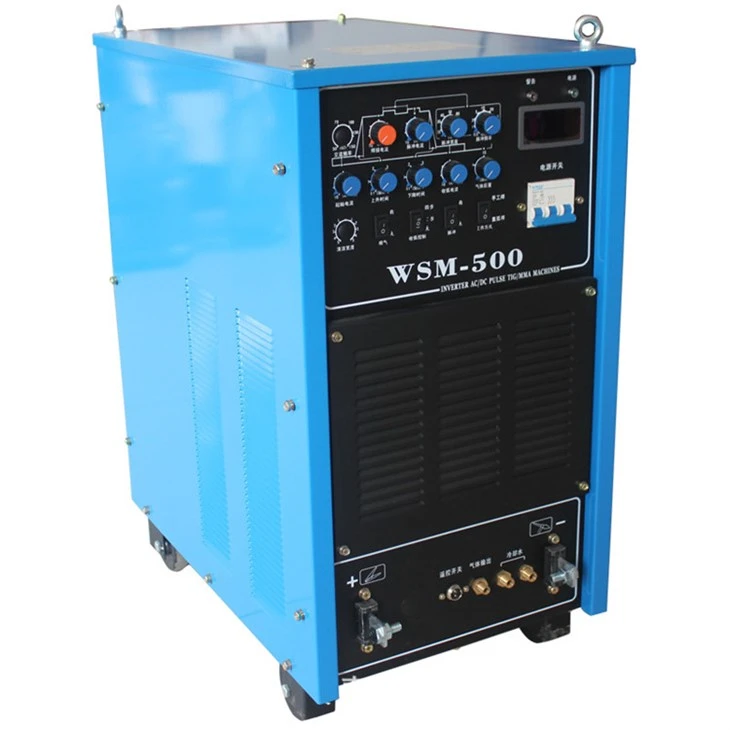

TIG 500 DC Inverter Welding machine
Main technical parameters:
Voltage: single phase AC220V 50HZ / 60HZ
Motor: DC permanent magnet
Speed: 1200 rpm
Wire disk size: 305 mm
Wire size: 0.8 mm, 1.0mm, 1.2mm, 1.6mm
Feed speed range: cm / min 0-600
Pulse feeding time: s 0-10
Pulse Pause Time: s 0-10
Delay start time: s 0-10
Delay power off time: 0-5 s
Step control: 2 steps, 4 steps
Dotted wire feeding speed: 500 cm / min
Dotted retraction speed: 100 cm / min
Speed control accuracy: 1%
Main functional features:
Automatic wire filling speed continuously adjustable;
Welding wire back pumping function;
Delay wire feeding function;
Pulse feeding function;
Continuous wire feeding function;
Double-drive wire feeding system, suitable for wire feeding of various diameter wire;
Suitable for various argon arc welding machines;
Multiply increase efficiency, reduce labor intensity and save labor and equipment costs;
Stable welding effect, improve the quality of welding products;
Independent and continuous adjustable functional parameters;
High precision of parameter adjustment;
Standardized products and components can be selected according to practical application;
It can be widely used in welding aluminum alloy, stainless steel, low carbon steel and non-ferrous metal.
Argon arc welding, laser welding and other welding process;
Can be applied to manual, automated, and robot welding processes.
