Product Overview

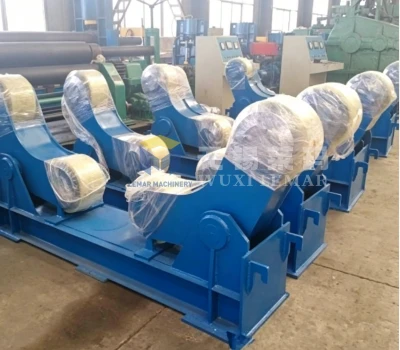

Our 20 Ton Self-Aligning Welding Rotator, a reliable type of Cylindrical Workpiece Turning Rolls, consists of driving unit and idler unit.
Its self-swing roller mechanism automatically adapts different diameters of cylindrical workpieces, eliminating repeated manual adjustment work.
With stable variable-frequency rotation, it works with SAW, MIG and TIG machines to realize consistent circumferential welding for heavy cylindrical components.
Greatly improve production efficiency for vessel and pipe fabrication workshops.
Technical Parameters
| Item | Specification |
|---|---|
| Rated Load Capacity | 20 Ton (20000kg) |
| Applicable Workpiece Diameter | Φ500mm ~ Φ3500mm |
| Roller Size | Φ350 × 170mm |
| Standard Roller Material | Polyurethane (PU) |
| Optional Roller Material | All Steel Roller |
| Linear Speed | 6 ~ 60 m/h, stepless adjustable |
| Driving Motor Power | 2 × 2.2 kW |
| Control System | Frequency Inverter Control |
| Input Voltage | 380V 3 Phase (Customizable 220V / 415V) |
| Rotating Direction | Forward & Reverse |
| Structure Type | Self-Aligning Automatic Swing Type |
Self-aligning swing design, specially built as Cylindrical Workpiece Turning Rolls, rollers automatically fit various cylindrical workpiece diameters
01
VFD stepless speed regulation, smooth low-vibration rotation to guarantee uniform girth welding quality
02
Standard PU rollers protect workpiece surface; steel rollers optional for high-temperature heavy welding conditions
03
Heavy thickened welded base frame, high rigidity for long-term 20-ton full-load operation
04

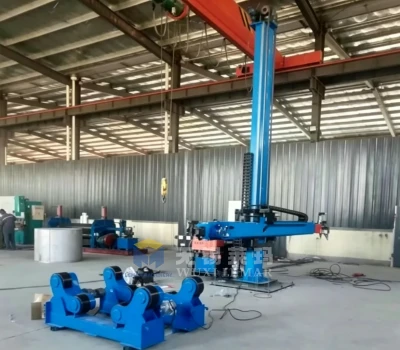

Independent control cabinet with emergency stop protection; can link with welding manipulator to build automatic welding line
Operation Guide
Before Use
Place the Cylindrical Workpiece Turning Rolls on flat solid ground, align driving and idler units on one central line. Check bolts and power supply.
Workpiece Placement
Set cylindrical workpiece on rollers; self-aligning mechanism swings automatically to support the component steadily.
Safety Reminder
Do not stand beside rotating cylindrical workpiece. Trigger emergency stop once abnormal vibration or noise occurs.
application Scope
These Cylindrical Workpiece Turning Rolls are widely used for circumferential welding of cylindrical workpieces:
1.Pressure vessels, boiler drums,
2.large heat exchangers,
3.storage tanks,
4.wind tower segments,
5.heavy industrial pipes.
Suitable workshops: pressure vessel factory,
1.boiler manufacturing,
2.new energy equipment,
3.heavy metal fabrication.
Roller Material Comparison Table
| Item | PU Roller (Standard) | Steel Roller (Optional) |
|---|---|---|
| Surface Protection | Protect workpiece, no scratches | Easy to scratch stainless steel/aluminum parts |
| Temperature Resistance | Suitable for normal temperature ≤80℃ | High temperature resistant |
| Anti-slip Effect | Good friction, not easy slipping | Ordinary anti-slip performance |
| Running Noise | Low noise | Relatively loud |
| Service Life | General | Long service life, wear-resistant |
| Recommended Use | Stainless steel, polished cylindrical vessels | High temp, heavy continuous cylindrical workpiece welding |
Product packaging
Company Certificate
Customer feedback
Frequently Asked Questions
Q1: What is the advantage of self-aligning Cylindrical Workpiece Turning Rolls compared with bolt adjustable type?
+
-
A1: Self-aligning rotator automatically adapts cylindrical workpiece diameters without manual adjustment, saving clamping time, more suitable for multi-spec cylindrical parts production. Bolt adjustable model requires manual roller spacing adjustment, cost-effective for fixed-size workpieces.
Q2: Can this equipment weld stainless steel cylindrical tanks?
+
-
A2: Yes. Standard PU rollers avoid scratches on stainless steel surfaces. Choose steel rollers if working under high welding temperature.
Q3: Can we customize power voltage?
+
-
A3: Yes, 220V, 380V, 415V three-phase available. Please confirm voltage before order.
Q4: Warranty policy?
+
-
A4: One-year warranty for motor, inverter and reducer (exclude man-made damage). Operation manual, wiring diagram and online technical guidance supplied.
What is the lead time and payment term for these cylindrical workpiece turning rolls?
+
-
A5: Standard lead time is 12~20 working days after deposit for 20 ton self-aligning models. Accepted payment terms: 30% T/T deposit in advance, 70% balance before shipment. L/C at sight is also acceptable for formal orders. We will update production progress and send test videos before delivery.
