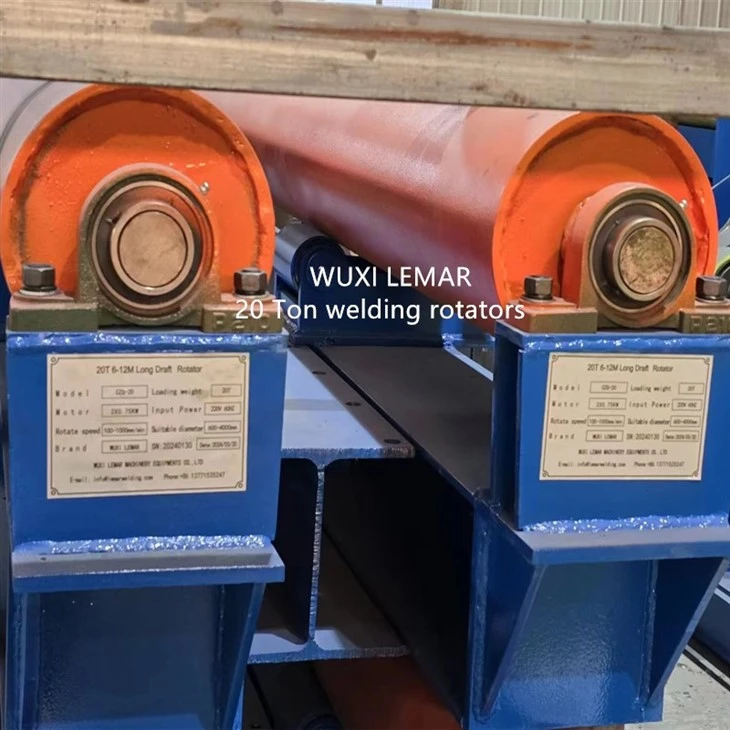

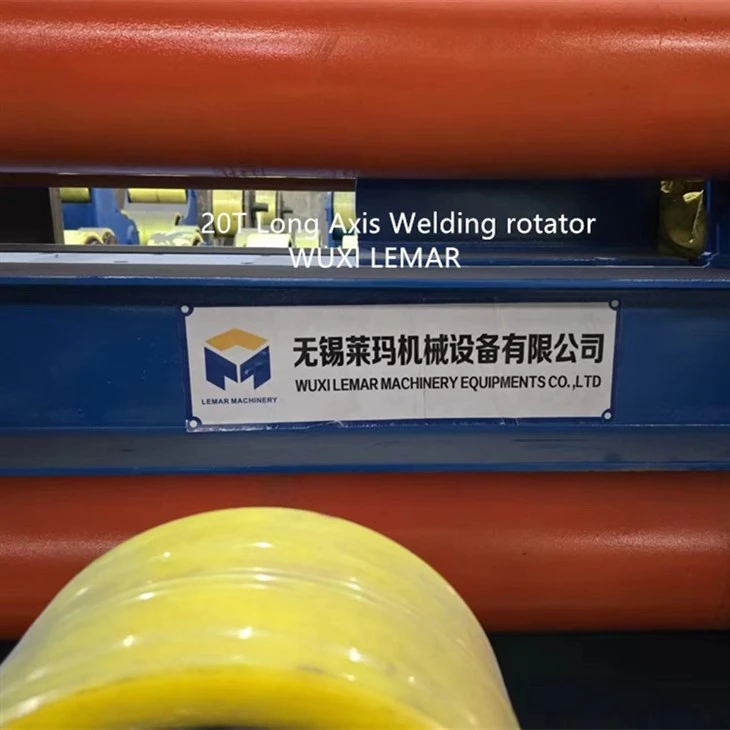

Long axis Self Aligning Rotators
Introduction
Self Aligning Rotators are widely used in the welding industry, especially playing an important role in welding pressure vessel products. Long axis Self Aligning Rotators are one of them which are specially designed for long workpieces (pipes, tanks, and wind pipes). Its function mainly used for assembly and welding of cylinders. Long axis Self Aligning Rotators can be designed as a whole or separately according to customer needs.
Products specification
|
No. |
Item |
Technology |
|
1 |
Brand |
Lemar |
|
2 |
Model |
CZG-20T |
|
3 |
Input power |
380V |
|
4 |
Loading capacity |
20T |
|
5 |
Suitable workpiece diameter |
Ф600-4000mm |
|
6 |
Suitable workpiece length |
12m |
|
7 |
Drive motor |
2-0.75KW |
|
8 |
Roller diameter |
219mm |
|
9 |
Roller wall thickness |
10mm |
Products Description
Premium raw materials
Combination of steel wheel and polyurethane wheel is not easy to degumming
Control System
Components are from well-known brands, equipped with foot switch, manual box and 15-meter control cable
Boring machine correction
Rotator is leveled by planer and boring machine, and the installation port is not biased
Products features
1. Length optional, 3m, 6m, 12m, 20m.
2.Loading weight:5-20T
3. AC motor drive, two Self Aligning rollers drive simultaneously
4. Reliable speed adjustment and quick centering
5. Center distance is adjustable
6. Suitable for manual welding and automatic welding
