Company details:
Wuxi Lemar Machinery Equipments Co.,Ltd adheres to the business philosophy of "quality as the basis, innovation as the foundation, and service as the life", and vigorously develops automatic welding equipment and CNC cutting equipment. Our products serve H-beam welding assembly and correction, pipe welding and cutting, tank welding and cutting, and other industries.
With the quality policy of "technological innovation, excellent creation, customer first, continuous improvement" and the business philosophy of sincerity and win-win, the company provides excellent products to our customers. Our customers are from more than 40 countries around the world. Your satisfaction is The goal we constantly pursue. You are welcome to send us drawings, call us to customize, and discuss business!
Product description

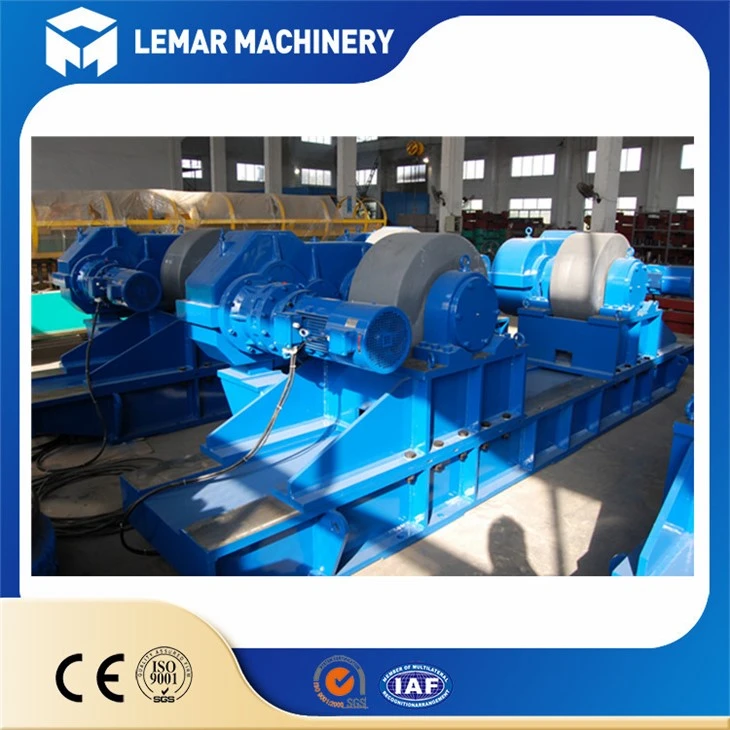

80Ton Pipe Welding Rotary Rollers equipment is a common mechanical welding auxiliary equipment in the factory workshop of large cylindrical workpieces.
It can work together with the welding manipulator and TIG MIG welder to complete the automatic welding of circular pipe fittings.
It reduces manual work and enables precise pipe rotation at a preset speed, allowing welders to perform circumferential welding angles in the most appropriate way.
Product Specifications

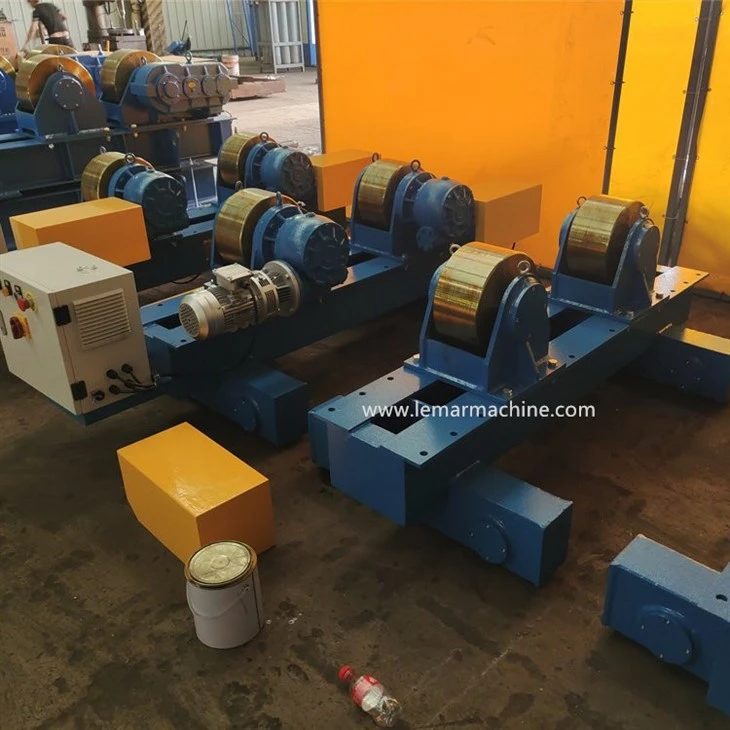

This is a type of welding rollers that adjusts the center distance through a screw rod. It uses screws to move the rollers in stages to adapt to changes in the diameter of the workpiece. Reliable quality, simple operation, self-protection function, and can leave a linkage interface at the electrical box to connect to the control system of the welding manipulator machine to realize automatic welding function
KTG-80 | |
Max load weight(kg) | 80000 |
Metallic Wheel | Diameter(mm) 494 |
| Width(mm) 60 | |
Rubber Wheel | Diameter(mm) 500 |
| Width(mm) 120 | |
Cylinder D | Min.D 850 |
| Max.D 5000 | |
Roller linear speed(m/h) | 6-60 |
Motor Power | Single Driver(kw) 4 |
| Dual-driver(kw) 2*3 | |
Way of setting | AC Frequency conversion stepless regulation |
