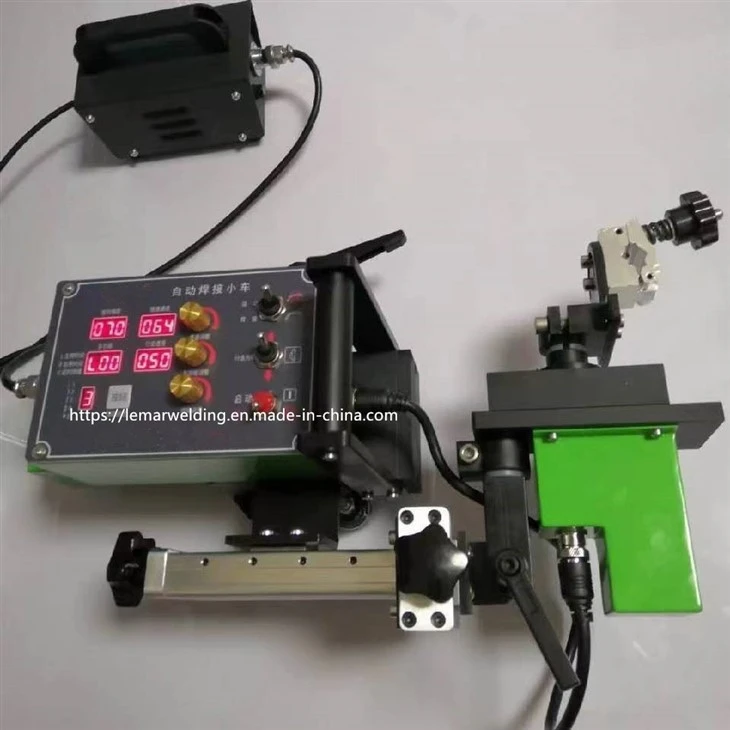

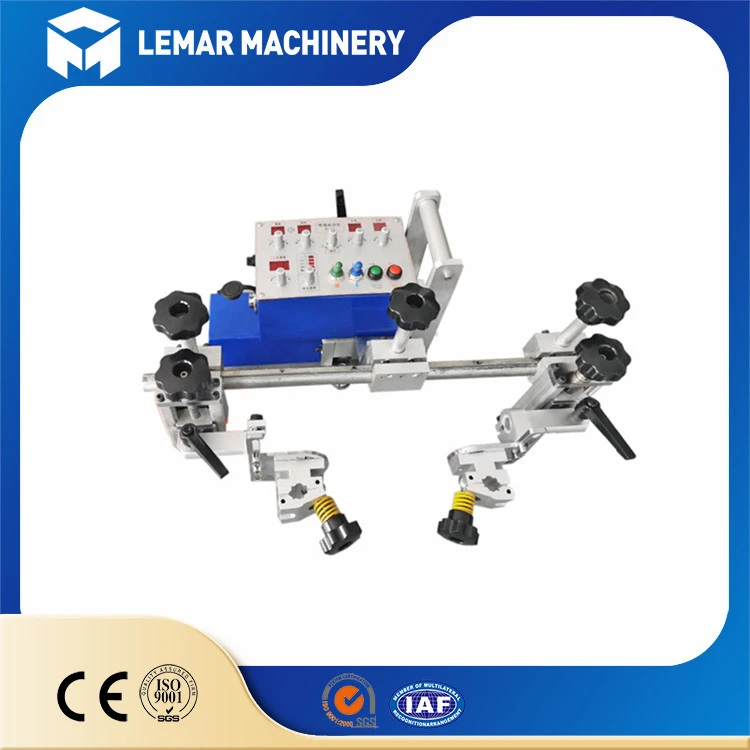

Welding Travel Carriage

All-position pipeline welding and cutting carriage is an arc welding machine that travels on a track driven by a rack and pinion method.

It can complete automatic welding such as flat welding, vertical welding, and fillet welding.

As a portable and movable automatic welding carriage, it can not only weld and cut on flat plates, but also on curved plates, pipes and tanks, making it the best choice for medium-thick plates.

Welding carriage moves and positions by mounting the track on the rails.

Rails should be easy to assemble and disassemble and easy to position.

Products parameters

Item		Details	Note
External power supply		AC 220V 50HZ	Voltage±10%
Operating Voltage		AC 20V	For each driver
ambient temperature		-20~+60℃	dry bulb temperature
environment humidity		0-90%	Relative humidity
Drive mode		gear drive	Host walking
Welding speed		0-990mm/min	digital display
The thinnest adsorption thickness		3mm	Magnetic metal
Welding gun adjustment range	up and down	Adjust the slide table up and down	Adjust the slide table up and down
	about	Host left and right slide rails	Host left and right slide rails
	Swing angle	The oscillator can rotate	The oscillator can rotate
	Progress angle	Welding gun nozzle travel angle	Welding gun nozzle travel angle
	swing form	Straight swing	Oscillator swing mode
Operation function	swing speed	0-100	Digital display simulation
	Stay left and right	0-3s	Digital display simulation
	swing width	0-30mm	Digital display simulation
	center compensation	±5mm	Digital display simulation

Products details

Angle adjustable

Can perform fillet welding, overhead welding and flat welding

Work range

Especially suitable for welding medium and thick plateso

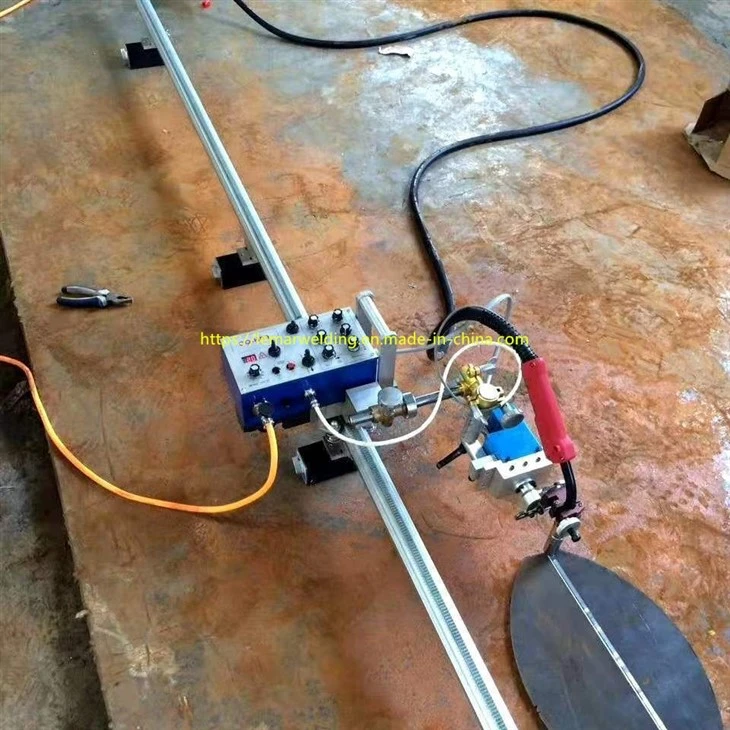

Rail type

Flexible Rail track and Rigid Rail track

Products application

FAQ

1.What are the benefits of using a portable welding carriage?
A:Welding carriage is higher than the original manual welding in terms of welding accuracy and welding efficiency. Portable type is more portable and mobile, making it convenient for outdoor operations

2.How to choose flexible rail and Straight rail?

A:Both of these two rails are available,you should choose according to your actual needs,especially refering to your tank and pipe specifications.

3.Which kind of welding position are available on this pipe welding carriage?

A:Five positione are available:Horizontal welding\vertical welding\overhead welding\fillet welding\break welding.

4.Can the welding data be adjusted?

A:Various swing parameters such as swing mode, swing amplitude, swing speed, swing center position and left and right dwell time can be adjusted.

5.When I can get it after payment?

A:Most of Welding Travel Carriage models we have in stock,we can also produce customized size regarding to your request,5-7 days is enough.
