Introduction

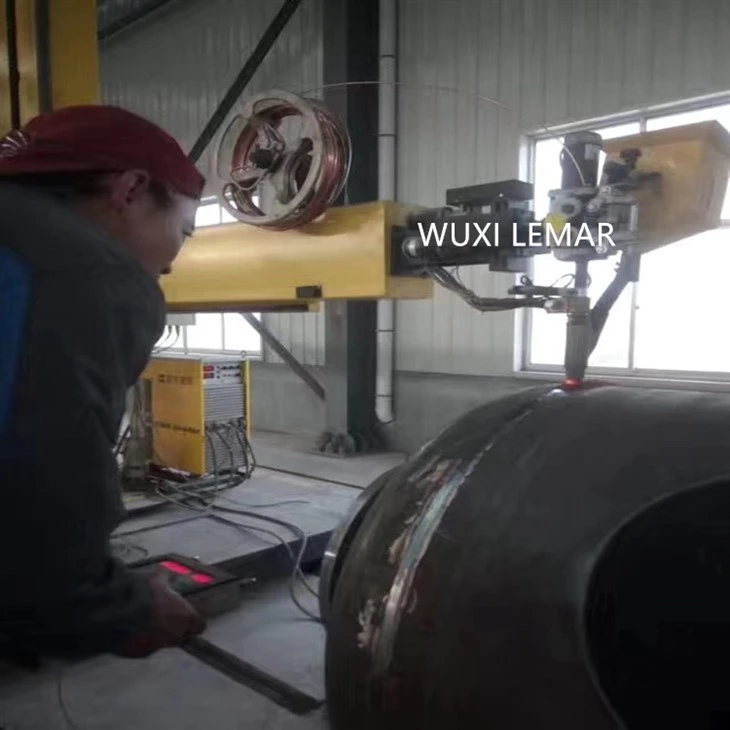

The manipulator designed and manufactured by our company absorbs the advantages of similar products at home and abroad, and is designed and manufactured according to user requirements. Automatic Arc Welding Manipulator Machine is used for automatic welding of metal cylinders and rotating workpieces. It is the necessary equipment for manufacturing pressure vessels and pipelines. It has the advantages of advanced technology, reliable quality and simple operation.
Equipment composition
1. Welding manipulator (mobile type)
2. MZ-1000 submerged arc welding machine
3.HGK-20 adjustable turning rolls(1 drive + 1 idle)
4.Flux recovery machine YS-HS150A
5.Weld trackers system
6.Monitoring Equipment
Introduction to the performance characteristics of rotary welding manipulator:

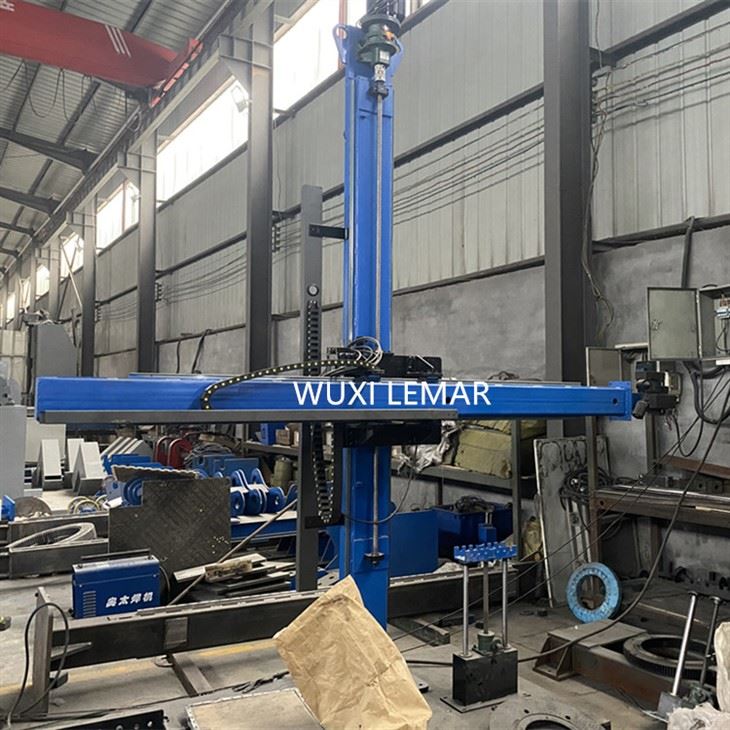

1. The columns and beams adopt a steel plate profile structure and a flat guide rail design, which has good rigidity and low deflection under the structure.
2. The beam is lifted and lowered using AC motor constant speed operation, which ensures smooth and even lifting.
3. The measurement of expansion and contraction adopts AC frequency conversion stepless speed regulation, constant torque output, and stable speed. The guide rail is made of No. 45 steel, which is stress-relieved after welding and planed to form. It has high strength and good stability, and can ensure no deformation for a long time.
4. The beam expansion and contraction adopts rack and pinion transmission, which has high transmission precision and smooth operation. The speed is digitally displayed and can be preset.
5. The lifting and lowering of the beam, the telescopic beam and the advance and retreat of the underground car are all equipped with electronic and mechanical double protection devices.
6. It adopts high-quality slewing bearings, with flexible rotation and long service life.
7. Using plastic drag strip wiring technology, it is durable, convenient, beautiful and safe.
