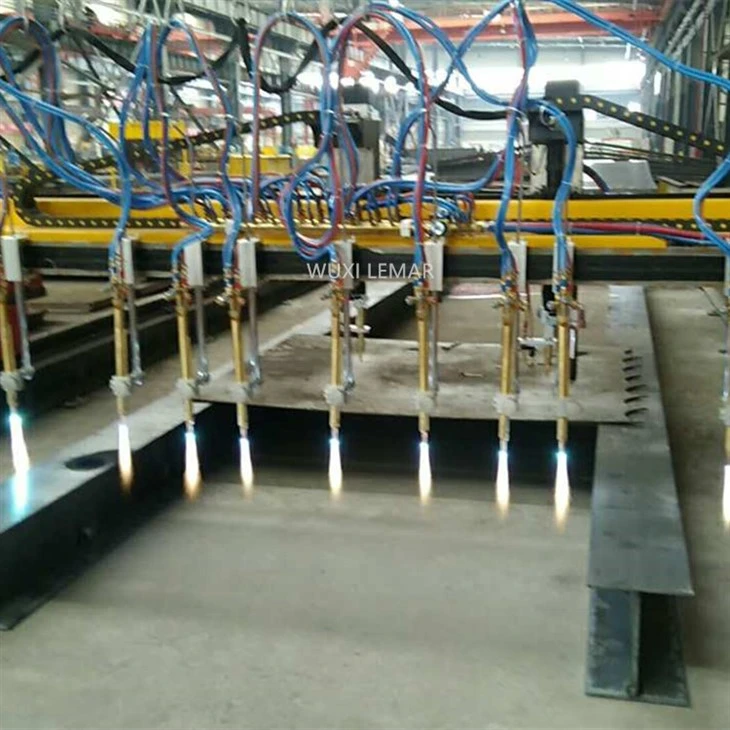

CNC Gantry Plasma Cutting Machine
Products parameters
Transverse gauge (mm):4000-6000 (or more customized)
Effective cutting width (mm):Double torch gauge 4100
Longitudinal rail gauge (mm):14000 (or above optional)
Effective cutting length (mm):Longitudinal rail length 5000
Flame cutting torch (group):2
Flame cutting thickness (mm):6-200
Plasma power cutting torch (group):Optional according to user needs
Plasma cutting thickness (mm):Depends on the power of the optional plasma power supply
Cutting accuracy:±0.3mm
Idle speed of the whole machine (mm/min):6000-9000, up to 12000
Position accuracy:±0.2mm
Flame cutting speed of the whole machine:100-750mm/min
Repeatability:±0.2mm
Plasma cutting speed of the whole machine:100-4000mm/min optional accessories
Products specification
Application
Heavy Industry: Cutting of structural parts of construction machinery and mining equipment.
Transportation: Processing of ship decks, truck frames, and track components.
Construction field: Forming of steel structural beams and metal roof panels.
Art and decoration: Metal sculpture, advertising sign production.
Selection Suggestions
Power Selection: Match the power of the plasma power supply according to the material thickness (such as 20mm steel plate needs more than 120A power supply).
Table Size: Choose according to the commonly used plate size (such as 4m × 2m or more).
Gas Type: Air cutting cost is low, and mixed gas (such as nitrogen + hydrogen) is optional for high precision requirements.
Brand Reference: Hypertherm, Lincoln Electric, ESAB, etc. are leading brands in the industry.
