Product description

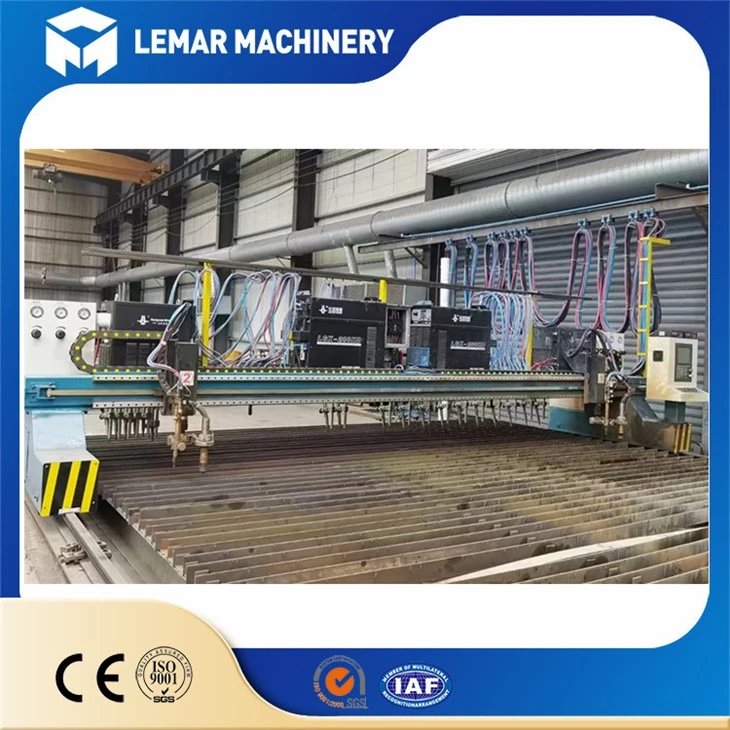

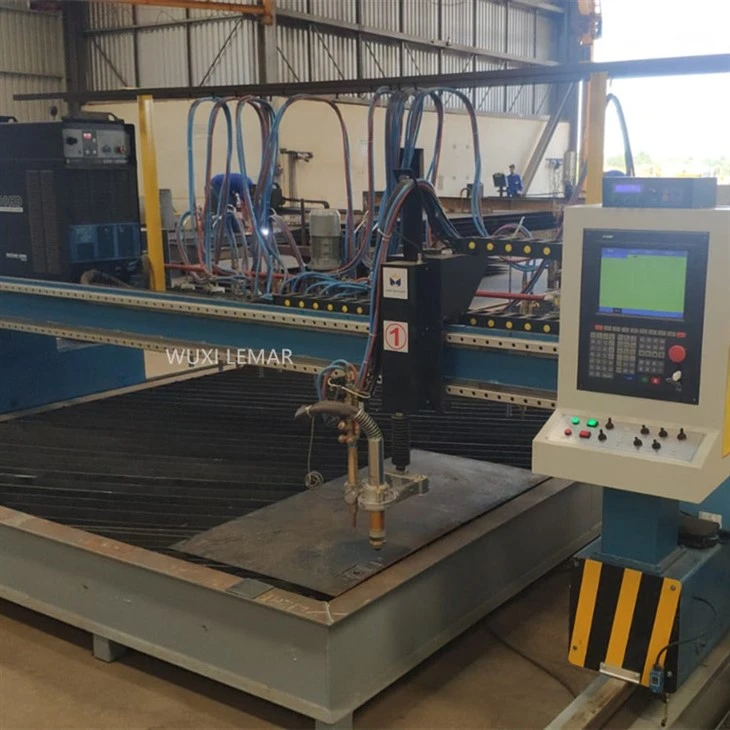

Steel Gantry CNC Plasma Cutting Machine is a kind of computer digital program control, so that the power drive system, mechanical actuator, cutting processing mechanism, etc. work in accordance with the processing procedures, through the combination of precision mechanical transmission, oxygen and gas cutting technology. High-reliability equipment for continuous and automatic thermal cutting of various plates with complex shapes. It can accurately cut various complex shapes of plates.
Product quality implementation standards:
Implement ISO9001-2008 standard;
Machine accuracy: in line with JB/T5102-1999 standard;
Air tightness of the whole machine: in line with JB/T5101-1999 standard;
Cutting quality and dimensional accuracy: flame-in line with JB/T10045.3-1999 standard;
Plasma-in line with JB/T10045.4-1999 standard;
Specification:
Model:CNC-3000
Driving form:Single side
Rail:3000mm
Effective cutting width:2100mm
Cutting thickness:6-200mm flame
Plasma cutting thickness:According to different plasma source
Warranty:1 year
Colour:Customized
Payment:L/C,T/T
Service Content
Training and installation, commissioning, simple packaging, one year warranty
User-supplied range
1.Equipment installation site;
2. Electric power supply and distribution box, 1 voltage stabilizer;
3. Piping configuration such as air supply and shut-off valve; 4. Cutting work platform;
5. I-steel bolster foundation construction;
6. Longitudinal air pipe and power cord hoisting and marking;
7. Trained personnel;
8. Cutting materials;
9. Oil-water separator (used when plasma is optional).
For the rest, the seller provides the drawings and the buyer is responsible for the construction.
