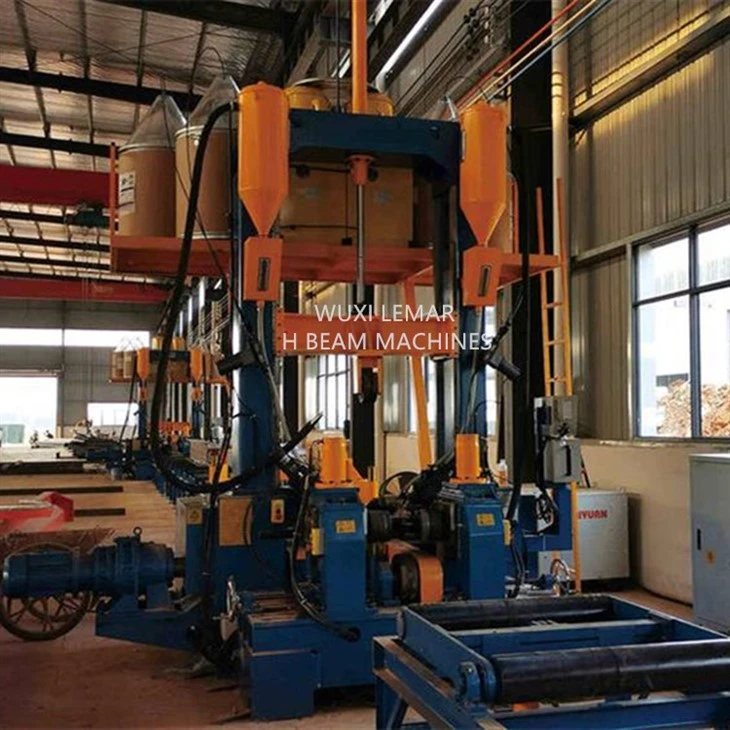

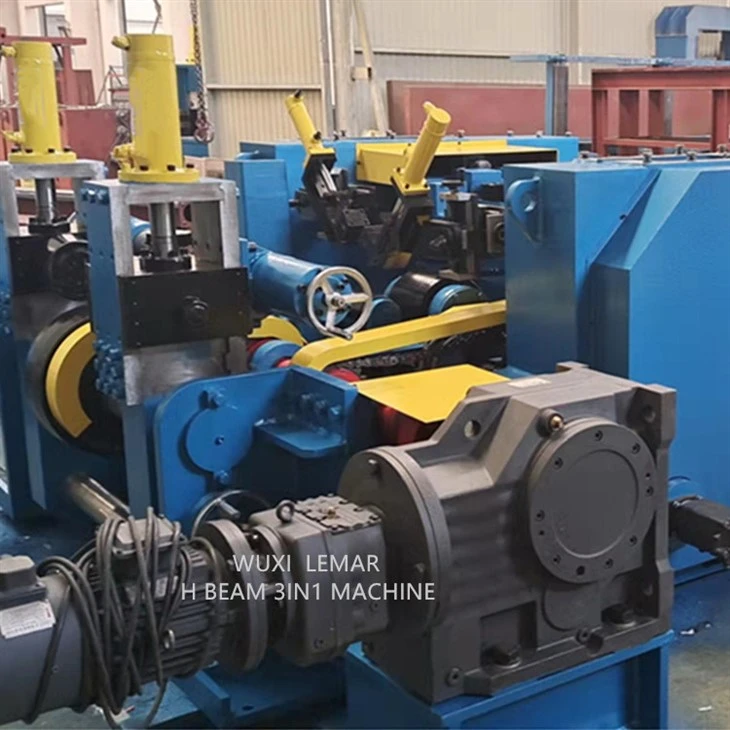

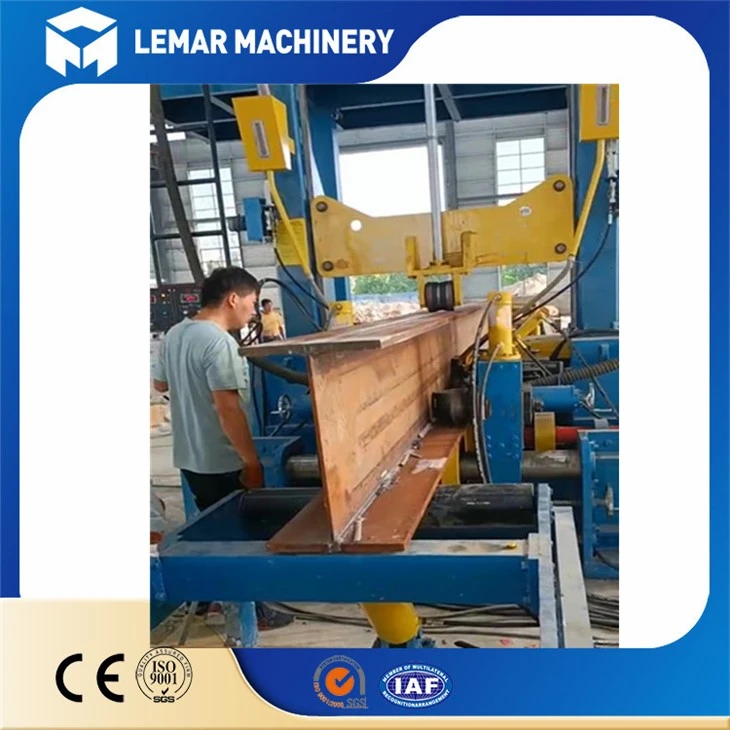

H Beam Assembling Welding Machine
H Beam Assembling Welding Machine is specially designed for the production of H-beam and T-beam industries. Two sets of gas shielded arc welding are provided on each side of the machine base. When assembling, there are four welding guns working together for spot welding. It also has multiple sets of flanges and web clamping wheels to ensure the position accuracy of the steel structure.
Products parameters
This machine can not only assemble left-right symmetrical H-beams, but also asymmetrical H-beams.
Model:ZL15
Web height:150-1500mm
Web thickness:6-32mm
Flange width:150-800mm
Flange thickness:6-80mm
Single beam weight:＜20t
Host power:5.5kw
Hydraulic power:5.5kw
Plc controller:Japanese
AC Drive:Taiwan
Contactor:Schneider
Welder:350 Gas welder
Conveyor:automatic and driver conveyor etc.
Products Display
FAQ
Q:Can you provide OEM services?
A:Yes,we do OEM machines often.
Q:Which countries have you exported to?
A:We have exported to India,USA,UK,Oman,Kuwait,Russia,Pakistan,Vietnam,Poland,etc.
Q:Can we visit your factory?
A:Sure.Our factory is near Shanghai Pudong Airport,we can pick you up when you arrive.
Q:After buying,what kind of service you can support?
A:All of our machines warranty are 1 year.We can send engineers for installation and online guidence.
If you have any questions you can contact us at anytime!
