Product Description

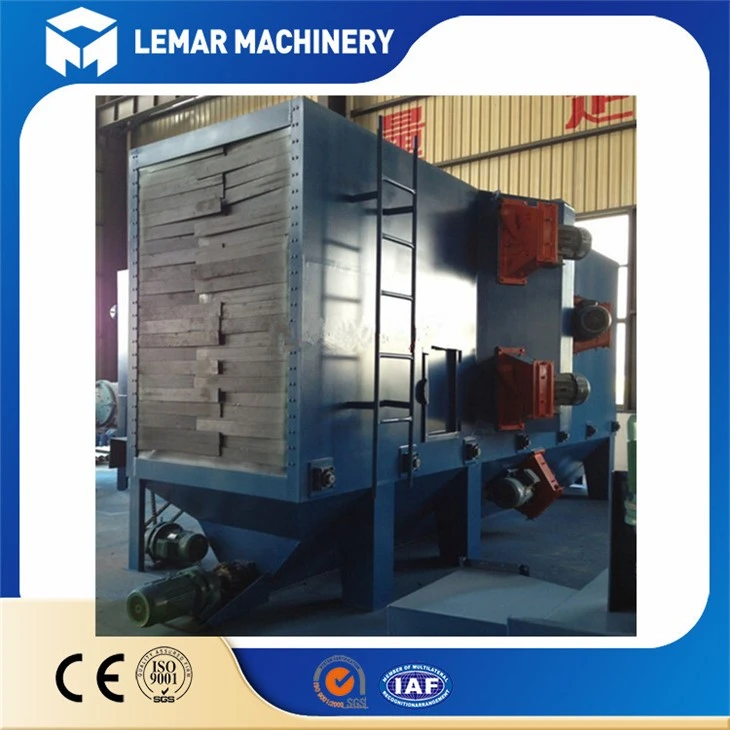

H Beam Roller Through Type Shot Blasting Machine is a heavy-duty shot blasting machine. The roller conveyor is composed of three parts: a feed roller, an intermediate roller and a discharge roller. The feed roller transports the workpiece to the middle roller of the shot blasting chamber, and the shot blasting device installed on the wall of the shot blasting chamber shot the workpiece. The discharge roller sends the blasting and finished workpieces out of the blasting chamber for unloading.
The feeding roller and the discharging roller are driven by a variable speed reducer. The speed of the roller can be adjusted according to the surface condition of the workpiece and the surface finish of the metal.
The machine structure includes：
Shot blasting work host
Shot blasting device (blade, blasting wheel, directional sleeve, etc., are all made of high wear-resistant materials)
Pill recycling purification system (including screw conveyor, bucket elevator, separator, conveying screw, etc.)
Feeding rack
Outlet rack
Feature
1. Designed for steel plates and structures of different sizes.
2. Multi-angle positioning of the impeller head is a high-efficiency shot blasting device, high-speed shot blasting to blow the surface, three-dimensional cleanin.
3. Quickly remove the rust layer, oxide layer and other dirt on the surface,
4. Make the surface a smooth surface, improve the adhesion of the paint to the surface, and improve the fatigue resistance and rust resistance of the surface.
5. Improve the inner quality of the surface and prolong the service life of the steel pipe.
6. By moving the impeller head to hit the rust layer, oxide layer and other dirt on the inner wall to make the surface smooth and improve the adhesion of the paint to the surface.
Steel shot:
Lifting bucket：
Shot blasting heads:(this machine is 10 heads sent to India)
This machine has been exported to South Africa,India,Pakistan,Vietnam,Oman,etc.
Except this machine,we also produce CNC Plasma cutting machine,ARC welding machine,End face milling machine,Shot blasting machine,Hydraulic straightening machine,Assembly machine,etc.
