Introduction

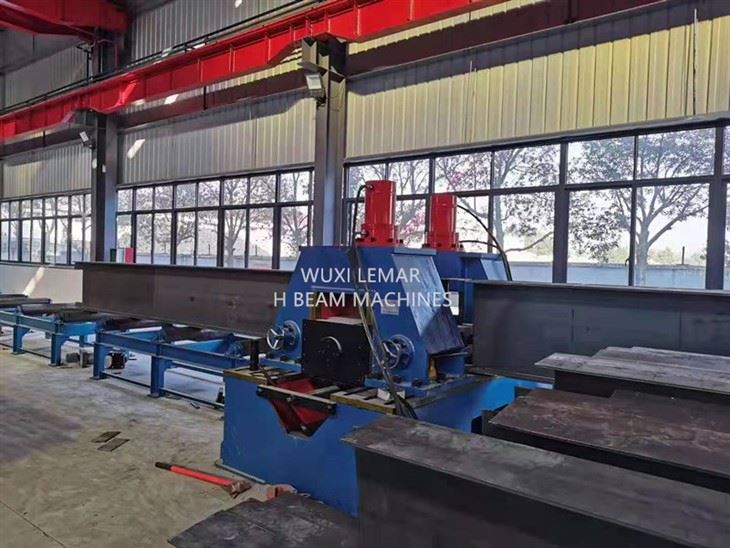

During the heating process of the H-beam, the flange plate is deformed due to the lateral shrinkage of the weld metal. H beam flange straightening machine is a special equipment for correcting the angular deformation of the beam flange after welding.
Specification:
Model:JZJ-100B
Flange thickness:≤100mm
Flange width:200-1200mm
Web height:≥500mm
Working speed:6.0m/min
Total power:50KW
Weight of machine:28tons
We do different size of H beam straightening machine.
Light steel Mechanical straightening machine:
JZJ-600 is for ≤20mm flange thickness straightening and JZJ-800 is for ≤40mm flange thickness straightening.
Heavy steel Hydraulic straightening machine:
YZJ-60B is for ≤60mm flange thickness straightening and JZJ-800 is for ≤80mm flange thickness straightening.
Also we can do 100mm flange thickness straightening machine for Heavy steel structure.

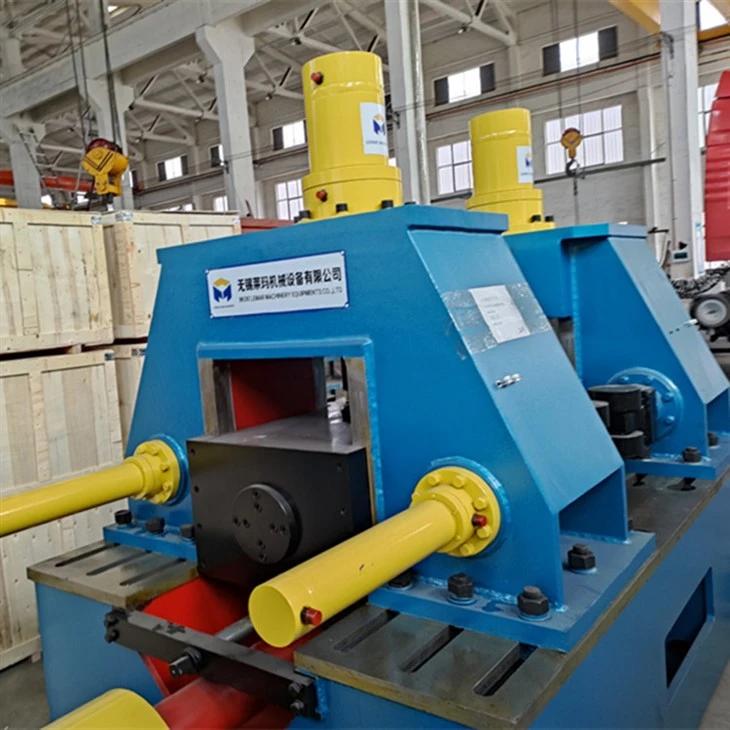

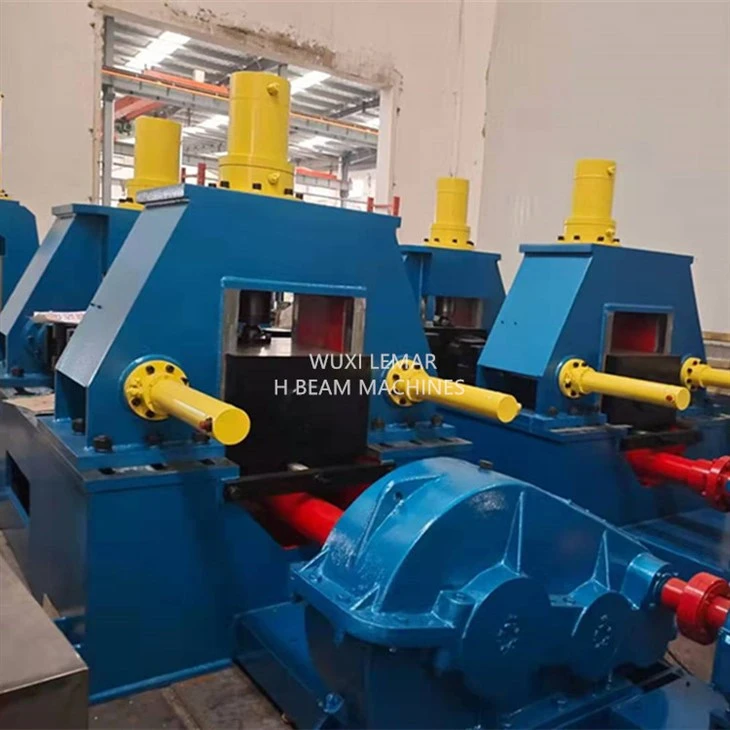

They all use hydraulic correction, and the main drive adopts cycloidal pinwheel reducer + gear reducer transmission, which is high efficiency and fast.
The straightening rods of the Flange straightening machine are made of alloy steel and have been heat treated to avoid the defects of cracks in the parts. The front and rear rollers are adjustable lifting type, and the design is more reasonable.
On the basis of fully absorbing the advantages of similar products at home and abroad, Wuxi Lemar Machinery Equipments Co., Ltd. is a modern scale enterprise that produces H-type production lines, welding auxiliary machines, straight and circular seam welding machines,welding rotator,welding positioners, CNC cutting equipment and other equipment strictly in accordance with the modern enterprise operation mechanism.Any need please kindly contact us!
