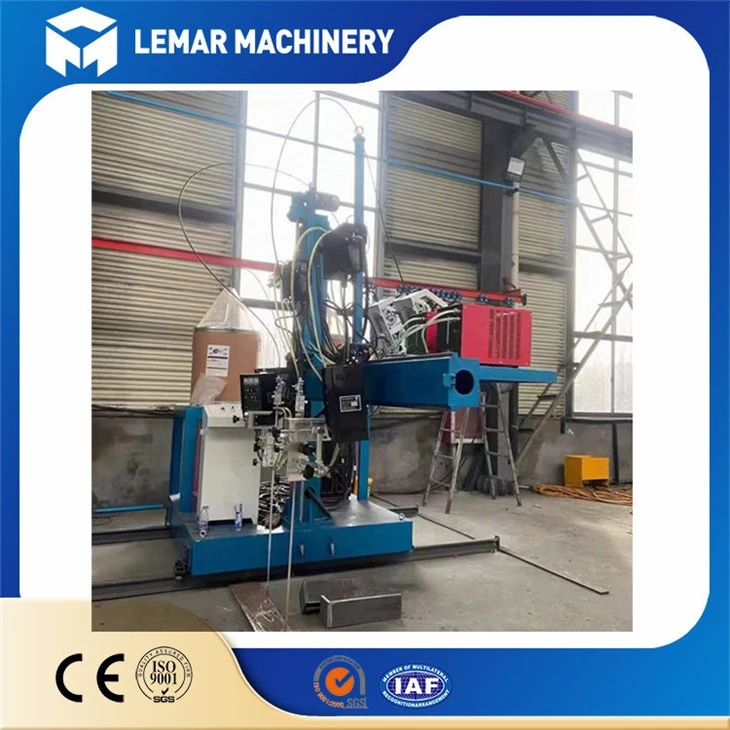

Cantilever Electroslag Welding Machine
In order to make the inner partition of the box girder and the surrounding of the box more tightly welded, when assembling the partition, two or four holes required for electroslag welding are reserved on the partition and the surroundings.
The box-shaped beam workpiece is transported to the cantilever vertical electroslag welding frame through the roller table, and the water-cooled fuse tube is adjusted by the micro-adjustment mechanism hung on the cantilever frame to vertically align the welding part of the workpiece for vertical electroslag welding.
There is a horizontal swing device that can be set to swing with the size of the molten pool, and vertical electroslag welding is performed on the reserved hole of the workpiece, and the cantilever frame can move freely in the length direction of the workpiece.
Products parameters
|
Name--Box beam Cantilever Electroslag Welding Machine |
Specification |
|
Rail width |
1.5m |
|
Applicable box beam size (width) |
300-1500mm |
|
Applicable box beam size (high) |
300-1500mm |
|
Applicable box beam length |
15m |
|
The stroke of cantilever car |
According to effective stroke 15000mm beam length |
|
Maximum moving speed of cantilever cars |
3m/min |
|
Applicable welding wire diameter |
1.6mm |
|
Water -cooled system flow |
8 L/min |
|
Water cooling system |
10 m |
|
The total power of the whole machine (without welding power supply) |
2 KW |
Products Details
Scope of cantilever electroslag welding supply:
Walking trolley, lifting beam, walking mechanism, welding head clamping mechanism, welding wire barrel, wire feeding tube accessories, electrical operation box, etc.
Electroslag welding machine includes: fuse type electroslag welding device, swing device water-cooled wire feeding pipe, reverse pumping device, welding power supply, cooling water tank, wire feeder, welding control box, control cable, water pipe, conduit, welding cable, machine 2 sets of head fine-tuning mechanism (including swing device), etc.
