Machine specification
H-beam height 200-1500 mm
Wing width 200-800 mm
Wing plate thickness 6-40 mm
Web thickness 6-32 mm
Gantry gauge 4000 mm
Track length 18000 mm
Welding speed 0.15-1 M/min (according to the welding process)
Return speed 3 M/min
Welding arm lifting stroke 700 mm
Welding method Ship type welding
Welding power source: 2 sets of ZX5-1000 submerged arc welding power source
Feature
H Beam Auto Welding Machine has the characteristics of high strength and low quality, and can construct some large-span, heavy-duty structural buildings. This is something that some concrete structures and brick-concrete structures do not have. It can effectively reduce construction costs and shorten the construction period during use.
Advantage

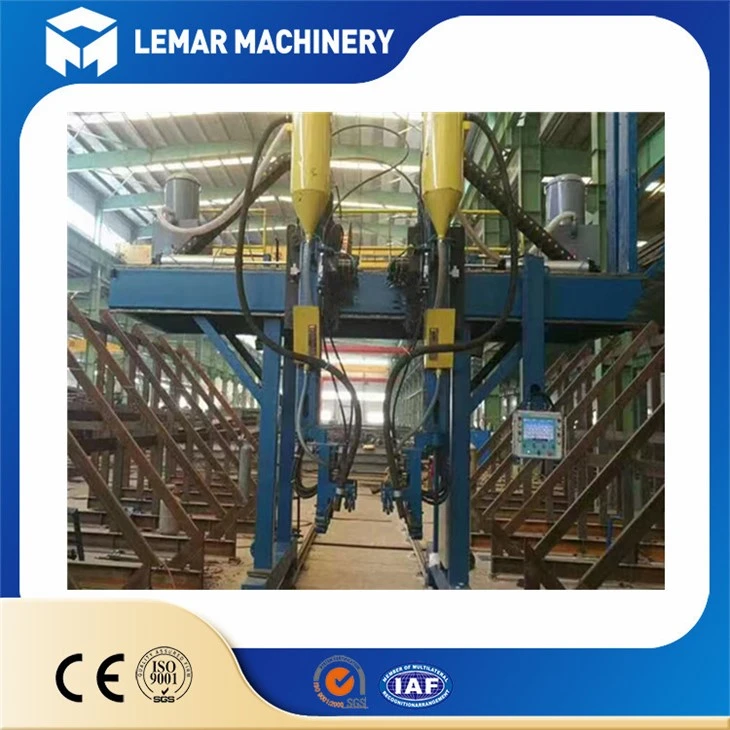

The H Beam Auto Welding Machine is developed by our factory based on the particularity of H-beam welding and combined with our company's years of technical experience in the development of welding equipment.
It has the advantages of simple and reliable structure and reasonable layout. Its main drive adopts imported AC frequency converter to control bilateral synchronous speed-regulating transmission, with stable speed, digital display of linear speed, and good reliability. It is equipped with a three-axis mechanical tracking arc guide mechanism, the cylinder tracks up and down, and floats tracking left and right to ensure The welding torch is accurately aligned with the welding seam.
The submerged arc welding power supply is set on the gantry to move with the car, so that the welding machine control cable and the welding machine cable are short, the feedback performance is good, the response speed is fast, the voltage drop is small, and the welding current is accurate and stable.
Welding control and gantry control are integrated linkage control, which is convenient and reliable to operate. The welding arm cable connection adopts imported drag chain form, which is beautiful, reliable and safe.
