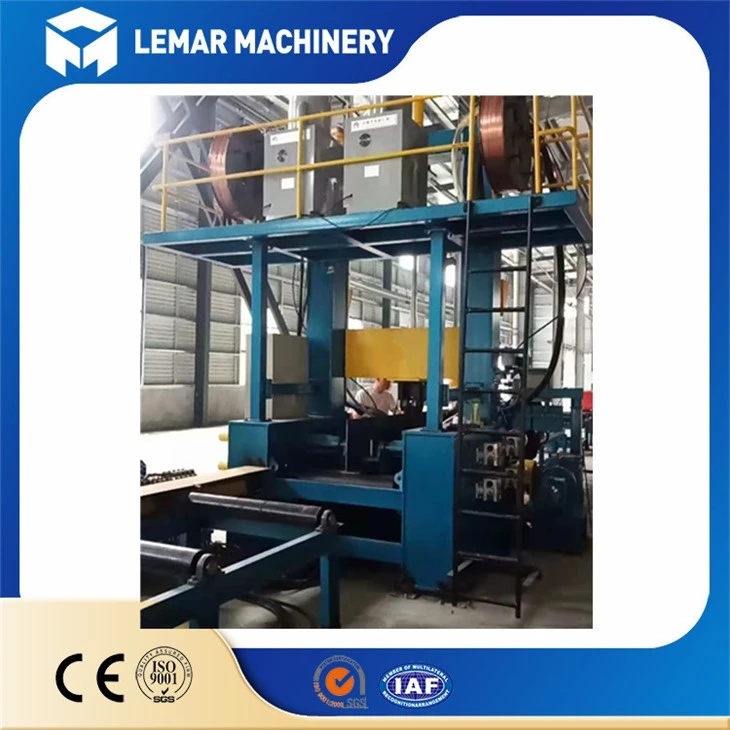

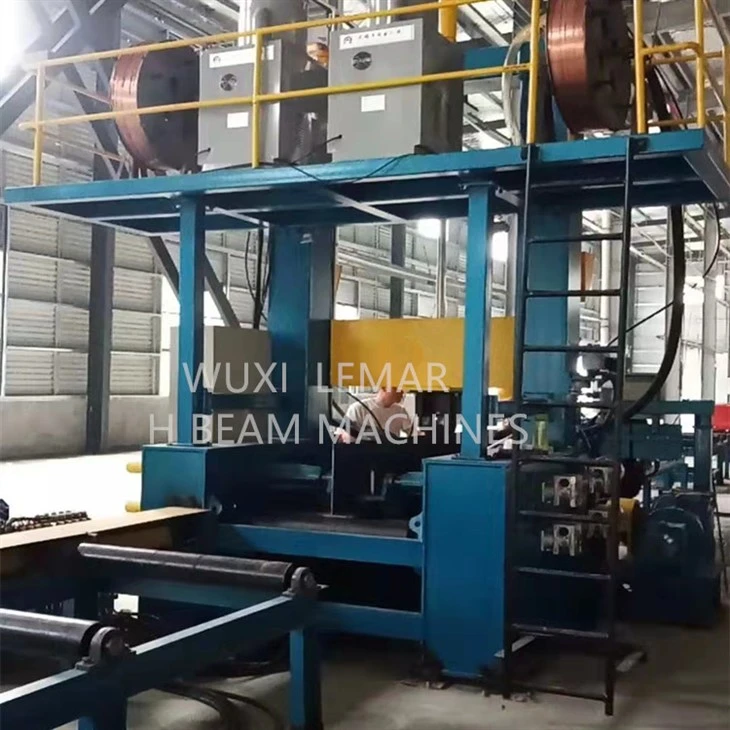

Integrated H beam automatic welding machine(Auto assembly machine,Auto arc welding machine and straightening machine together) is a special equipment for steel structure manufacturer to assembling, welding and straightening H Beam. It combines three processes of precise assembling, welding and flange straightening after welding deformation in one equipment. It has compact structure, small area, fewer operators and remarkably improves the efficiency. It is an intelligent, effective, ideal equipment to produce light H beam steel structure beams.
Specificatiions:
Flange width | 200-800mm |
Flange thickness | 6-20mm |
Web height | 280-1200mm |
Web thickness | 6-16mm |
Welding speed | 300-1500mm/min |
Maximum moving speed | 3000mm/min |
Adjust mode of moving speed | inverter control |
Clamping Mode Of Flange And Web | Synchronously Centered By Hydraulic |
Straightening Mode | Hydraulic And Downward Pressure Type |
Input Auto Drive Roller Table | 2.6 Meters Per Set, Two Sets |
Input Roller Table | 2.6 Meters Per Set, one Sets |
Flange And Web Pre-Centering Device | Three Sets |
Output Auto Drive Roller Table | 2.6 Meters Per Set, Two Sets |
Output Roller Table | 2.6 Meters Per Set, One Set |
Main Motor Power | 3.7kw |
Hydraulic Station Motor Power | 5.5kw |
Input Roller Table Motor Power | 2×0.75kw |
Output Roller Table Motor Power | 2×0.75kw |
Flux Recovery Machine Motor Power | 2×3kw |
Submerged Arc Welding Machine | Two Sets |
Flux Recovery Machine | Two Sets of flux recovery system |
Welding Cable Specification | YH-95 |
