H Beam Welding Production Line
Product Introduction
H Beam Welding Production Line is also named Integrated H Beam Automatic Welding Machine.
H Beam steel structure Auto Assembly Straightening and welding machine is a special equipment for steel structure manufacturer to assembling, welding and straightening H Beam. It combines three processes of precise assembling, welding and flange straightening after welding deformation in one equipment. It has compact structure, small area, fewer operators and remarkably improves the efficiency. It is an intelligent, effective, ideal equipment to produce light H beam.
Products Parameters
|
Web height |
200~1000mm |
|
Web thickness |
6~16mm |
|
Flange width |
200~800mm |
|
Flange thickness |
6~20mm |
|
Work-piece length |
6000~15000mm or as user's request |
|
Assembly and welding speed |
0.35~3m/min |
|
Main machine power |
17.5kW |
|
Roller conveyor motor power |
0.75*4=6kW |
|
Flux recycling machine motor power |
3*2=6kW |
|
Pump station power |
4kW |
|
Welding source power |
69kW*2=138kW |
|
Above are our standard model, it can be designed and manufactured according to customer's request. |

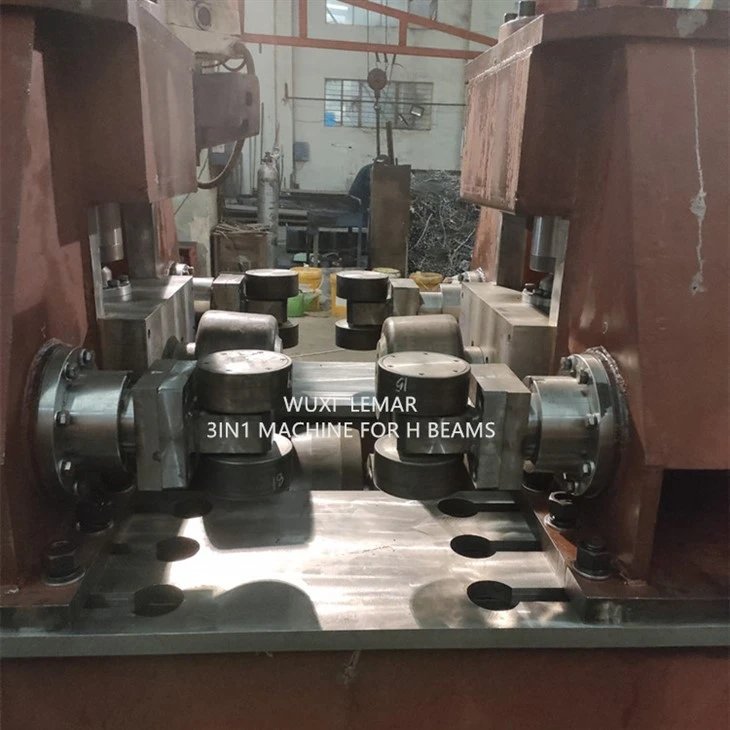

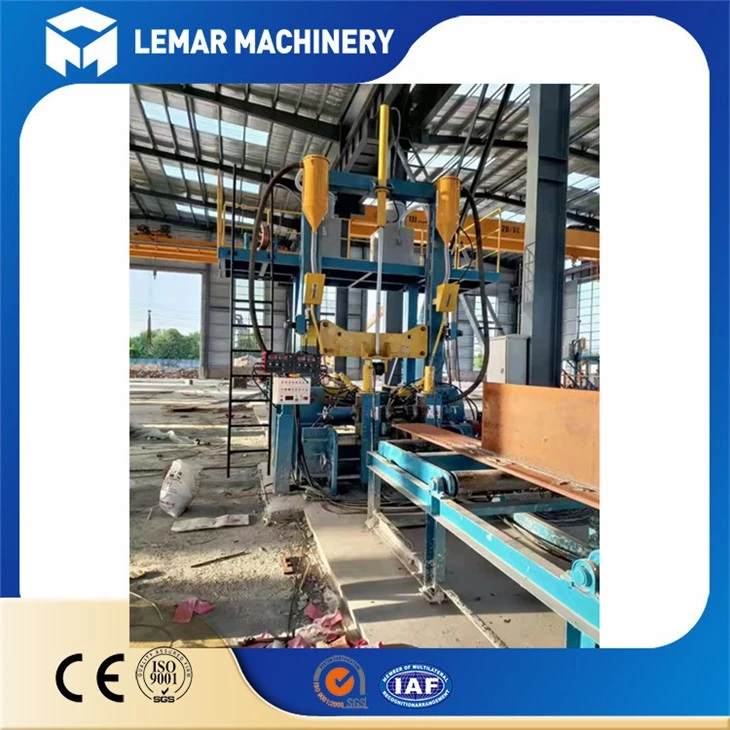

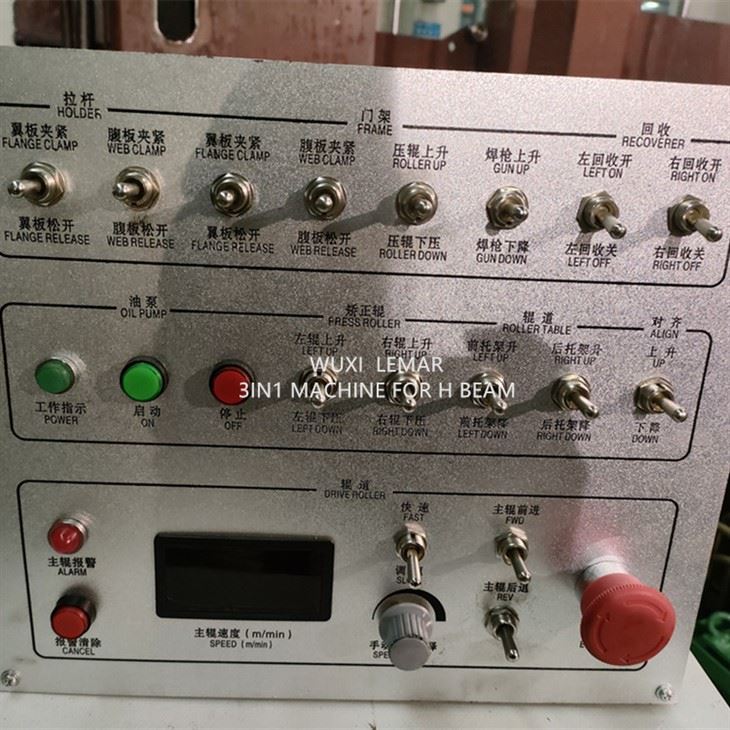

Products Display
Operation flow example
Enter plate parameters (thickness, length) into the control system.
Start the production line and automatically complete uncoiling, cutting and assembly.
During the welding process, the current and voltage are monitored in real time to adjust the welding speed.
Output the finished product and mark the batch number for random inspection (e.g. ultrasonic flaw detection)
Maintenance points
Regularly clean the welding gun nozzle to prevent splash clogging.
Check the assembly machine positioning accuracy, to avoid alignment deviation caused by welding seam deviation.
Calibrate laser detectors and sensors to ensure data reliability
