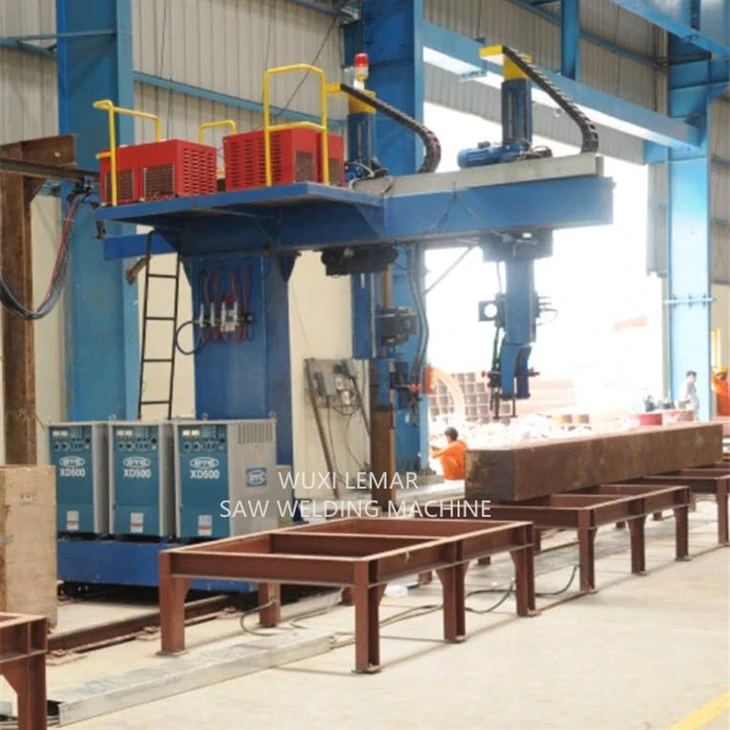

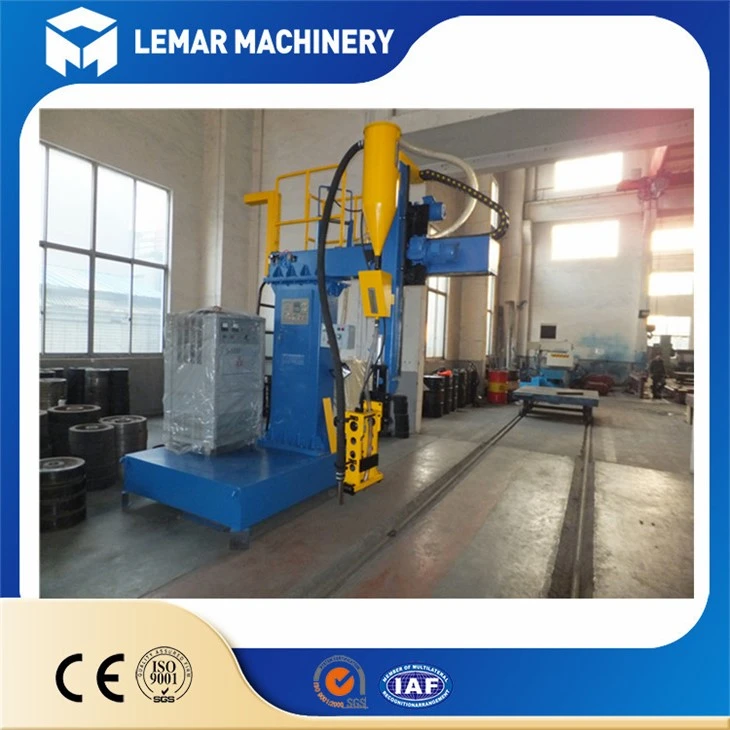

Product description
This XBH series Cantilever welding machine can be Single arc single wire or double arc double wire.Can be customized according to customer requirements
Specifications
Flange width:200-800 mm
Web height:200-2000 mm
Length:4000-15,000 mm
Welding speed:0.15-1.5 M/min
Return speed:4.5 M/min
Platform car gauge distance:1,150 mm
Welding power Panasonic Kaiyuan 1250 AC power supply
Feature
1. According to the H BEAM Cantilever welding machine manual, be familiar with the cantilever welding machine structural characteristics and operation adjustment methods of each component, and be able to use a submerged arc welding machine.
2. Perform trial operation on seam welding machine, familiarize yourself with the buttons, confirm whether each part is operating normally, adjust various welding parameters, and make various preparations before welding.
3. Set the function selection button on the right operation box of the gantry to the "adjust" position, turn on the back button to retract the gantry to the rear end, and place the assembled two shaped steels on the workpiece bracket (user-made) , The welding seam faces upward into a boat-shaped welding position.
This H BEAM Cantilever welding machine can perform single-piece welding or two-piece simultaneous welding on section steel workpieces.
