Product Description

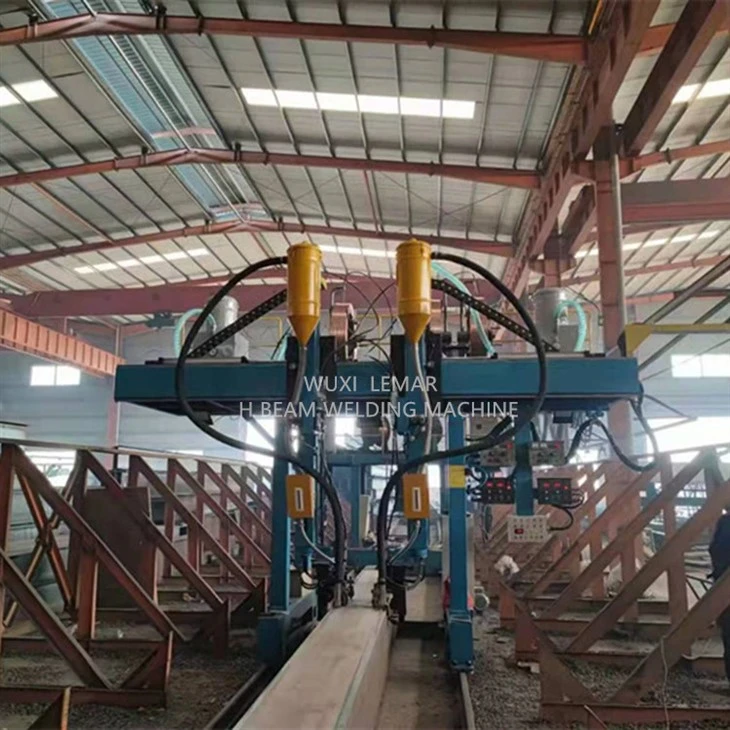

T Type Submerged Arc Welding Machine is specially designed for H-beam welding. The combination of welding control and trolley control is realized, and the operation is simple. Driven by AC converter, stable speed, linear speed digital display, good reliability, floating tracking, to ensure that the welding torch is accurately aligned with the welding seam. The submerged arc welding power cord can be moved on the gantry to shorten the length of the control cable and welding cable as much as possible to speed up the response speed, reduce the pressure, and stabilize the welding current.
Product specification:
≤600mm
| Model | LMH-1500 | LMH-1800 |
| Input power | AC 3P 380V 50HZ | AC 3P 380V 50HZ |
| H beam Web height | 200-1500mm | 200-1800mm |
| H beam Web thickness | 6-32mm | 6-32mm |
| H beam Flange width | 200-600mm | 200-800mm |
| H beam Flange thickness | 6-40mm | 6-40mm |
| Variable section slope | ≤15° | ≤15° |
| Web height difference | ≤600mm | |
| H beam length | 4-15m | 4-15m |
| Rail length | 18m | 18m |
| Max moving speed | 2.5m/min | 2.5m/min |
| Welding wire capacity | 100KG*2 | 100KG*2 |
| Flex recovery capacity | 50L*2 | 50L*2 |
| Wire diameter | 3-5mm | 3-5mm |
| Welding source | 1250*2 sets | 1250*2sets |
| Oversize | 2800*4800*3400mm | 3300*6500*3700mm |
Wuxi Lemar Machinery Equipments Co., Ltd. has an experienced scientific research and development team with profound industry background. Our products cover CNC cutting and H beam automatic production welding, ferrous and non-ferrous metals and alloys, thick plates and thin plates, pipes, and methods. Lan's cutting and welding are used in almost all fields, and its application industries include energy, chemicals, heavy machinery, metallurgy, transportation, engineering machinery, military industry, aerospace and other industrial categories. Over the past two decades, our products have served various key engineering and industrial fields in the country, replacing imports in large quantities and exported to all over the world.
