Product description

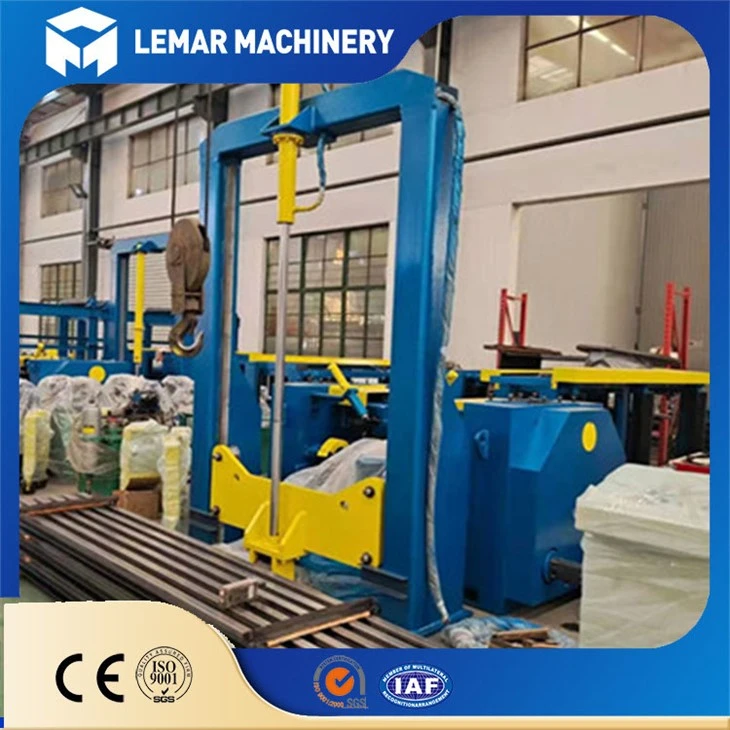

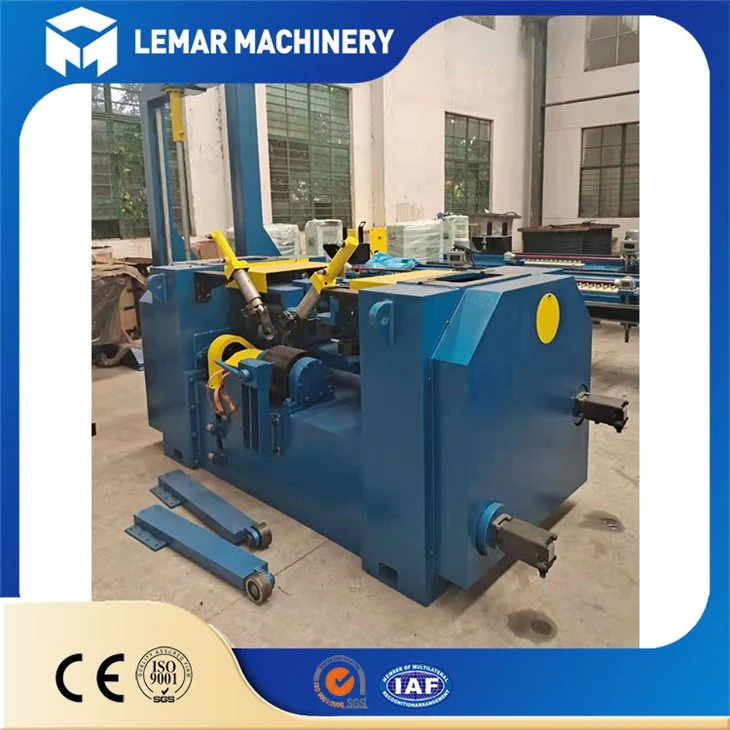

Automated H Beam Assembling Machine is composed of a door frame assembly, a pull rod system assembly, a main transmission assembly, an input roller assembly, an output roller assembly, a hydraulic system assembly and an electric control box assembly.
H Beam Assembly Machine Model No.Z25
Web Height: 160-2500mm
Web Thickness : 6-40mm
Flange width : 150-1200mm
Flange Thickness: 6-60mm
Specifications:
Z-25-H Beam Assembling Machine | ||
No. | Item | Detail |
01 | flange width | 150-1200mm |
02 | flange thickness | 6-60mm |
03 | web height | 160-2500mm |
04 | web thickness | 6-40mm |
05 | assembling speed (much faster than other suppliers) | 0.5-6M/min |
06 | adjust mode of assembling speed | invert control |
clamping mode of flange and web | synchronously centered by hydraulic | |
08 | hydraulic auxiliary web centering device | one set |
09 | input Auto drive roller table | 2.6 meters per set, two sets |
10 | input driven roller table | 2.6 meters per set, one set |
11 | flange and web pre-centering device | three sets |
12 | output Auto drive roller table | 2.6 meters per set, two sets |
13 | output driven roller table | 2.6 meters per set, one set |
14 | main motor power | 7.5kw |
15 | hydraulic station motor power | 5.5kw |
16 | spot welding type | automatic |
Feature
The main components of the Automated H Beam Assembling Machine are welded structures with high strength and light weight. All important parts have undergone stress relief treatment and are not easily deformed. The positioning of the h-shaped steel assembly machine is driven by the hydraulic system. First, it is initially positioned through the tie rod system, and then is precisely measured and clamped through the door frame assembly. The whole process is centrally controlled by the button station of the electric control box. Easy and convenient, accurate positioning. Positioning, speed, and clamping force depend on the profile steel specifications and operating proficiency. The billet needs to be adjusted arbitrarily. The group speed adopts infinitely variable speed, and the conveying speed is arbitrarily selected within the range of 0.5-6m/min.
Advantage
1. Efficiency: The automated assembly process can greatly improve production efficiency and save human resources and time costs.
2. Accuracy: Through precise control systems and measuring devices, it is ensured that the position and angle of each H-shaped steel component can be accurately assembled together.
3. Flexibility: The machine can be adjusted and adapted according to different needs and requirements, and is suitable for H-beams of different specifications and sizes.
4. Safety: Automated machines can reduce risks and dangers in manual operations and improve work safety.
5. Reliability: Use high-quality mechanical and electrical components to ensure the stability and reliability of the machine.
